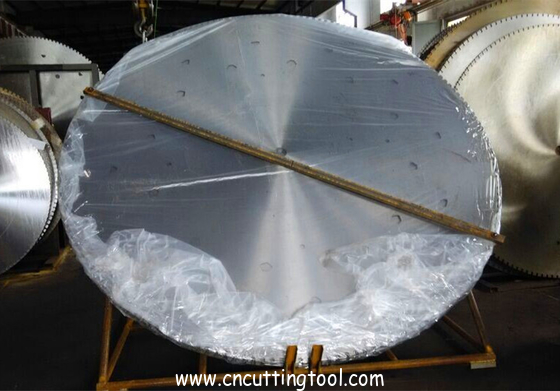

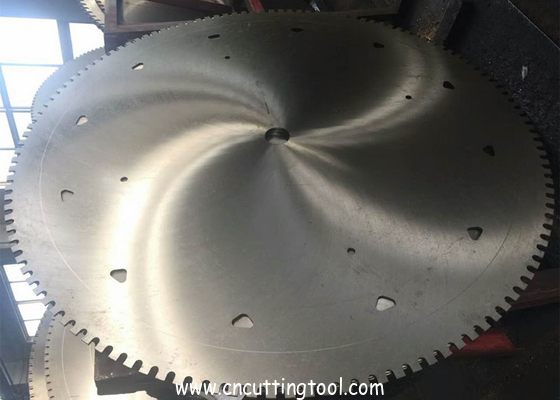

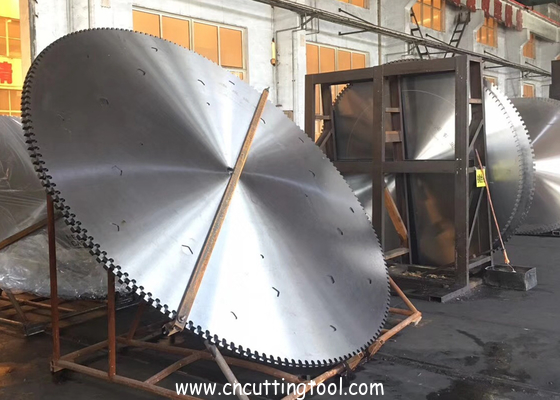

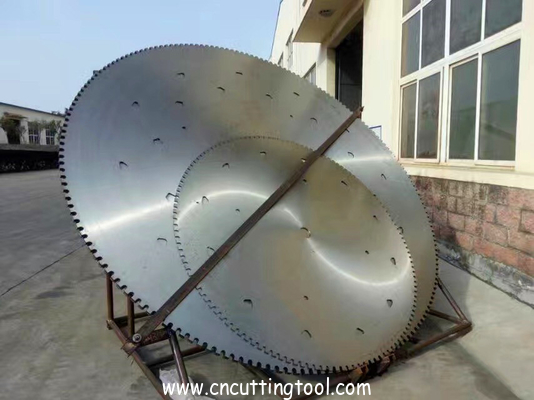

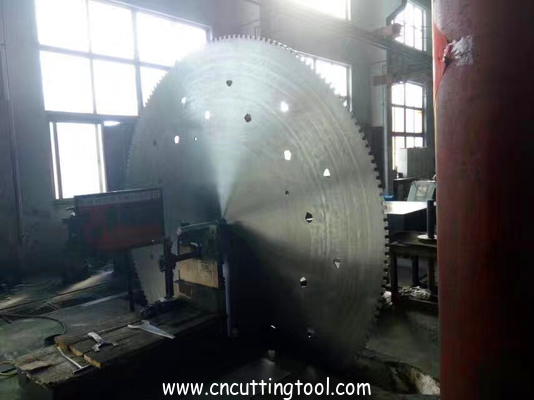

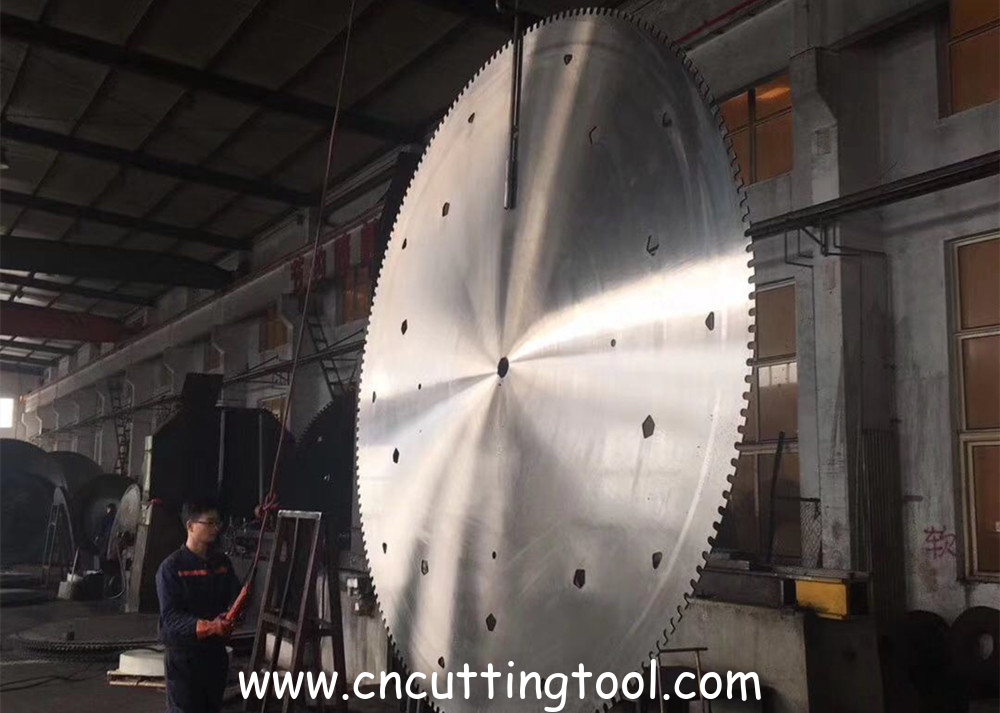

rock tunneling left and right teeth tempering high strength quality 75Cr1 steel large steel cores

rock tunneling left and right teeth tempering high strength quality 75Cr1 steel large steel cores

    • rock tunneling left and right teeth tempering high strength quality 75Cr1 steel large steel cores
    • rock tunneling left and right teeth tempering high strength quality 75Cr1 steel large steel cores
    • rock tunneling left and right teeth tempering high strength quality 75Cr1 steel large steel cores
    • rock tunneling left and right teeth tempering high strength quality 75Cr1 steel large steel cores
    • rock tunneling left and right teeth tempering high strength quality 75Cr1 steel large steel cores
    • rock tunneling left and right teeth tempering high strength quality 75Cr1 steel large steel cores
  • rock tunneling left and right teeth tempering high strength quality 75Cr1 steel large steel cores

    Product Details:

    Place of Origin: China
    Brand Name: EF
    Certification: No
    Model Number: diamond saw blank

    Payment & Shipping Terms:

    Minimum Order Quantity: 5PCS
    Price: 600-1000USD
    Packaging Details: wooden case
    Delivery Time: 45 days
    Payment Terms: T/T
    Supply Ability: 1000PCS/Month
    Contact Now
    Detailed Product Description
    Material: 75Cr1 Diameter: 2400-3000mm
    Cutting Material: Hard Rock,granite, Quartzite, Concrete

    cutting reinforced concrete heated process quality 75Cr1 material saw blanks



    Description



    Diamond saw blanks and steel cores for block cutting of slabs of Granite, Sandstone, Marble, and Kinds of Hard Stones after brazing diamond segments, Suitable for Bridge cutting machine, Single arm cutting machine, Vertical plus horizontal cutting machine, and Block squaring cutter, Gantry cutting machine, Bridge multiblade block cutter.



    Type: Normal and silent type, wet and dry cutting are both available.

    The segments can be welded on the saw base body, high frequency induction welding, laser welding or silver welding.



    Diamond saw blanks and steel cores are made with high strength special steel, precisely heat treated, grinded, straightened and tensioned and uniform metallurgical structure.



    Our saw blanks are made of high quality steel with chemical composition 75Cr1, which is considered as the best quality for granite & stone cutting offering long lifespan.



    Applicable saw machine type



    Double-blades mining machine

    Block cutting machine

    Double Blades Mountain saw

    Mine sawing machine

    Rock saw

    Circular saw

    Mountain saw

    Mine block sawing machine

    Tunnel Mountain saw

    Cave saw machine

    Mountain sawing machine





    Applied cutting conditions

    Scope of application: sawing and cutting granite, quartzite, concrete with a small amount of reinforced steel, and cutting the wall in the horizontal direction through the rotation function of the excavator.

    Building demolition for cutting reinforced concrete, concrete floors, road construction and repair work

    For hard rock, powder rock after cutting, crushing operation

    Foundation, basement rock and concrete excavation work

    Cutting operations for underground cable trenches

    Mining operations in quarries, shaping of rock blocks, trimming and other operations

    Rock tunneling, rock trenching.



    Saw blade thickness and tooth profile

    The thickness of the saw blade is theoretically as thin as possible, and the saw seam is actually a kind of consumption. The material of the alloy saw blade base and the manufacturing process of the saw blade determine the thickness of the saw blade. If the thickness is too thin, the saw blade is easy to shake when working, which affects the cutting effect. When choosing the thickness of the saw blade, the stability of the saw blade and the material to be sawed should be considered.

    The thickness required for some special-purpose materials is also specific, and should be used according to the requirements of the equipment, such as slotting saw blades, scribing saw blades, etc. Selection of tooth shape, the commonly used tooth shapes are left and right teeth (alternating teeth), flat teeth, trapezoidal flat teeth (high and low teeth), inverted trapezoidal teeth (inverted conical teeth), dovetail teeth (hump teeth), and rare ones. Industrial grade three left and one right, left and right flat teeth, etc.







    Specification



    Diameter D1 Thickness Teeth number Slot depth Slot width Teeth height
    800 790 4.5 46 14 12 41.9
    830 815 4.5 46 14 12 43.6
    850 840 4.5 50 18 12 40.8
    900 884 5.0 64 18 18 25.4
    1000 984 5.0 70 20 20 24.1
    1050 1034 5.0 70 20 20 26.4
    1100 1084 5.5 74 20 20 26.0
    1200 1184 5.5 80 20 20 26.5
    1250 1232 6.0 84 20 20 26.1
    1300 1282 6.0 88 20 20 25.8
    1350 1332 6.0 88 22 22 25.5
    1400 1382 6.5 92 22 22 25.2
    1500 1482 6.5 100 22 22 24.5
    1500 1482 7.0 100 22 22 24.5
    1600 1582 6.5 104 22 22 25.8
    1600 1582 7.0 104 22 22 25.8
    1650 1632 7.0 108 22 22 25.5
    1700 1682 7.0 112 22 22 25.2
    1750 1732 7.0 112 22 22 26.6
    2000 1982 8.0 132 22 22 25.2
    2100 2082 8.0 132 25 22 27.5
    2200 2182 8.0 132 25 22 29.9
    2300 2282 8.0 138 25 22 29.9
    2500 2482 9.0 140 25 25 30.7
    2700 2682 9.0 140 25 25 35.2
    3000 2982 9.25 160 30 30 28.5
    3500 3482 9.5 180 30 30 30.8
    3600 3582 9.5 180 30 30 31.0

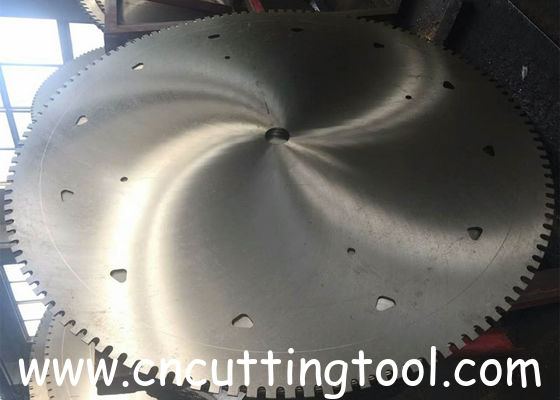

    rock tunneling left and right teeth tempering high strength quality 75Cr1 steel large steel cores



    rock tunneling left and right teeth tempering high strength quality 75Cr1 steel large steel cores

    rock tunneling left and right teeth tempering high strength quality 75Cr1 steel large steel cores

    rock tunneling left and right teeth tempering high strength quality 75Cr1 steel large steel cores

    rock tunneling left and right teeth tempering high strength quality 75Cr1 steel large steel cores
