|Place of Origin:||China|
|Model Number:||diamond saw blank|
|Minimum Order Quantity:||5PCS|
|Packaging Details:||wooden case|
|Delivery Time:||45 days|
|Cutting Material:||Hard Rock,granite, Quartzite, Concrete|

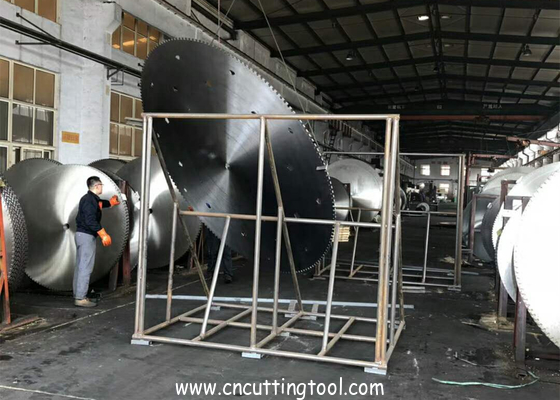

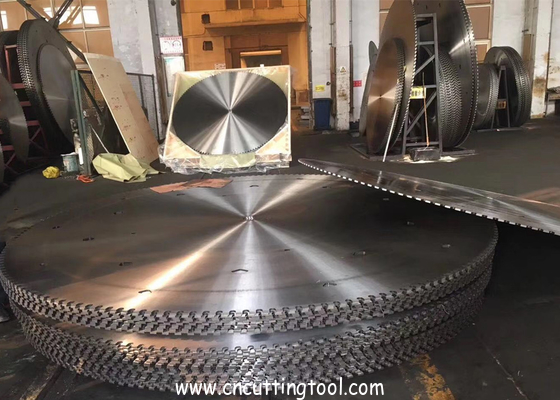

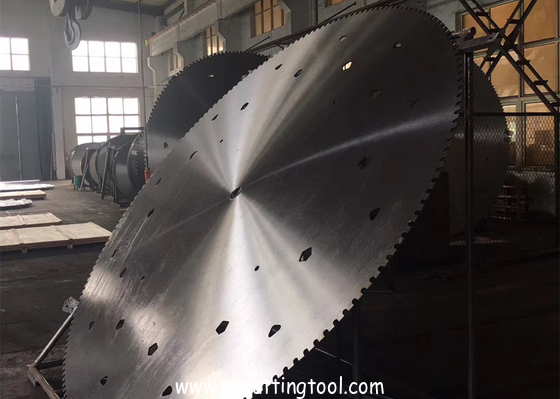

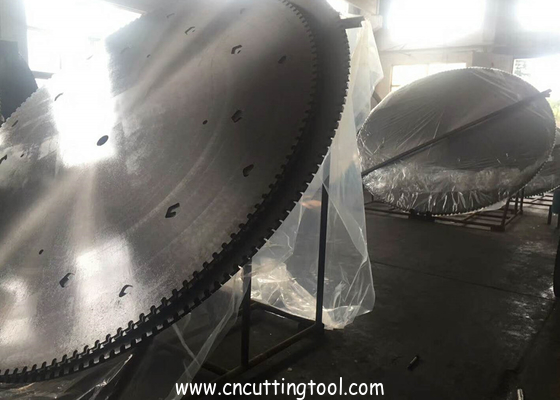

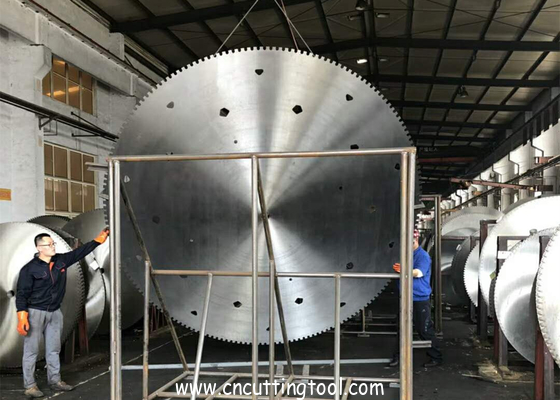

bridge cutting machine grinded and straight mountain saw durable 75Cr1 material steel blank
Diamond saw blanks and steel cores for block cutting of slabs of Granite, Sandstone, Marble, and Kinds of Hard Stones after brazing diamond segments, Suitable for Bridge cutting machine, Single arm cutting machine, Vertical plus horizontal cutting machine, and Block squaring cutter, Gantry cutting machine, Bridge multiblade block cutter.
Type: Normal and silent type, wet and dry cutting are both available.
The segments can be welded on the saw base body, high frequency induction welding, laser welding or silver welding.

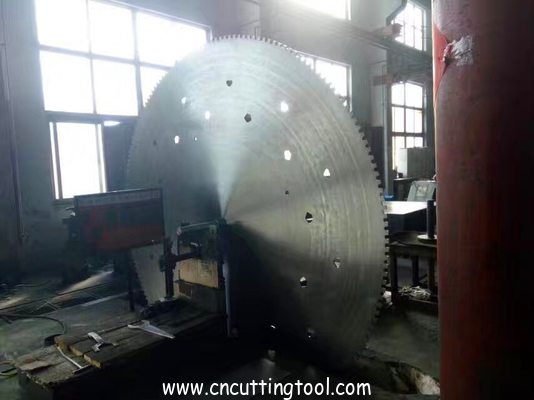

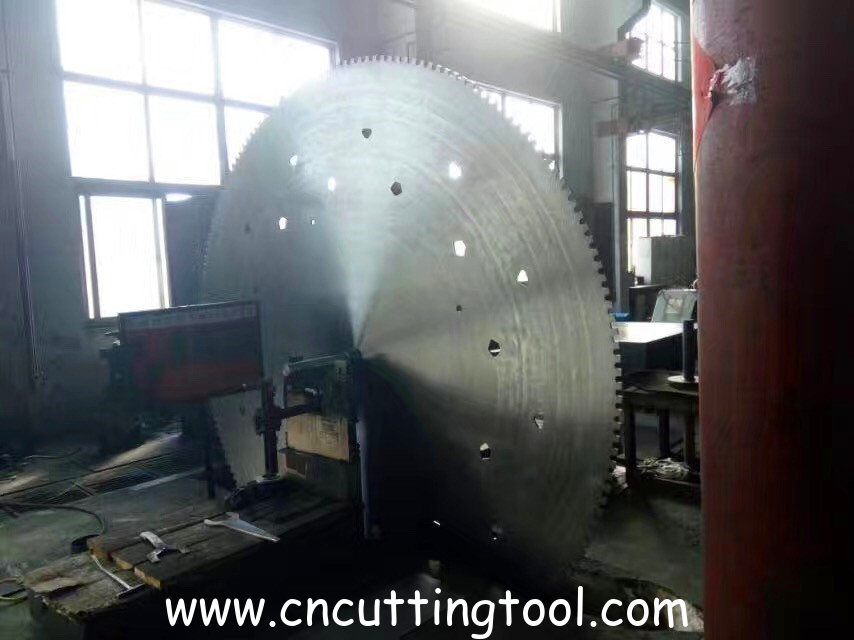

Diamond saw blanks and steel cores are made with high strength special steel, precisely heat treated, grinded, straightened and tensioned and uniform metallurgical structure.
Our saw blanks are made of high quality steel with chemical composition 75Cr1, which is considered as the best quality for granite & stone cutting offering long lifespan.
Applicable saw machine type
Double-blades mining machine
Block cutting machine
Double Blades Mountain saw
Mine sawing machine
Mine block sawing machine
Tunnel Mountain saw
Cave saw machine
Mountain sawing machine
Applied cutting conditions
Scope of application: sawing and cutting granite, quartzite, concrete with a small amount of reinforced steel, and cutting the wall in the horizontal direction through the rotation function of the excavator.
Building demolition for cutting reinforced concrete, concrete floors, road construction and repair work
For hard rock, powder rock after cutting, crushing operation
Foundation, basement rock and concrete excavation work
Cutting operations for underground cable trenches
Mining operations in quarries, shaping of rock blocks, trimming and other operations
Rock tunneling, rock trenching.
Saw blade thickness and tooth profile
The thickness of the saw blade is theoretically as thin as possible, and the saw seam is actually a kind of consumption. The material of the alloy saw blade base and the manufacturing process of the saw blade determine the thickness of the saw blade. If the thickness is too thin, the saw blade is easy to shake when working, which affects the cutting effect. When choosing the thickness of the saw blade, the stability of the saw blade and the material to be sawed should be considered.
The thickness required for some special-purpose materials is also specific, and should be used according to the requirements of the equipment, such as slotting saw blades, scribing saw blades, etc. Selection of tooth shape, the commonly used tooth shapes are left and right teeth (alternating teeth), flat teeth, trapezoidal flat teeth (high and low teeth), inverted trapezoidal teeth (inverted conical teeth), dovetail teeth (hump teeth), and rare ones. Industrial grade three left and one right, left and right flat teeth, etc.
|Diameter||D1||Thickness||Teeth number||Slot depth||Slot width||Teeth height|
