| Place of Origin: | China |
| Brand Name: | EFFEMAX |
| Certification: | No |
| Model Number: | block cutter saw blank |
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | USD 850-1000 per piece |

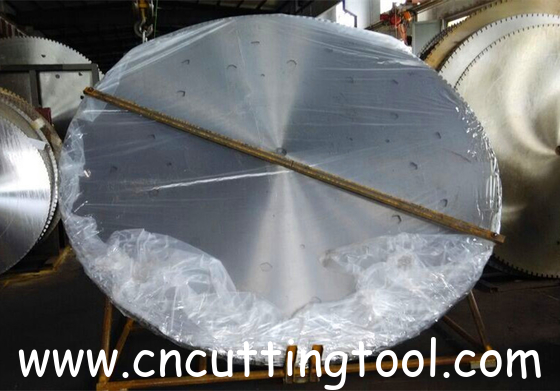

| Packaging Details: | seaworthy wooden case |
| Delivery Time: | 40 work days |
| Payment Terms: | T/T |
| Supply Ability: | 500pcs/month |
| Diameter: | 1982mm | Thickness: | 8.0mm |
|---|---|---|---|
| Material: | 75Cr1 | Application: | Block Cutter,bridge Cutter |
| Cutting Material: | Block And Slab |

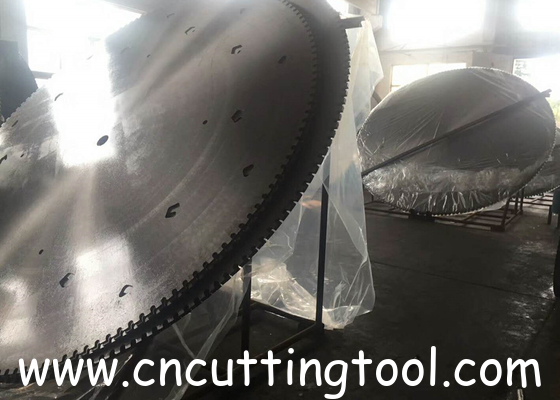

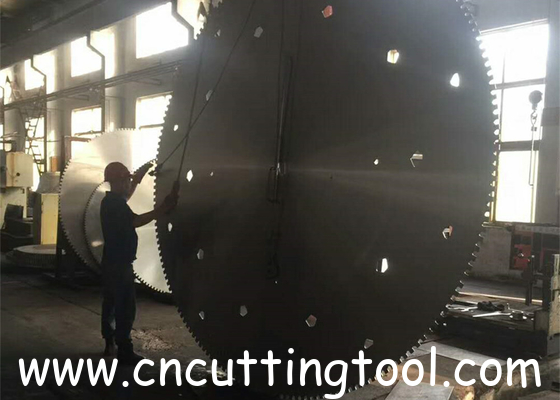

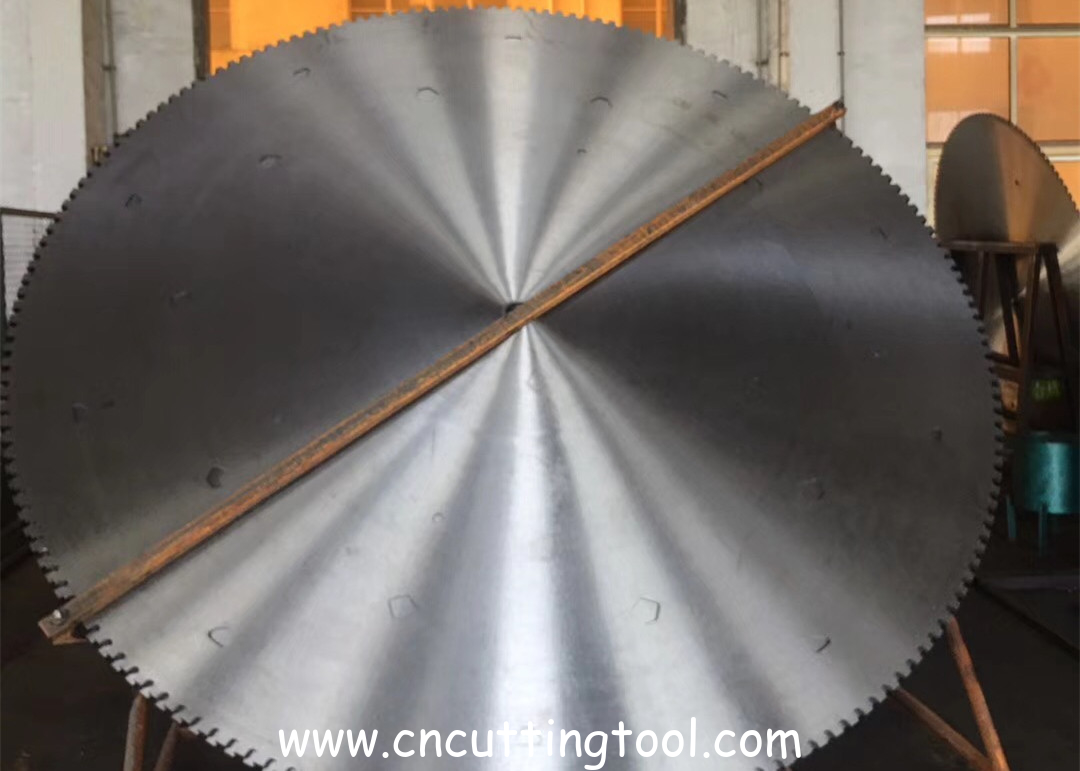

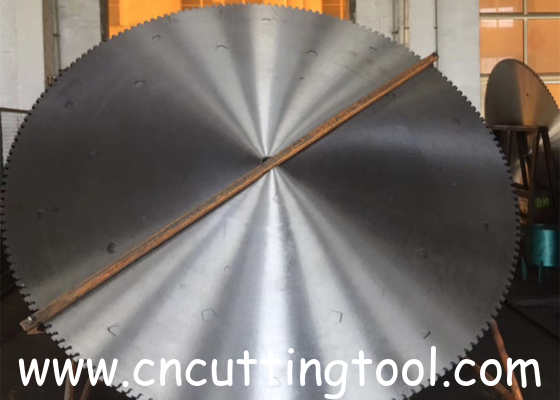

Diamond circular saw blanks and steel cores for marble,granite,sandstone block cutter
Diamond saw blanks and steel cores for block cutting of slabs of Granite, Sandstone, Slate, and Kinds of Hard Stones with diamond segments, Suitable for Bridge Cutting Machine and Single Arm Machine.
The diameter range from 530mm-3500mm
Type: Normal and silent type, wet and dry cutting are both available.
The segments can be welded on the saw base body, high frequency induction welding, laser welding or silver welding.
Diamond saw blanks and steel cores are made with high strength special steel, precisely heat treated, grinded, straightened and tensioned and uniform metallurgical structure.
Circular Saw Blanks for single & multi cutters for granite & stone cutting with water. Our saw blanks are made of high quality steel with chemical composition 75Cr1, which is considered as the best quality for granite & stone cutting offering long lifespan.
| Diameter | D1 | Thickness | Teeth number | Slot depth | Slot width | Teeth height |
| 500 | 490 | 3.0 | 30 | 14 | 10 | 41.3 |
| 550 | 540 | 3.5 | 32 | 14 | 12 | 41.0 |
| 600 | 590 | 3.5 | 36 | 14 | 10 | 41.5 |
| 625 | 615 | 3.5 | 36 | 14 | 12 | 41.7 |
| 650 | 640 | 4.0 | 39 | 14 | 10 | 41.5 |
| 700 | 690 | 4.0 | 40 | 14 | 12 | 42.2 |
| 725 | 715 | 4.0 | 40 | 14 | 10 | 46.1 |
| 750 | 740 | 4.5 | 46 | 14 | 10 | 40.5 |
| 800 | 790 | 4.5 | 46 | 14 | 12 | 41.9 |
| 830 | 815 | 4.5 | 46 | 14 | 12 | 43.6 |
| 850 | 840 | 4.5 | 50 | 18 | 12 | 40.8 |
| 900 | 884 | 5.0 | 64 | 18 | 18 | 25.4 |
| 1000 | 984 | 5.0 | 70 | 20 | 20 | 24.1 |
| 1050 | 1034 | 5.0 | 70 | 20 | 20 | 26.4 |
| 1100 | 1084 | 5.5 | 74 | 20 | 20 | 26.0 |
| 1200 | 1184 | 5.5 | 80 | 20 | 20 | 26.5 |
| 1250 | 1232 | 6.0 | 84 | 20 | 20 | 26.1 |
| 1300 | 1282 | 6.0 | 88 | 20 | 20 | 25.8 |
| 1350 | 1332 | 6.0 | 88 | 22 | 22 | 25.5 |
| 1400 | 1382 | 6.5 | 92 | 22 | 22 | 25.2 |
| 1500 | 1482 | 6.5 | 100 | 22 | 22 | 24.5 |
| 1500 | 1482 | 7.0 | 100 | 22 | 22 | 24.5 |
| 1600 | 1582 | 6.5 | 104 | 22 | 22 | 25.8 |
| 1600 | 1582 | 7.0 | 104 | 22 | 22 | 25.8 |
| 1650 | 1632 | 7.0 | 108 | 22 | 22 | 25.5 |
| 1700 | 1682 | 7.0 | 112 | 22 | 22 | 25.2 |
| 1750 | 1732 | 7.0 | 112 | 22 | 22 | 26.6 |
| 2000 | 1982 | 8.0 | 132 | 22 | 22 | 25.2 |
| 2100 | 2082 | 8.0 | 132 | 25 | 22 | 27.5 |
| 2200 | 2182 | 8.0 | 132 | 25 | 22 | 29.9 |
| 2300 | 2282 | 8.0 | 138 | 25 | 22 | 29.9 |
| 2500 | 2482 | 9.0 | 140 | 25 | 25 | 30.7 |
| 2700 | 2682 | 9.0 | 140 | 25 | 25 | 35.2 |
| 3000 | 2982 | 9.25 | 160 | 30 | 30 | 28.5 |
| 3500 | 3482 | 9.5 | 180 | 30 | 30 | 30.8 |
| 3600 | 3582 | 9.5 | 180 | 30 | 30 | 31.0 |
