| Place of Origin: | China |
| Model Number: | 600-2000mm |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | 50000-80000USD/SET |
| Packaging Details: | wooden case |
| Delivery Time: | 3 months |
| Payment Terms: | T/T |
| Supply Ability: | 10SET/MONTH |
| Usage: | For Sharpening And Grinding Carbide Tips | Diameter: | 600-2000mm |
|---|---|---|---|
| Control: | CNC |

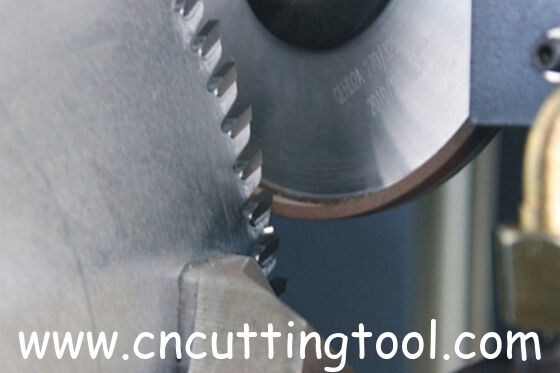

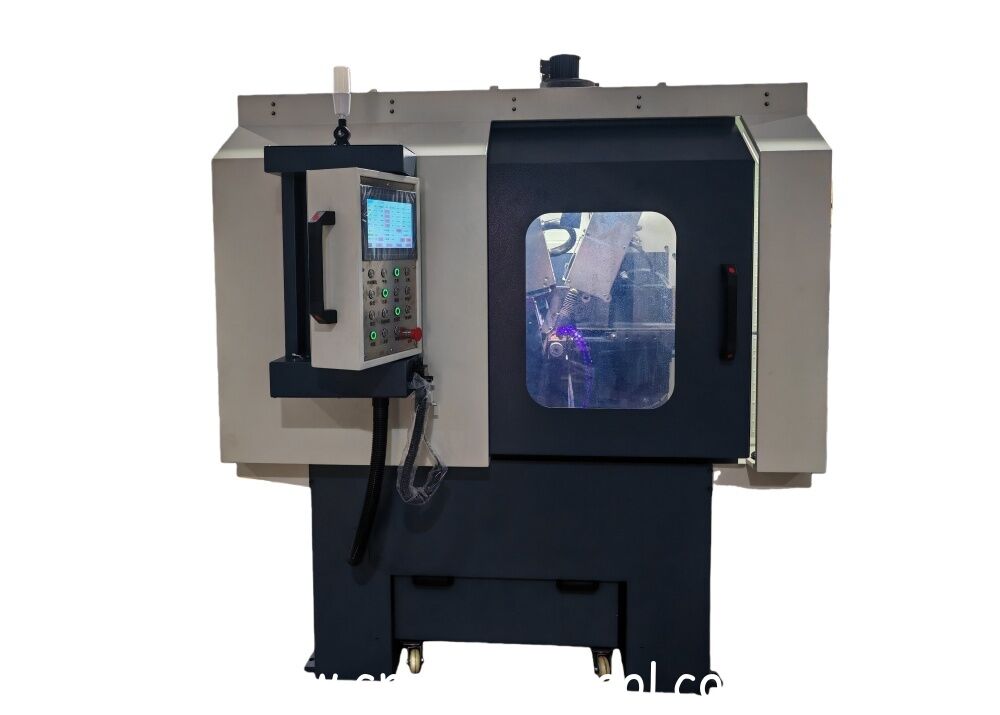

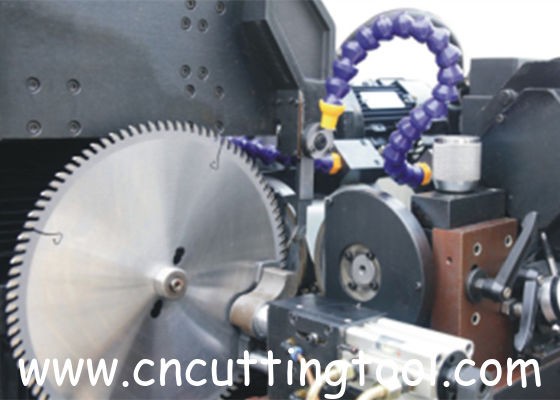

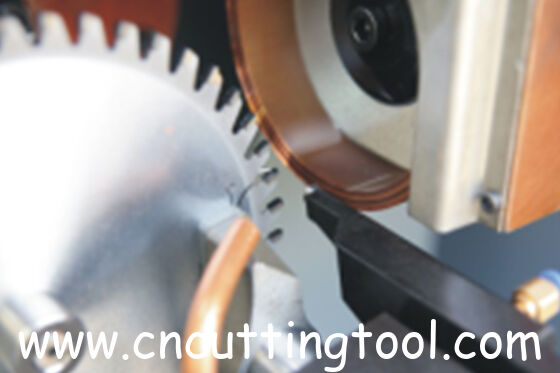

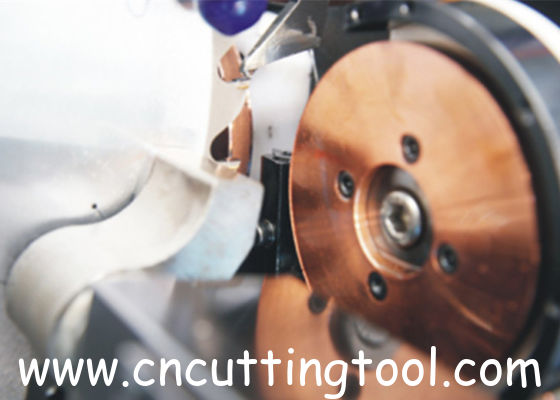

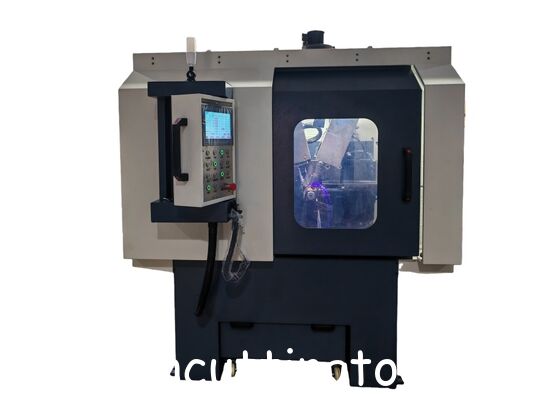

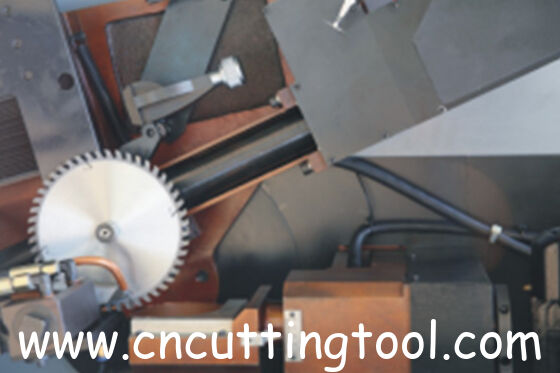

CNC control circular saw blade carbide tips side grinding machine
This model can be used for the grinding of carbide tips’ tooth sides of circular saw blade which will be used for steel tube cutting.
Characteristic functions as below
1.Three kinds grinding program for option.
2.Two CNC feed pawl axes for rapid tooth feeding, with curved feeding function.
3.Four CNC grinding control axes with précised endurance, guarantee grinding accuracy and efficiency.
4.Simple operation design, input parameters and grind process will be programed automatically
5.No setting of blade thickness
6.Grinding speed & route can be adjusted at random
7.Water and oil base cooling system
Tungsten carbide tips saw blade (such as those used for woodworking, bridge breaking aluminum, and metal cutting) become dull and chipped after long-term use, and need to be regularly ground to restore sharpness and consistency with tooth profile. Traditional manual grinding has low efficiency and poor accuracy, while fully automatic Tungsten carbide tipped saw blades grinding machines control the wheel feed, swing angle, and speed through a numerical control system, achieving high repeatability and high efficiency grinding.
Technical parameters
| No | Technical data | |
| 1 | Grinding size range | 100-800mm |
| 2 | Saw blade bore diameter range | 12-60mm |
| 3 | Grinding tooth number | 1-999 |
| 4 | Tooth pitch | 7-90mm |
| 5 | Saw blade thickness | 1-16mm |
| 6 | Rake angle | -2-40 ° |
| 7 | Rear angle | 8-40° |
| 8 | Grinding wheel drive | Servo |
| 9 | Grinding drive | |
| 10 | Swing drive | |
| 11 | Total power | 3.7KW |
| 12 | Voltage | 3p 380V |
| 13 | Total package weight | 1280kg |
| 14 | Tooth surface swing angle | Lef 3-15 to right 3-15 servo with reducer control |
| 15 | Tooth top swing angle | Left 3-45 to right 3-45 servo with reducer control |
| 16 | Grinding wheel speed | 4200/m |
| 17 | Stroke | 1-28mm servo stepless speed change |
| 18 | Speed | Max20 tooth/m |
| 19 | Grinding wheel OD | 125mm |
| 20 | Grinding wheel ID | 32mm |
| 21 | Coolant | 50kl/m |
| 22 | Grinding accuracy | 0.03mm-0.15mm |
| 23 | Clamping and pushing | Hydraulic cylinder |
| 24 | Weight | 930kg |
| 25 | Frequency | 50Hz |
| 26 | Size | 1800*1250*1850 |
