|Place of Origin:||China|
|Minimum Order Quantity:||1 set|
|Packaging Details:||wooden case|
|Delivery Time:||35 days|
|Supply Ability:||20 sets per month|
|Saw Blade:||HSS||Tooth:||As Per Request|
|Control:||CNC Control||Axes:||3 Axes|

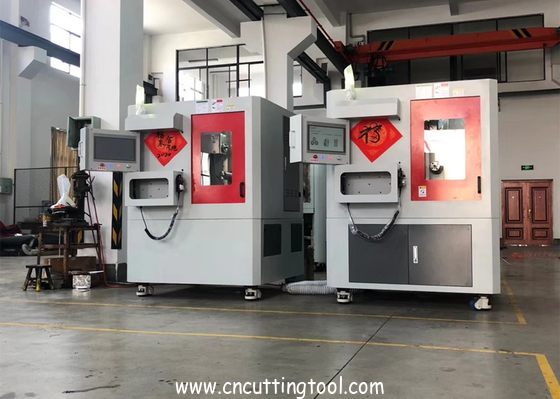

CNC control 3 axes HSS saw blade automatic sharpening and grinding machine

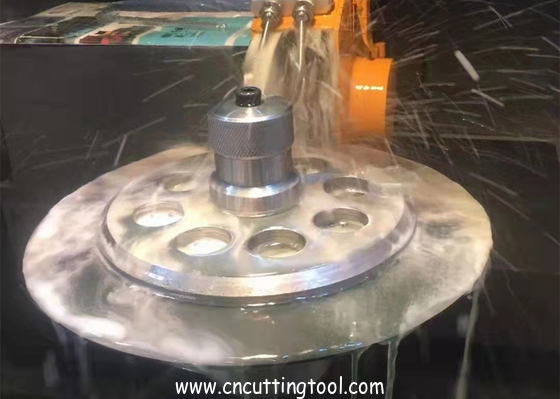

CNC automatic grinding machine is the most advanced grinding machine in China. Through the cooperation of mechanical, electrical, hydraulic, PLC and HMI interface, CNC automatic grinding machine can ensure high grinding quality and make saw blade more cutting-resistant. The normal speed of grinding process is 8 minutes, one time setting tooth shape, full automatic grinding, which can be divided into the following steps: knife-input saw blade outer diameter teeth number-automatic calculation-cycle start, fool-type operation of a circle forming, machine equipped with a magnetic sludge separator, powder automatic processing, clean, environmentally friendly and pollution-free, a grinding wheel. The blade can grind any tooth profile. The perfect tooth profile improves the saw blade's cutting ability by more than two times in the cutting life. It has many advantages such as safety, efficiency, convenience, stability, energy saving and material saving. It is well received by buyers at home and abroad.
Condition of use
Environment temperature: 0 - 45℃, the machine is stable, precise and reliable.
Relative humidity: Less than or equal to 90%, the machine operates stably, accurately and reliably.
Power supply: 380VAC (+ / - 10%), 50Hz.
1. CNC control grinding wheel feeding, one circle grinding forming without chamfering,
2. Reduce the non production time and achieve high quality grinding effect;
3. When grinding new pieces of the same specification, just input the number of teeth to start with one key;
4. Double waterproof system can better protect the hardware facilities of equipment and prolong the service life;
5. No dust, low noise, high efficiency, easy to operate, solve the problems of traditional manual gear grinding machine, such as dust, noise, gear grinding slowly;
6. This machine adopts large screen intelligent CNC touch operating system, stable and durable, easy to operate, suitable for all adults;
7. It is suitable for grinding and grinding arc teeth, triangular teeth, high and low teeth, etc;
8. The tooth profile angle and depth can be adjusted arbitrarily, and the tooth surface is smooth without redness and annealing;

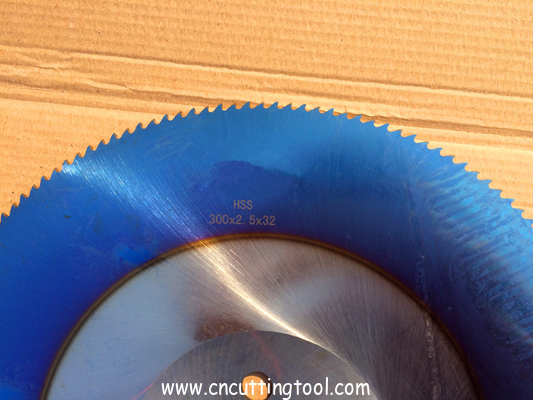

CNC high speed steel grinding machine is widely used in the manufacture and grinding of high speed steel saw blade.
|2||Grinding teeth number||50-400T|
|4||Servo motor power||<4kw|
|5||Main axis motor power||4kw|
|6||Grinding wheel outer diameter||200-250mm|
|7||Grinding wheel inner diameter||45/55mm|
|9||Total working power||<6kw|
