|Place of Origin:||China|
|Minimum Order Quantity:||1 set|
|Packaging Details:||wooden case|
|Delivery Time:||25 days|
|Supply Ability:||50 sets per month|
|Control:||CNC Control||Usage:||Hss Saw Blade Teeth Grinding|
|Total Power:||6kW||Total Weight:||1.5t|

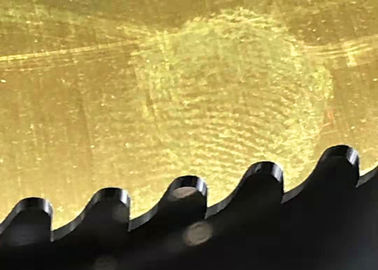

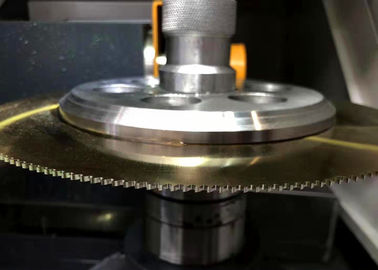

CNC control automatic sharpening machine for hss saw blade teeth grinding
CNC automatic grinding machine is the most advanced grinding machine in China. Through the cooperation of mechanical, electrical, hydraulic, PLC and HMI interface, CNC automatic grinding machine can ensure high grinding quality and make saw blade more cutting-resistant. The normal speed of grinding process is 8 minutes, one time setting tooth shape, full automatic grinding, which can be divided into the following steps: knife-input saw blade outer diameter teeth number-automatic calculation-cycle start, fool-type operation of a circle forming, machine equipped with a magnetic sludge separator, powder automatic processing, clean, environmentally friendly and pollution-free, a grinding wheel. The blade can grind any tooth profile. The perfect tooth profile improves the saw blade's cutting ability by more than two times in the cutting life. It has many advantages such as safety, efficiency, convenience, stability, energy saving and material saving. It is well received by buyers at home and abroad.
A variety of cutting-edge tooth shape, can be completed by one grinding
Do not need a long grinding time, reduce non-productive time, achieve high quality grinding effect.
CNC Four-axis control bevel grinding, grinding wheel feed, grinding stroke and teeth feeding.
Several kinds of complex sawtooth geometries, and provide different grinding bevel angles and the height of the teeth.

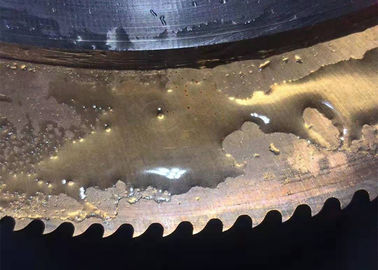

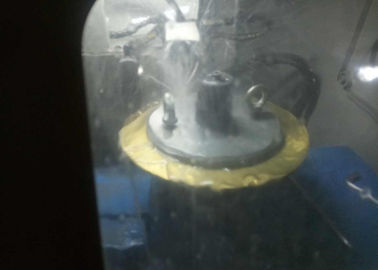

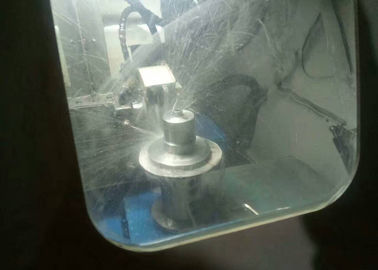

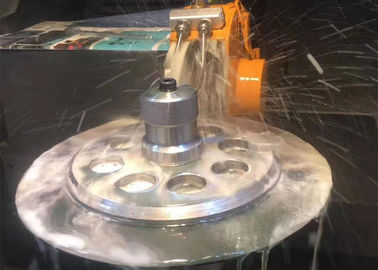

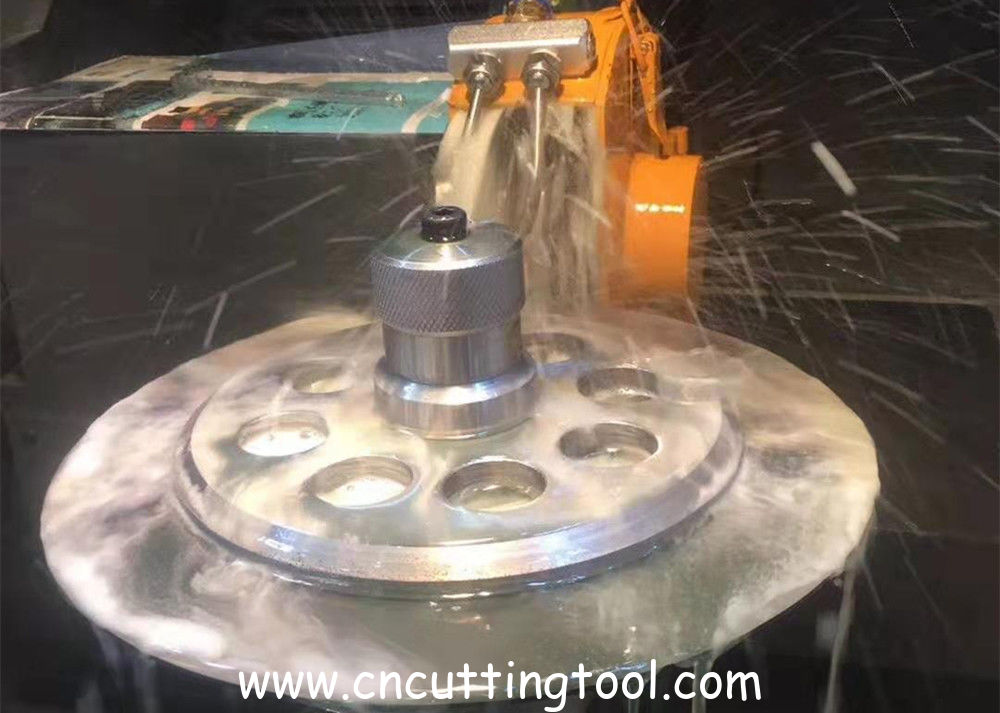

Achieve outstanding results by use of water-based coolant or oil.
Input data directly in the center of the control panel.
The operator uses the program by guide illustration through LCD color screen support.
No longer required to set tooth pitch in advance, but simply enter the diameter and number of teeth.
Innovative and unique design, machine complete seal
Separation area of grinding zone and computer
|1||Using range||Grinding diameter||≤100-500|
|Saw blade thickness||≤0-1-6.0|
|Saw blade hole diameter||Φ22-25.4-32-40-50|
|Teeth type||A, B,BW,C|
|Tooth pitch||Max 24MM|
|Teeth qty||10-99 9teeth|
|2||Data||Grinding wheel drive motor||4.0KW|
|Grinding wheel line speed||6000|
|Feeding servo motor||0.75KW|
|3||Left and right stepping motor||0.2KW|
|Guide rail oil pump capacity||300L|
