| Place of Origin: | China |
| Brand Name: | YF |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | 50000-80000USD/SET |
| Packaging Details: | wooden case |
| Delivery Time: | 3 months |
| Payment Terms: | T/T |
| Supply Ability: | 10SET/MONTH |
| Usage: | For Sharpening And Grinding Carbide Tips | Diameter: | 100-800mm |
|---|---|---|---|
| Control: | CNC |

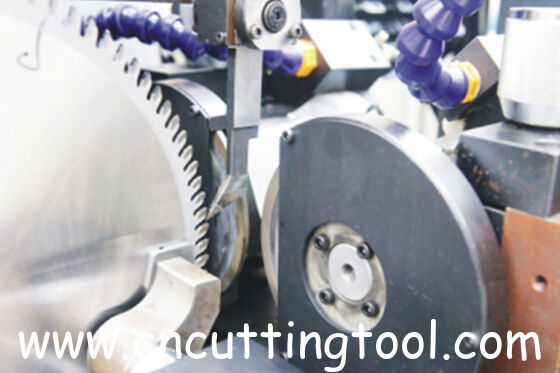

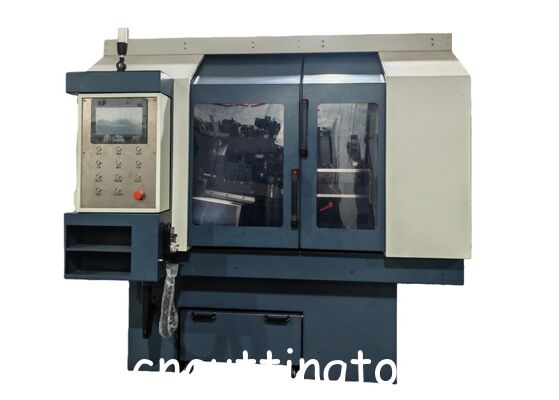

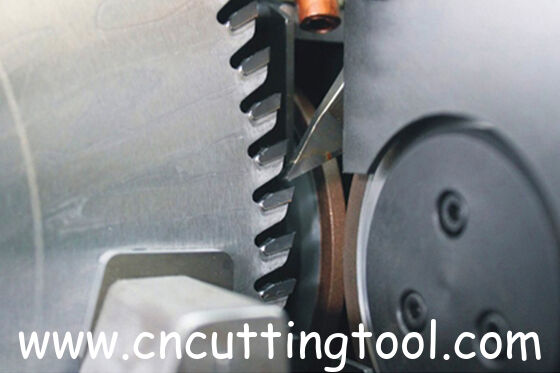

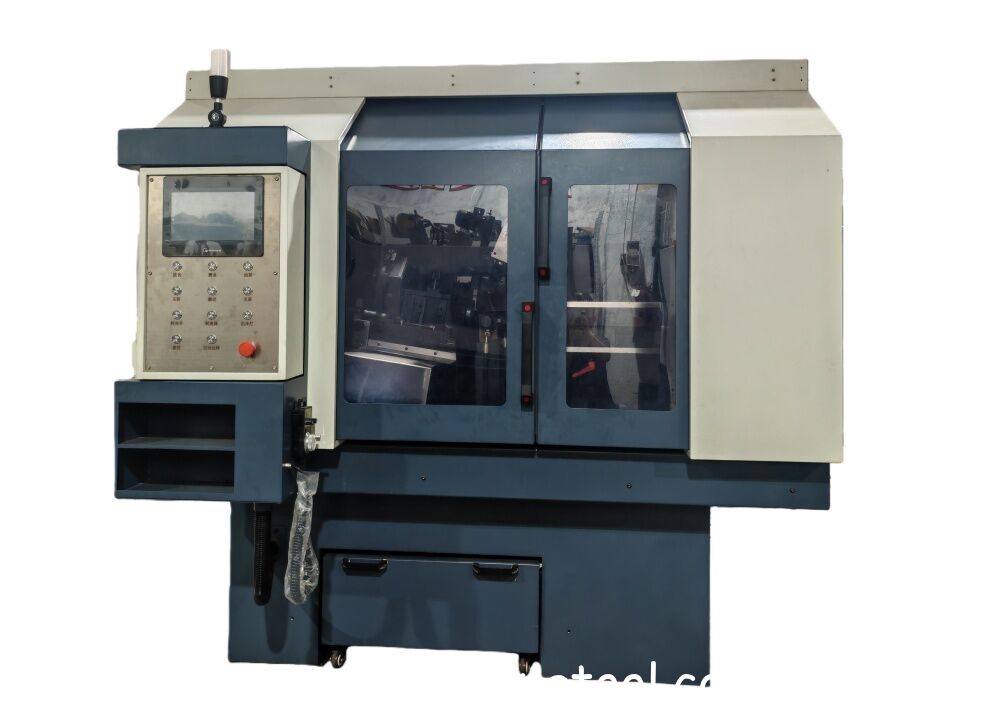

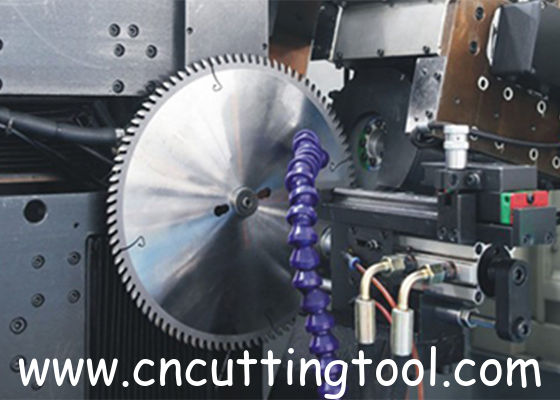

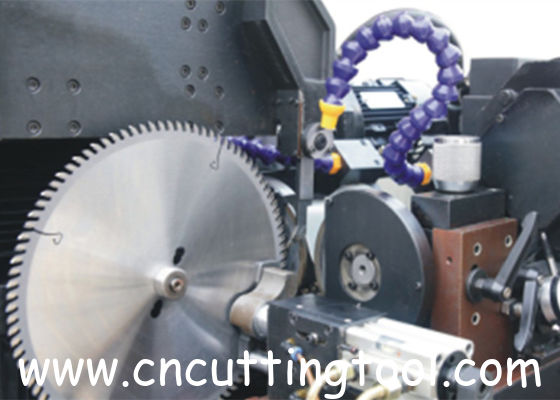

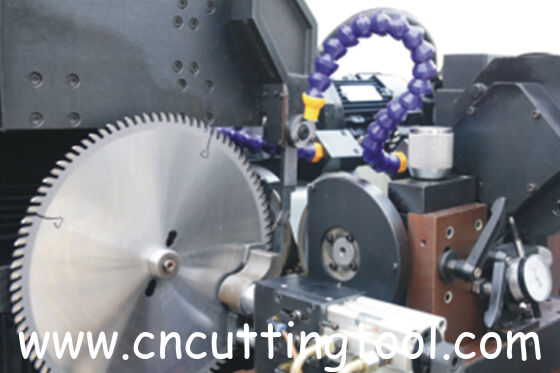

CNC control circular saw blade carbide tips tooth top grinding machine
It used for the grinding of carbide tips’ tooth face, tooth top, face negative angle & chip breaker groove of circular saw blade which will be used for steel tube cutting. Characteristic functions as below:
Four kinds grinding program installed independently; max 7 sets tooth shape combination for each program (chip breaker groove excluded)
Four positions can be finished via one set.
Two CNC feed pawl axes for rapid tooth feeding, with curved feeding function.
Four CNC grinding control axes with précised endurance, guarantee grinding accuracy and efficiency.
Simple operation design, input parameters and grind process will be programed automatically
No setting of blade thickness
Grinding speed & route can be adjusted at random
8Water and oil base cooling system
Tungsten carbide tips saw blade (such as those used for woodworking, bridge breaking aluminum, and metal cutting) become dull and chipped after long-term use, and need to be regularly ground to restore sharpness and consistency with tooth profile. Traditional manual grinding has low efficiency and poor accuracy, while fully automatic Tungsten carbide tipped saw blades grinding machines control the wheel feed, swing angle, and speed through a numerical control system, achieving high repeatability and high efficiency grinding
Technical parameters
| No | Technical data | |
| 1 | Grinding size range | 100-900mm |
| 2 | Saw blade bore diameter range | 12-105mm |
| 3 | Max thickness | 12mm |
| 4 | Tooth pitch | 7-70mm |
| 5 | Radial angle | -15-30 ° |
| 6 | Tangential angle | -4-6° |
| 7 | Max grinding stroke | 20mm |
| 8 | Grinding speed | 0.5-7mm/s |
| 9 | Grinding wheel OD | 80,100,125mm |
| 10 | Grinding wheel linear speed | 28m/s, 35m/s |
| 11 | Water pump flow | 24L/min |
| 12 | Content of coolant pump | 90L |
| 13 | Voltage | 3p 380V |
| 14 | Total power | 3.8KW |
| 15 | Size | 1950*1550*1950 |
| 16 | Package size | 2150*1750*2350 |
| 17 | Total weight | 1500kg |
