High efficiency HSS saw blade 5 axis sharpening and grinding machine

High efficiency HSS saw blade 5 axis sharpening and grinding machine

Condition of use

Environment temperature: 0 - 45℃, the machine is stable, precise and reliable.

Relative humidity: Less than or equal to 90%, the machine operates stably, accurately and reliably.

Power supply: 380VAC (+ / - 10%), 50Hz.

Features

1. Multifunctional motion controller with stable and durable performance

2. The continuous automatic lubrication system of the guide rail slider ensures smooth and accurate operation, extending service life

3. Tempered glass observation window, sturdy and durable, ensuring the safety of operators

4. High strength cooling water circulation system, large water tank, water is not easy to heat, use Cutting fluid to mix water, lubricate the machine, and the saw teeth do not redden

5. Bus absolute value version drive and servo motor for more precise operation and saving operation and maintenance time

6. Double side clamping iron plate with strong rigidity and excellent clamping effect, reducing saw blade vibration during cutting

7. High speed and precision electric spindle, with light rotating sound and stable speed

8. Large screen touch panel, all program inputs are directly made on the touch screen, with a large font, simple operation interface, and easy to understand operation methods

9. Processing cumulative quantity function

10. Pipeline ventilation level air-cooled water absorption mist system, reducing water mist inside the machine

11. Dual waterproof system, better protecting equipment hardware facilities and extending service life

12. One click start function, new saw blades with the same diameter only need to measure the diameter of the first saw blade, enter the required value, and the remaining saw blades only need to be installed and clamped. Click one button to start

13. Processing completion alarm function, with a loud alarm sound to indicate processing completion

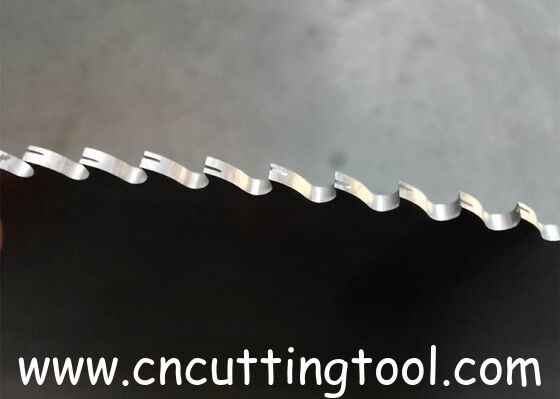

14. Chamfer function, one-time forming with tooth opening and chamfering

15. The slotting function requires the saw blade to be slotted. After selecting slotting in the settings, the saw tooth grinding is completed, and the device automatically switches from the grinding program to the slotting program without the need for stop machine and open window. After the slotting program is completed, the audio frequency sounds, and the saw blade can be removed.

Usage

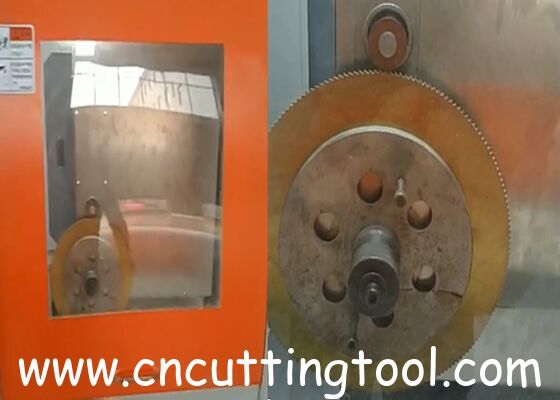

CNC high speed steel grinding machine is widely used in the manufacture and grinding of high speed steel saw blade.

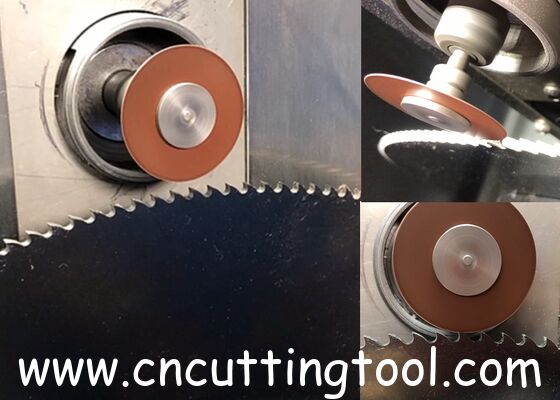

Chamfering function

Chamfering requires that the surface of the saw blade is clean and free of debris, and that the saw blade is flat and has a small swing.

The first chamfered surface of the saw blade is defined as the A surface, and the second chamfered surface is defined as the B surface.

If the left-right deviation is relatively large during the chamfering process, fine-tune the origin of the A axis.
