| Place of Origin: | China |
| Brand Name: | EFFEMAX |
| Certification: | No |
| Model Number: | ZXMC |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD30000/set |
| Packaging Details: | seaworthy wooden case |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T |
| Supply Ability: | 20sets/month |
| Application: | Saw Teeth Sharpening And Repairing | Saw Blade Range: | Max2500mm |
|---|---|---|---|
| Saw Blade Type: | Hot Saw And Friction Saw Blade,segmental Saw Blade | Mode: | CNC Control |
| Teeth Profile: | Set By User | Function: | Saw Teeth Regrinding |

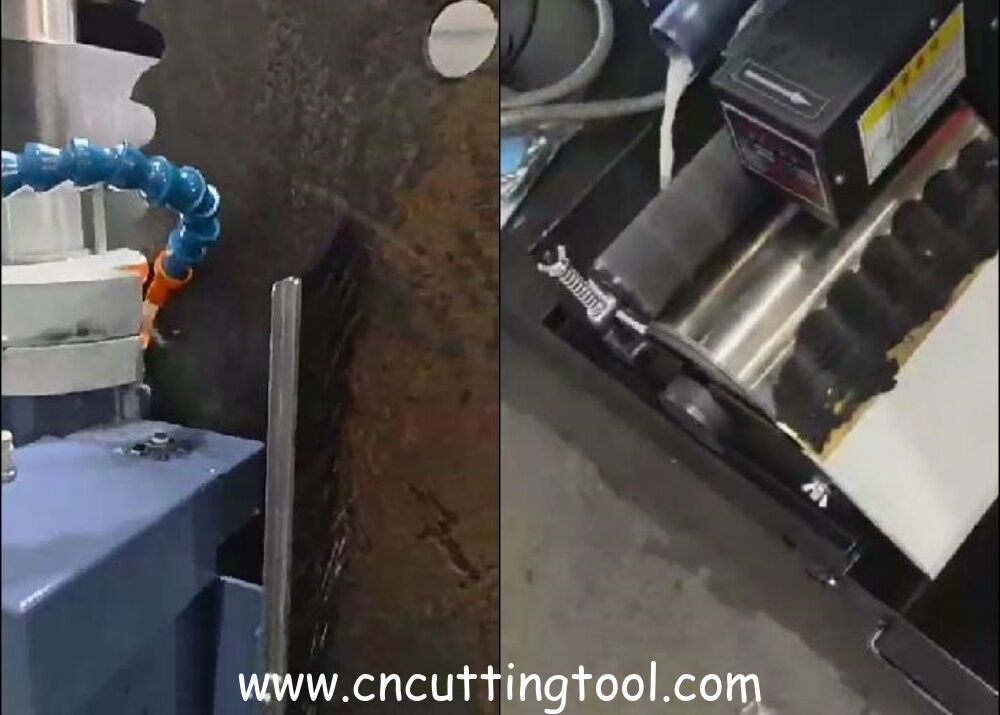

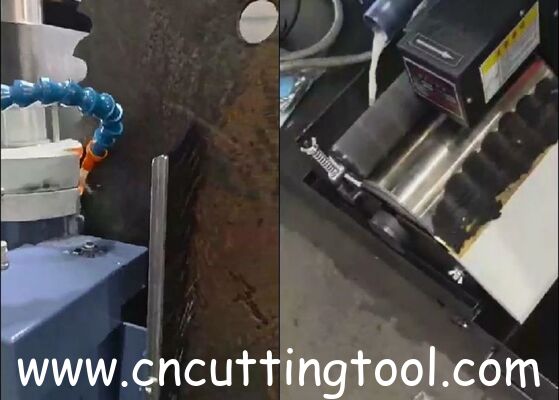

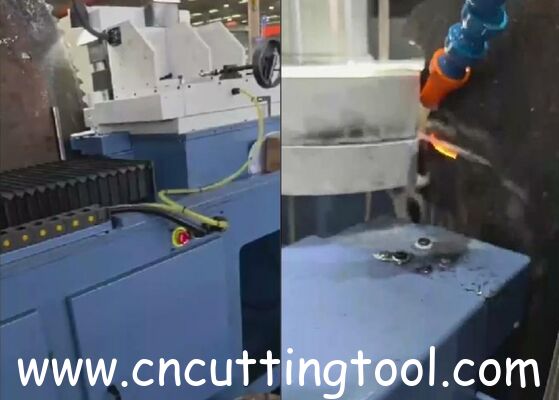

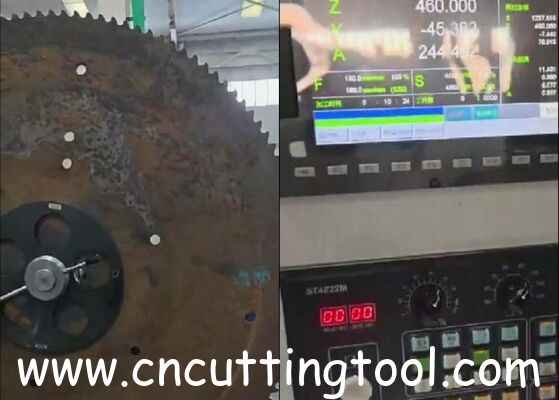

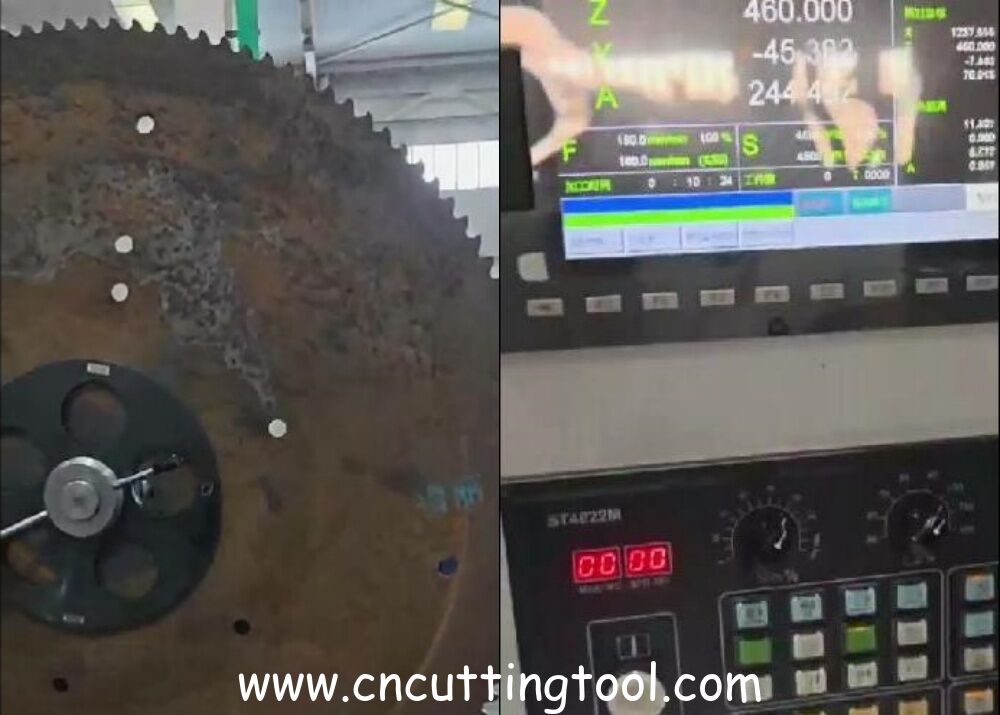

Multi function CNC control saw blade sharpening and grinding machine
Application

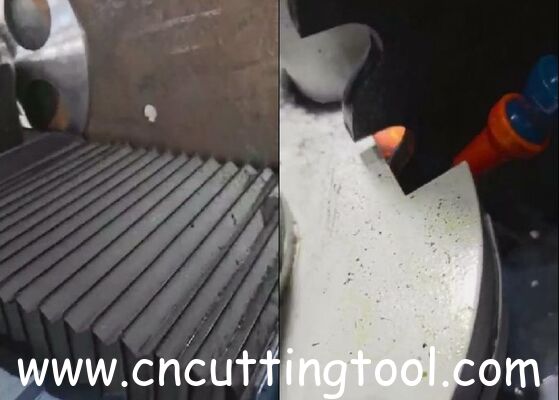

Grinding tooth profile:
hot saw blade tooth profile
segmental saw blade tooth profile
high-speed steel tooth profile
TCT saw blade seat and tooth back (cannot grind carbide tooth profile)
as long as it is a tooth profile that can be made by CAD, it can be ground by the multi function grinding machine.
CBN grinding wheel

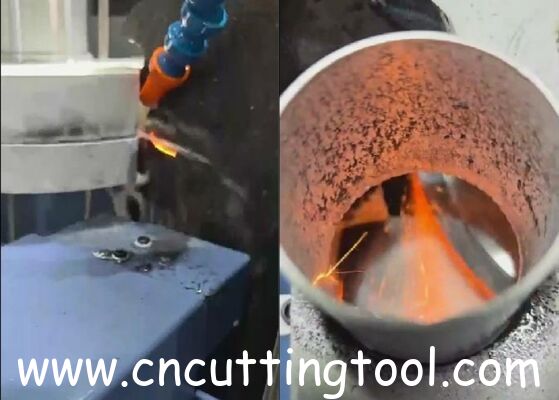

Cooling with water, no dust
Video tag: https://youtube.com/shorts/RCNO4yAzCFM?si=DZfnxvVSxqWl9t0q
Parameter:
| Name | Data |
| Saw blade diameter range | Max 2500mm |
| Saw blade thickness | 6-18mm |
| Power supply volatge | AC380V/50Hz |
| Air source | 0.5-0.9Mpa |
| Air sourse pressure | 0.5-1.0Mpa |
| Working pressure | 0.6Mpa |
| Power of motor | 4 KW |
| Power of control | 0.5KW |
| Diameter of ginding wheel | 250mm |
| Main machine size | 2200x1400x1150mm |
| Electric cabinet size | 1100x540x300mm |
