|Place of Origin:||China|
|Minimum Order Quantity:||1 set|

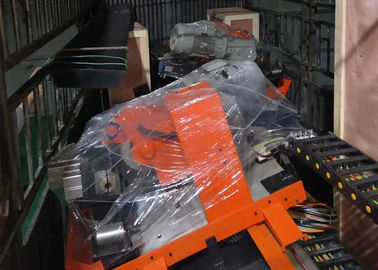

|Packaging Details:||wooden case|
|Delivery Time:||35-45 working days|
|Cutting Material:||Mild Steel||Steel Pipe:||Round,square And Rectangular|
|Control:||Servo Motor||Cut Way:||Cold Cut|

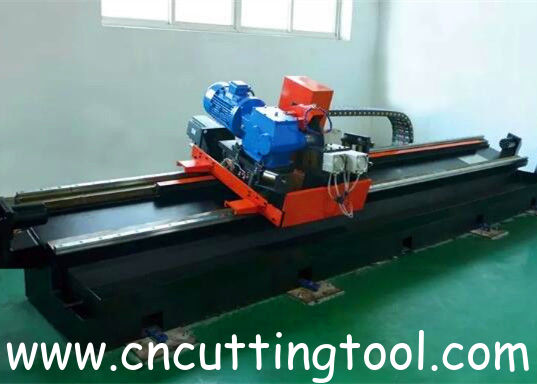

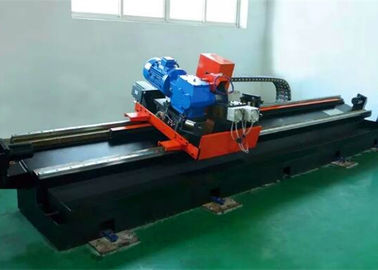

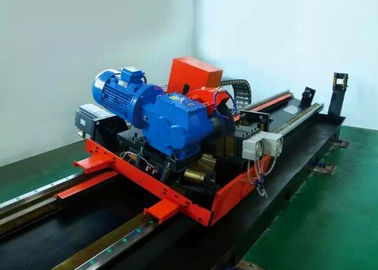

Steel tube and pipe mill cold cut high efficiency flying cold saw
Performance of Cold Cutting Saw Machine
In the process of metal sawing, the heat generated by the saw blade when sawing the work piece is transferred to the sawdust through the saw teeth, the saw blade and the work piece are kept cool. Cold cutting saw machine is different from traditional friction saw machine. The friction between work piece and friction saw blade results in high temperature of friction saw and work piece. Cold cutting saw machine has high section accuracy, no burrs inside and outside, smooth cutting surface, no need for follow-up treatment such as flat-headed chamfering, reduce the processing intensity of the next process, save time and raw materials, work piece will not change performance because of high temperature caused by friction, improve cutting efficiency, no spark, no noise, environmental protection and energy saving.
Following the traditional combination of internal and external operations, the operation interface is simple and clear, and after simple training, the on-site staff can operate the system.
Large amount of data storage and long time
All commissioning parameters can be saved in recipes and can be saved in multiple groups. Effectively prevent field workers from inadvertently modifying parameters or erroneously deleting parameters, resulting in loss of parameters.
Debug screen upgrade
The newly added debugging screen not only facilitates the debugging of the commissioning personnel, but also facilitates the parameter setting and debugging of the field staff when replacing or maintaining the equipment.
Tube selection screen
With intelligent calculation, only the on-site staff needs to select the type of pipe to be produced according to the actual situation, which greatly saves on-site management time.
System trend graph is more realistic
The communication rate is improved, and the trend graph of the system is more realistic, delicate, and truly reflects the operation of the system, providing a powerful basis for the efficient operation of the system.
Three modes are available
When booting into manual mode and entering simulation or automatic mode, if the conditions are not met, an error message will pop up to facilitate the on-site staff to quickly discharge the fault and save debugging time.
It can calculate the cutting ability of a single saw blade. When the area alarm setting value is exceeded, it will flash, prompting the user to replace the saw blade to ensure the uniformity and consistency of the work piece to be cut.
Low noise, good production environment, low spindle rotation and high safety factor
Excellent performance and high production efficiency
The cutting has good flatness, no burr, no need for flat head or CNC cutting, high cutting efficiency and low loss.
Friendly operate interface, clearer and simpler control, richer information, and simple settings for excellent cutting results.
Low maintenance costs
Flat cut, no burr, no secondary processing, stable equipment performance, optimized operating curve to ensure minimum mechanical wear, reduce downtime, and lower average cost.
Ordinary hot cut flying saw
The noise is high, the production environment is bad, the spindle speed is high, the safety factor is low, and safety accidents are easy to occur.
The cutting burr is large, requires flat head, pneumatic or hydraulic drive cutting, low cutting efficiency and large loss.
There is less information on the operation interface, it is difficult to judge the state of the device, and the cutting effect cannot be changed.
The cut burr is large, secondary processing is necessary., the mechanical equipment has large impact, easy to form wear, increase downtime, and the subsequent average cost is high.
|Model||32 cold cut flying sawing machine|
|Tensile strength||Less than 400N/mm2|
|Steel pipe size||Round pipe||Dia 8-50.8mm|
|Rectangular pipe||Max 30x50mm|
|Cut to length||1500-99000mm|
|Production speed||Max 120m/min|
|Motor configuration||Drive||Italy PHASE|
|Cutting||Siemens AC motor/servo|
|Saw blade type||HSS/TCT|
