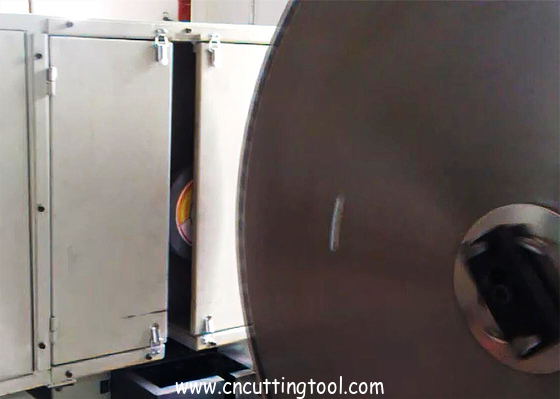

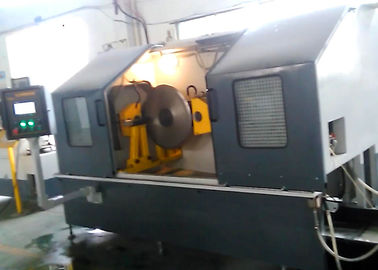

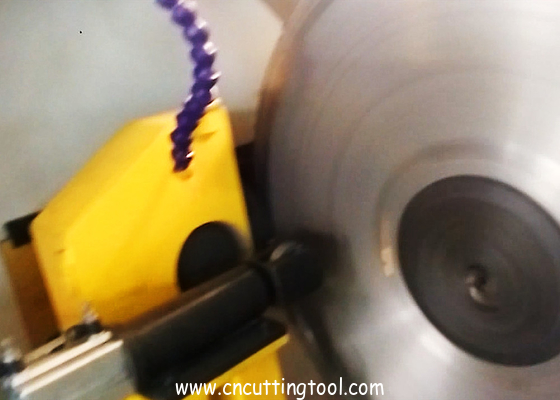

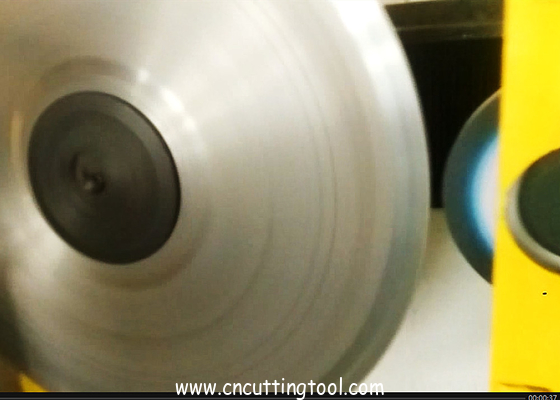

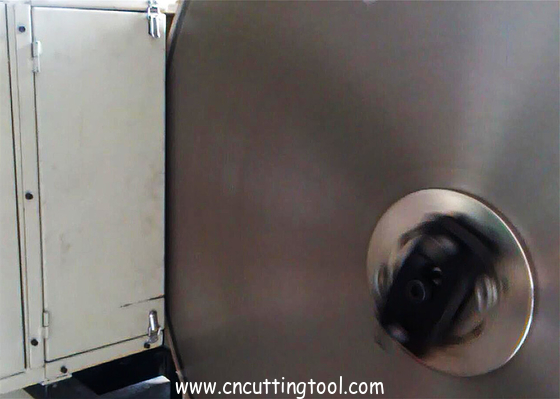

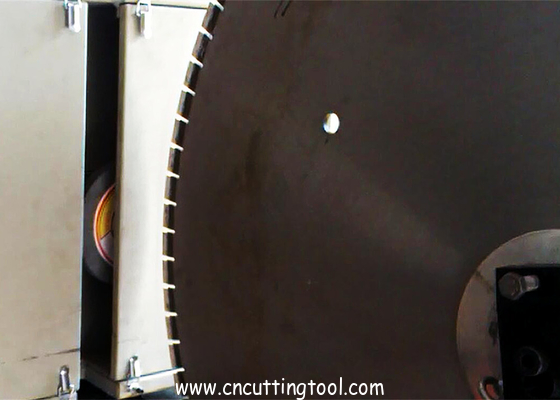

Enclosed automatic circular diamond saw blade segment teeth sharpening and grinding machine

Enclosed automatic circular diamond saw blade segment teeth sharpening and grinding machine

    • Enclosed automatic circular diamond saw blade segment teeth sharpening and grinding machine
    • Enclosed automatic circular diamond saw blade segment teeth sharpening and grinding machine
    • Enclosed automatic circular diamond saw blade segment teeth sharpening and grinding machine
    • Enclosed automatic circular diamond saw blade segment teeth sharpening and grinding machine
    • Enclosed automatic circular diamond saw blade segment teeth sharpening and grinding machine
    • Enclosed automatic circular diamond saw blade segment teeth sharpening and grinding machine
  • Enclosed automatic circular diamond saw blade segment teeth sharpening and grinding machine

    Product Details:

    Place of Origin: China
    Model Number: Dia50-600mm

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: 35000-50000USD/SET
    Packaging Details: wooden case
    Delivery Time: 30days
    Payment Terms: T/T
    Supply Ability: 10SET/MONTH
    Contact Now
    Detailed Product Description
    Usage: For Sharpening And Grinding Diamond Segments Diameter: 50-600mm
    Control: Automatic Function: Grinding 3 Faces Of Segments

    Enclosed automatic circular diamond saw blade segment teeth sharpening and grinding machine



    Diamond saw blades are widely used in the processing of stone, glass, ceramics, crystals, gemstones, cast iron and other materials, as well as in the construction of houses, roads, bridges and other projects. At the same time, with the continuous update and maturity of the diamond saw blade production technology, the application field is still expanding.



    The diamond saw blade segments teeth sharpening and grinding machine is often used to grinding diamond saw blades with a diamond particle size ranging from 30/35 to 60/80. The harder the rock, the finer grain size should be selected. Because under the same pressure conditions, the finer and sharper the diamond is, it is conducive to cutting into hard rocks. Therefore, the requirements for large diamond saw blade segments grinding are getting higher and higher. The life of the diamond saw blade grinded by the diamond saw blade grinding machine can be greatly improved, reducing the wear of the blade.

    The diamond saw blade segments grinding machine adopts the traditional and stable cylindrical grinding structure, which has strong rigidity, high precision, convenient operation and stable effect.



    In producing of diamond saw blade, beside saw disc grinding for teeth holder and segment brazing by welding machine,the diamond segments also need to sharpening in three sides by segments sharpening machine, the automatic sharpening machine for circular diamond saw blade.



    For the automatic circular diamond saw blade segment teeth sharpening machine, there are open type and enclosed type for your request.



    Here under is the technical specification



    No Name Data Remark
    1 Saw blade diameter 50-600mm
    2 Sharpening type Dry grinding
    3 Saw blade loading Manually
    4 Working efficiency 3-5 min/pc For dia 600mm
    5 Sharpening position Three sides of segment
    6 Grinding wheel compensation Automatic compensation
    7 Grinding size 250x32x25mm
    8 Dedusting mode Full closed dedusting
    9 Parameter control Touch screen setting English interface





    Automatic Arc Grinder for Diamond Segment

    The segments arc grinding machine is new equipment of arc grinding for diamond segments, which is more convenient of diamond segment for high frequency welding after grinding, so that the diamond saw blade is more beautiful, better strength.



    Functions and Features:

    1. This product of high precision is controlled by computer and operated with human-machine interface and the operation process is simple.

    2. It can be automatically covered if grinding wheel is abraded or grinding force is overload, in addition, its pressure is constant.

    3. It can transform constant grinding force control model, one model of its various choice models.

    4. Automatically install various grinding models, such as precision grinding (twice), high efficiency grinding (once).

    5. Automatically measure the grinding wheel diameter, orientate work origin.

    6. The mass of grinding wheel and bit tool can be adjusted from 0.5 to 10Kg

    7. It imitates arc for maximized overlap ratio between arc and blade.

    8. Vibration plate automatically delivers diamond segments.



    Specification

    No Name Data Remark
    1 Grinding material Diamond segments
    2 Air pressure 0.5-0.7Mpa
    3 Grinding speed 3-4pc/s
    4 Power 2.1Kw
    5 Weight 350kg



    Enclosed automatic circular diamond saw blade segment teeth sharpening and grinding machine

    Enclosed automatic circular diamond saw blade segment teeth sharpening and grinding machine
