| Place of Origin: | China |
| Brand Name: | EF |
| Certification: | No |
| Model Number: | TCT |
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | 260USD/PC |
| Packaging Details: | seaworthy package |
| Delivery Time: | 30 days |
| Payment Terms: | T/T |
| Supply Ability: | 500PCS/month |
| Body Material: | 8CrV | Tips: | Carbide |
|---|---|---|---|
| Diameter: | 660mm |

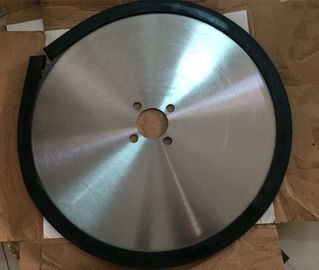

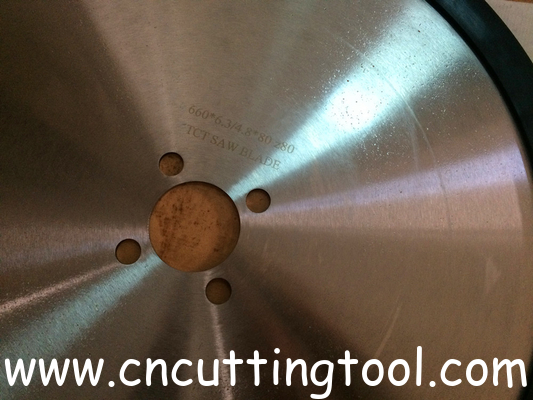

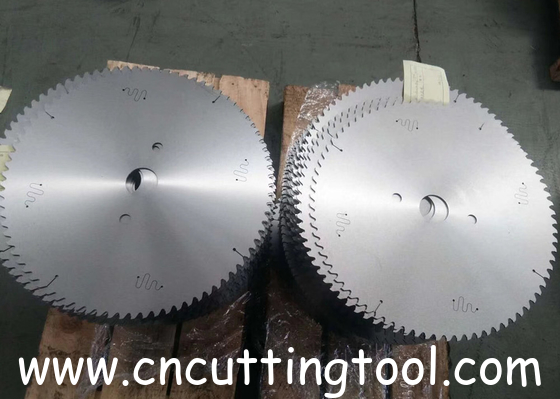

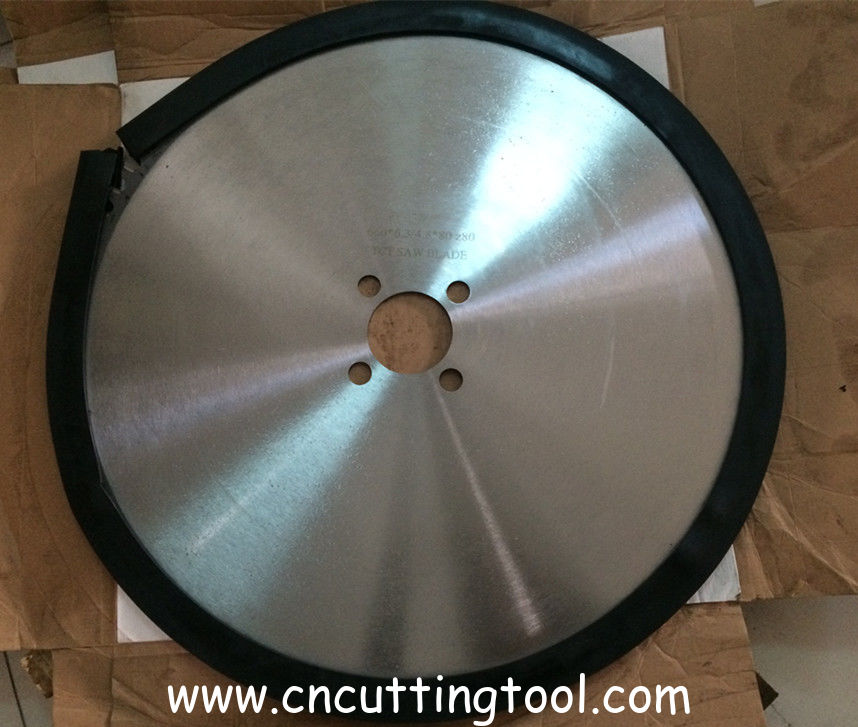

High cutting speed tungsten carbide tipped circular cold saw blade
Using condition: Tungsten carbide circular saw blade is suitable for use at room temperature, with a dedicated cutting saw supporting the use of a cutting saw blade.
Raw material: the TCT circular saw blade material is 8CrV, 75Cr1, 80CrV2 and other high-quality alloy tool steel through heat treatment, machining processes.

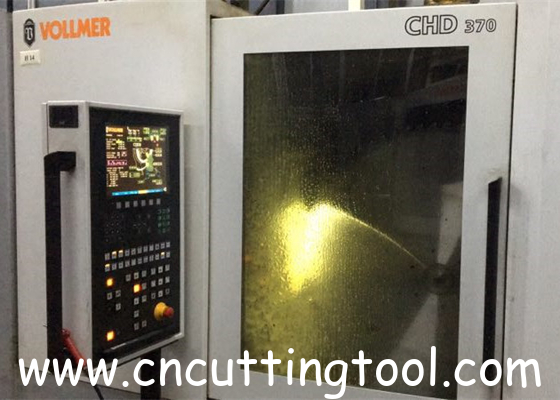

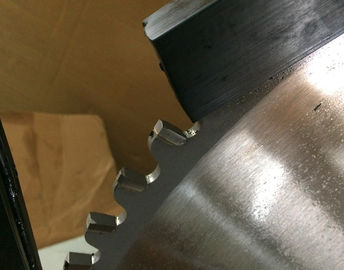

To achieve good mechanical properties, in saw blade outer diameter with brazing fine particles or ultrafine particles carbide segments, and then through the precision tooth VOLLMER grinding machine grinding out the required tooth profile.
Application: According to the different cutting parts, it is generally divided into tube cutting, tube row cutting, rail cutting, non-ferrous metal cutting, steel pipe CNC profiling sawing saw blade, ultra-thin fast cutting saw blade and so on.
Carbide Tipped circular Saw Blade (TCT) Used for Round Steel Bar
It is mainly used for cutting round steel bar in the cold condition; the cutting diameter can reach 450mm. It also can be used for cutting the steel rails of normal temperature and used with various kinds of cutting machines in and abroad.
| Diameter | Bore Hole | Diameter of Pin Hole | PCD of Pin Holes | Tickness | Cutting width | Number of Teeth |
| 540 | 60 | 22 | 120 | 5.0 | 6.5 | 60,80 |
| 830 | 100 | 25 | 200 | 5.5 | 7.0 | 70,100 |
| 965 | 100 | 30 | 250 | 6.5 | 8.0 | 50,60 |
| 1080 | 100 | 30 | 250 | 6.5 | 8.0 | 60,80 |
| 1250 | 100 | 30 | 250 | 7.0 | 8.5 | 50,80 |
| 1500 | 100 | 30 | 250 | 8.0 | 9.5 | 50,80 |
Carbide-Tipped circular Saw Blade (TCT) for the Bar Material
It is mainly used for cutting aluminum bar materials with different sections for Aluminum processing factory. The cutting diameter can reach 700mm, and the thickness of the flat aluminum bar can reach 700mm.
| Diameter | Bore hole | Diameter of Pin Hole | PCD of Pin Holes | Thickness | Cutting width | Number of Teeth |
| 700 | 80 | 18 | 180 | 4.5 | 6.5 | 64,72 |
| 810 | 80 | 20 | 200 | 5.0 | 7.0 | 60,72 |
| 1000 | 100 | 20 | 220 | 5.5 | 7.5 | 72,80 |
| 1200 | 100 | 22 | 250 | 6.5 | 8.5 | 80,100 |
| 1600 | 200 | 25 | 300 | 8.5 | 10.5 | 72,80 |
| 1800 | 240 | 30 | 350 | 10.5 | 14.5 | 60,72 |
| 2000 | 240 | 30 | 350 | 11.0 | 15.0 | 70,100 |
| 2200 | 240 | 30 | 350 | 11.5 | 15.5 | 90,120 |
Non- ferrous metals
Diameter (mm) | Kerf (mm) | Thickness (mm) | Bore hole (mm) | Pin hole (mm) | PCD (mm) | Teeth number |
| 310 | 2.1 | 1.7 | 40 | 12 | 60 | 50/110 |
| 500 | 3.8 | 2.8 | 32 | 12 | 100 | 80 |
| 610 | 5.2 | 4.2 | 50 | 15 | 120 | 90/120 |
| 700 | 6.5 | 4.5 | 80 | 18 | 180 | 64/72 |
| 800 | 7.0 | 5.5 | 80 | 15 | 150 | 100/120 |
| 1000 | 8.0 | 6.5 | 100 | 18 | 200 | 120/160 |
| 1200 | 8.5 | 6.5 | 100 | 22 | 250 | 80/100 |
| 1250 | 8.0 | 6.5 | 100 | 22 | 250 | 180/200 |
| 1400 | 8.5 | 7.0 | 100 | 22 | 250 | 200/220 |
| 1560 | 11 | 9.5 | 100 | 30 | 250 | 81/240 |
| 1600 | 10.5 | 8.5 | 200 | 25 | 300 | 72/80 |
| 1800 | 10.5 | 9 | 150 | 30 | 300 | 230/250 |
| 2000 | 15 | 11 | 240 | 30 | 350 | 70/100 |
| 2200 | 15.5 | 11.5 | 240 | 30 | 350 | 90/120 |
