| Place of Origin: | China |
| Brand Name: | EFFEMAX |
| Certification: | No |
| Model Number: | automatic |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | 10000-30000USD/SET |

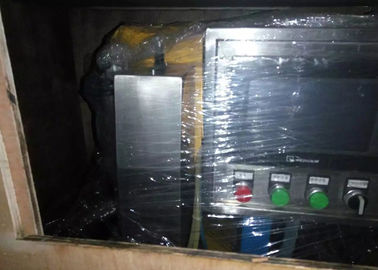

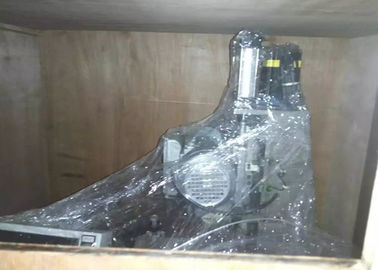

| Packaging Details: | fumigation free wooden case |
| Delivery Time: | 25 days |
| Payment Terms: | T/T |
| Supply Ability: | 50 set/m |
| Diameter: | 250-700 | Application: | Brazing Diamond Segment |
|---|---|---|---|
| Type: | Automatic |

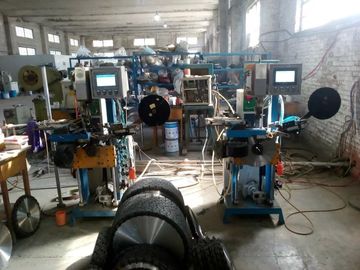

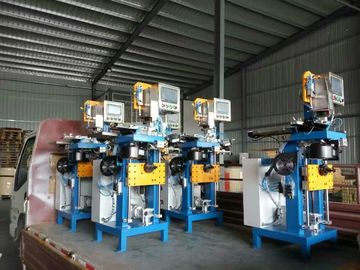

Auto control diamond segments high frequency brazing machine for stone cutting saw blade
This machine uses touch screen control and HMI operation, automatically control of welding time, equipped with tank photoelectric detection system, positioning and rotating saw blade body and feed segment and wire automatically, high accuracy positioning, feed wire second time for last tooth to ensure the welding strength. Bilateral independent fans to improve cooling speed, automatic alarm display for easy troubleshooting. It can complete welding process automatically and easy to operate.
Features

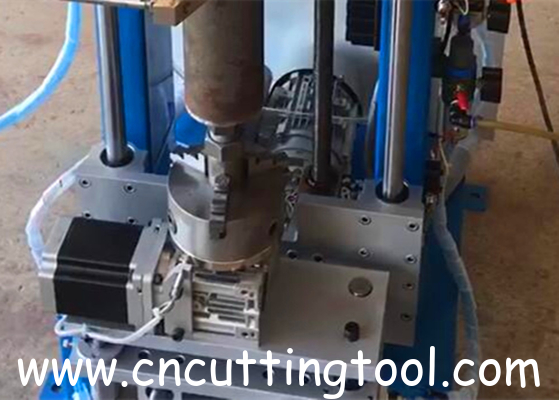

Segment and saw disc automatic centering
Configure water tank photoelectric system, automatic positioning saw blade and automatic alarm for fault running
Adjustable for R/F segments, L/T segments, brazing time, cooling time, brazing tooth number, skip brazing according to actual demand.
Automatic feeding solder, brushing flux, automatic centering,at the last segment, it will feed solder two times to ensure the end teeth brazing strength
With touch screen control and HMI operation
Easy to operate and maintaince
Applicate for brazing segments for stone cutting saw blade
Specification
| Name | Unit | Data |
| Brazing Diameter | mm | 280-700 |
| Verticality | mm | ±0.03 |
| Brazing capacity | Pc/h | 250-700 |
| Air pressure | Mpa | 0.6 |
| Water pressure | Mpa | 0.2 |
| Power | W | 1200 |
| Water consumption | m3/h | 1.5 |
| Size | mm | 1000x810x1550 |
| Voltage | V | 220 |
| Weight | kg | 230 |
Note: this machine is not including high frequency induction heater, air compressor and water pump
High frequency induction heater
Features
High frequency voltage option: 220V, 380V, 415V, 440V
Automatic tracking working frequency, good adaptability to inductor
Low working frequency and high power, good heat permeability
With protection function of overvoltage, overcurrent, overheat, lack of water, lack of phase etc.
Specification
| Name | Data |
| Voltage | 220V/50Hz |
| Work voltage range | 160V/250V |
| Output power | 20kW |
| Max vibration power | More than and equal to 20kW |
| Vibration frequency | 50-150KHz |
| Efficiency | 90% |
| Cooling water flow rate | 5L/Min (0.2Mpa) |
| Cooling water pressure | 0.2-0.3Mpa |
| Water temperature protection point | 50 degree |
| Dimension | 460x190x380 |
| Load duration | 100% |
