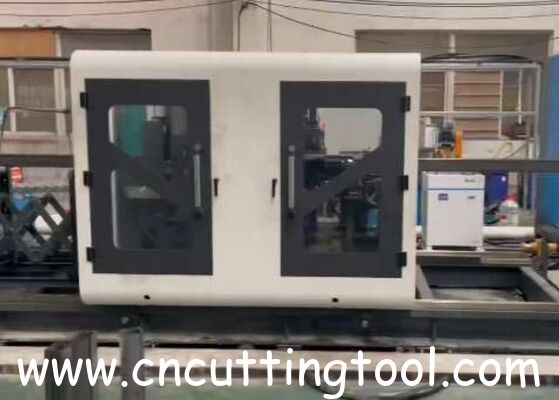

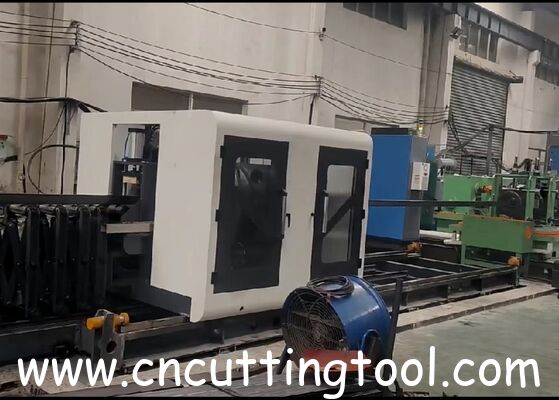

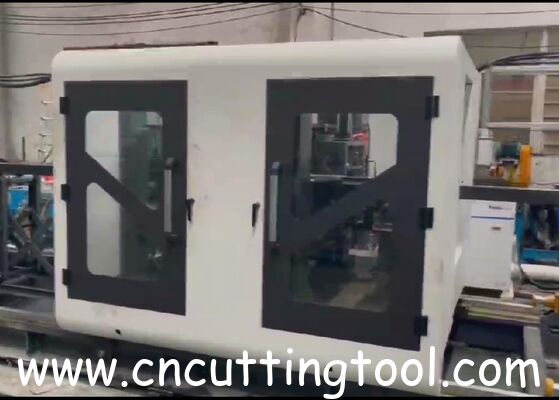

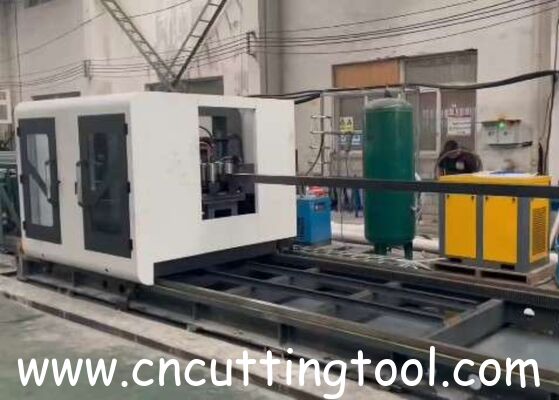

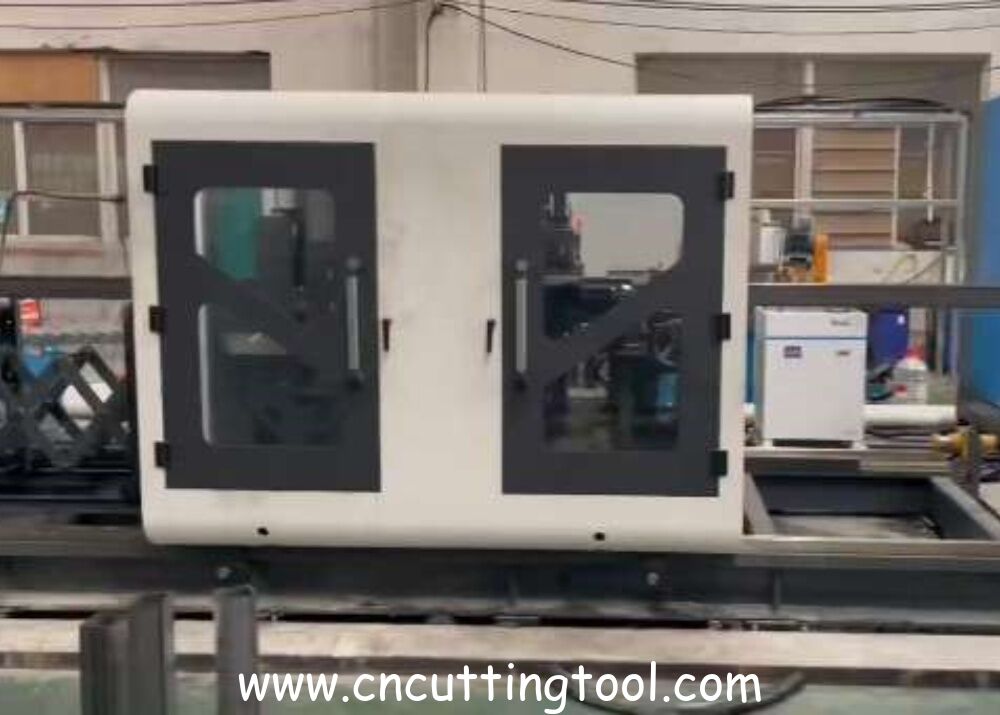

100x100 CNC laser cut flying saw machine for mild steel pipe and tube

100x100 CNC laser cut flying saw machine for mild steel pipe and tube

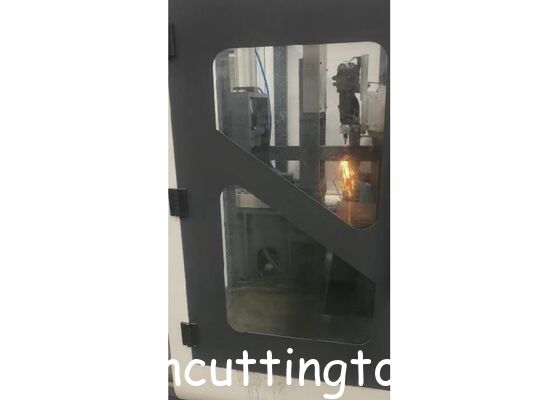

Laser pipe cutting machine is CNC equipment that uses high-energy laser beam to perform high-precision, high-efficiency, and non-contact cutting of metal pipes. The laser pipe cutting machine is an advanced metal processing equipment that instantly melts/vaporizes pipes (such as round pipes, square pipes, and special-shaped pipes) by focusing the fiber laser beam, and cooperates with the CNC system to achieve complex contour cutting. Compared with traditional punching or plasma cutting, its advantages are: high precision, small thermal impact, no need to open molds, and high automation integration.

Cutting steel pipe materials and product range:

Cutting steel pipe material: Q195 Q235 Q355

Product range: round tube: diameter range 90-360mm, thickness range: 0.8-7mm

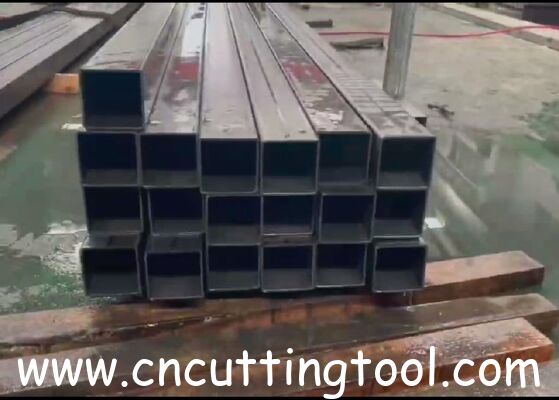

Square tube: Square tube range F60*60-F300*300mm, thickness range: 0.8-7mm

Rectangular tube: square tube range J80*100-J200*300mm, thickness range: 0.8-7mm

Production line feeding direction: feeding;

Highly available:

Height from the bottom of the saw seat to the rolling bottom line mm (the lowest point of the tube);

Sawing steel pipe length: 1000mm～12000mm;

Length tolerance: 6000±1.5mm (requires production line speed fluctuation not to exceed 5%);

Burr height after cutting: Max: 0.2 mm;

On-site voltage AC380V, 5W, 3PH, 50HZ
