| Place of Origin: | China |
| Brand Name: | EFFEMAX |
| Certification: | CE |
| Model Number: | E2300 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | 50000-60000USD/SET |
| Packaging Details: | fumigation free wooden case |
| Delivery Time: | 35 days |
| Payment Terms: | T/T |
| Supply Ability: | 10 set/m |
| Max Diameter: | 2300mm | Usage: | Rolling And Tension For Steel Disc |
|---|---|---|---|
| Application: | Diamond Saw Blade Manufacture |

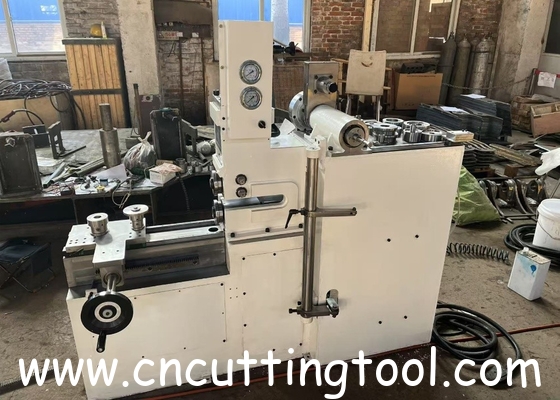

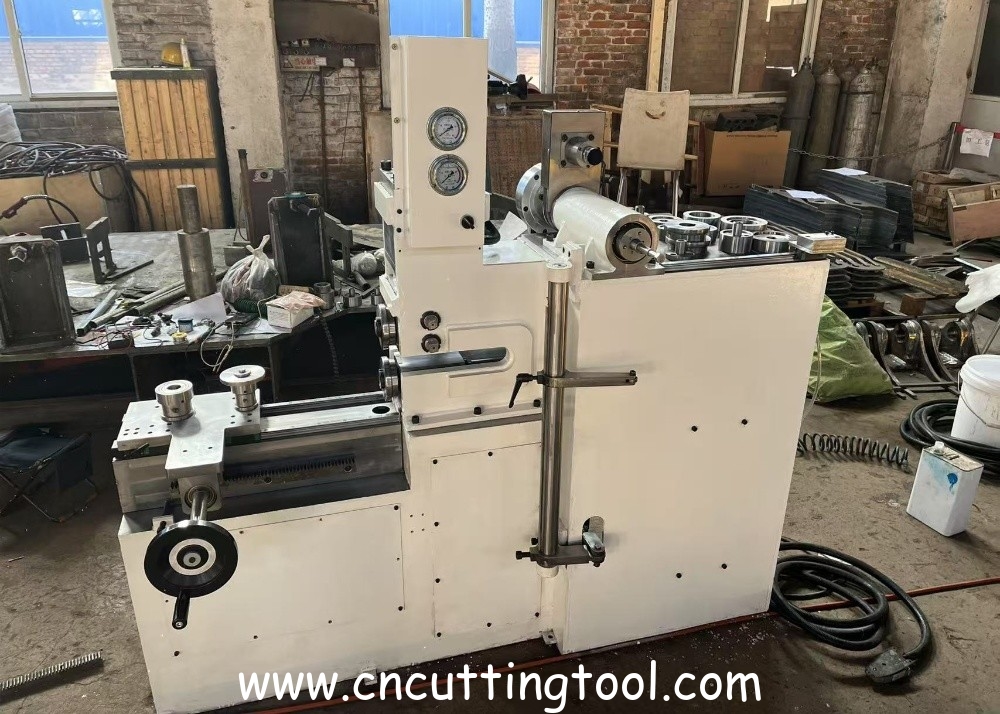

Circular saw blade tension and rolling machine hydraulic model
Product description
Saw blade tension and rolling machine is necessary equipment in circular saw blade manufacturing and reconditioning process. This machine is consist of two parts, rolling and testing, it is a special equipment which integrated with technology of computer, laser measuring, positioning, hydraulic etc, and featured with simple appearance and easy operation.
This saw blade tension and rolling machine is mainly apply to circular saw blank run out testing, tension testing and correcting, and the basic structure include: machine base, tension apply mechanism, rolling part, circular saw blade rolling support, measuring device, additional device, run out testing system, hydraulic system, electric system.
Tension test and rolling machine is very necessary for circular saw blades, include stone cutting diamond saw blades, metal cutting saw blades and also TCT saw blades.
But as the metal cutting saw blades thickness is thicker than general diamond saw blades and also taper saw blade is special in thickness, so the traditional diamond tension test machine is not suitable and good enough in daily testing work, then we develop this metal cutting blade specified tension test and rolling machine.
Advantage
Large diameter range from 1000mm to 2500mm
Thickness range should design as per demand, could reach 16mm or thicker

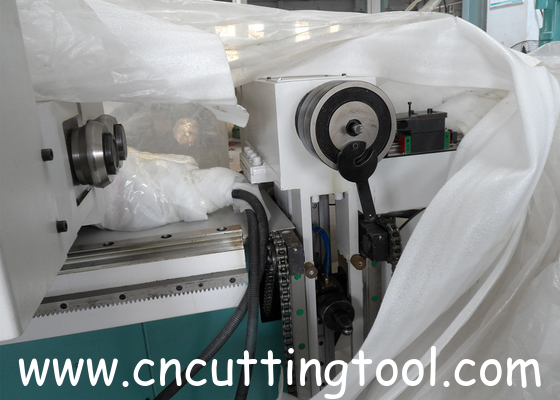

The rolling head can swing and position adjusts as per blade condition.

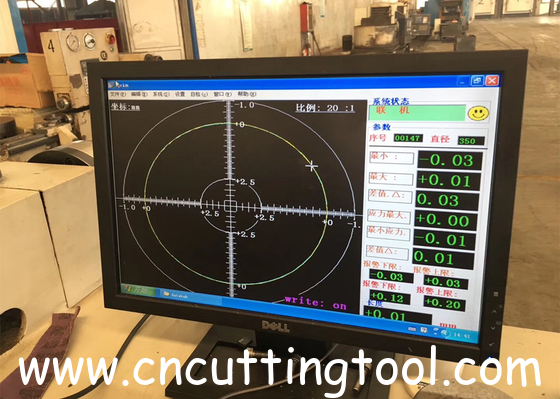

Laser measurement high precision to 0.01mm
The tension and deflection values are shown visually
The dial displays pressure, which is adjustable

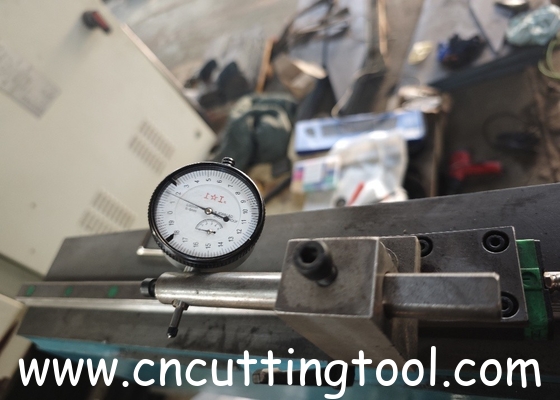

Micrometer assisted detection of concentric circles

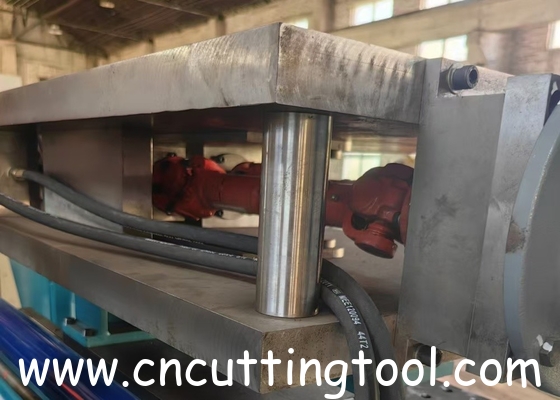

Fully hydraulic system, without pneumatic components
Direct measuring of zero point
Software is available in English
Solid frame and components

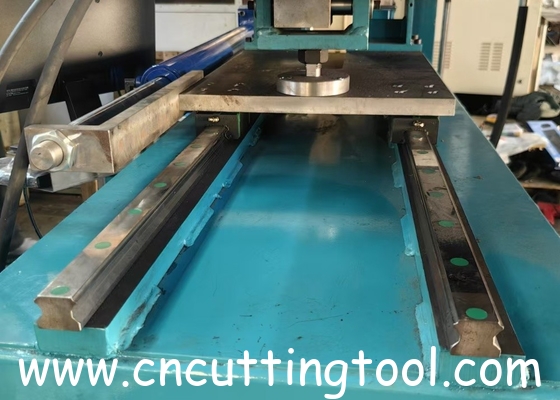

Linear Rail Guides
With these advantages, this machine will be a good hand in your hot saw blade production and re-conditioning work.
The Tension machine is standard equipment for high-end saw blades, which solves the problem of saw blade cutting vibration, and solves the problem of adjusting different tensions at different speeds. The structure is made of quenched materials, which are solid and durable, and are hand-polished.
Main function
Run out testing for saw blades and steel cores
Tension test for saw blades and steel cores
Rolling work for saw blades and steel cores tension adjust
Technical data
| Technical Data | Type: E1000 |
| Max testing thickness (mm) | 15 |
| Max testing diameter (mm) | 1000 |
| Mini testing diameter (mm) | 200 |
| Dimensions (LxWxH) (mm) | 2210x1380x1500 |
| Weight (kg) | 900 |
| Max Rolling Force (KN) | 50 |
| Voltage Rating (V) | 380/400 |
| Frequency (Hz) | 50/60 |
| Power (KW) | 3.5 |
| Pneumatic connection bar | 6 |
| Technical Data | Type: E2000 |
| Max testing thickness (mm) | 15 |
| Max testing diameter (mm) | 2000 |
| Mini testing diameter (mm) | 200 |
| Dimensions (LxWxH) (mm) | 2710x1380x1500 |
| Weight (kg) | 1100 |
| Max Rolling Force (KN) | 100 |
| Voltage Rating (V) | 380/400 |
| Frequency (Hz) | 50/60 |
| Power (KW) | 4 |
| Pneumatic connection bar | 6 |
| Technical Data | Type: E3000 |
| Max testing thickness (mm) | 15 |
| Max testing diameter (mm) | 3000 |
| Mini testing diameter (mm) | 800 |
| Dimensions (LxWxH) (mm) | 4400x1600x1800 |
| Weight (kg) | 1700 |
| Max Rolling Force (KN) | 100 |
| Voltage Rating (V) | 380/400 |
| Frequency (Hz) | 50/60 |
| Power (KW) | 4 |
| Pneumatic connection bar | 6 |
