    Product Details:

    Place of Origin: China
    Brand Name: EFFEMAX
    Certification: CE
    Model Number: E2500

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: USD30000-60000/SET
    Packaging Details: wooden case
    Delivery Time: 40 work days
    Payment Terms: T/T
    Supply Ability: 50 set/ month
    Contact Now
    Detailed Product Description

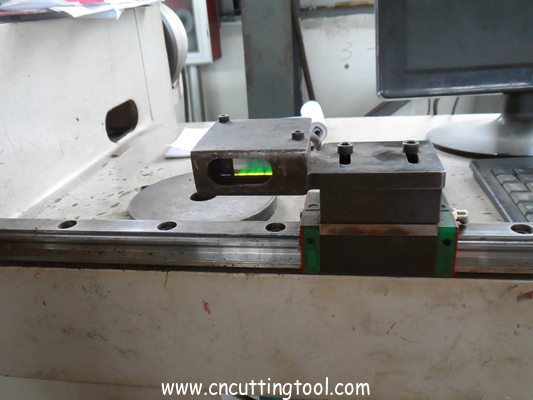

    Configuration: Laser Probe Application: Max Diameter 2500mm
    Usage: Tension And Rolling Of Saw Blade And Saw Disc

    2500 tension and rolling machine which solve metal saw blade vibration in cutting





    Description




    The tension machine is standard equipment for high-end saw blades, which solves the problem of saw blade cutting vibration, and solves the problem of adjusting different tensions at different speeds. The main components are all imported from Germany with high precision, and the structure is made of quenched materials, which are solid and durable, and are hand-polished.

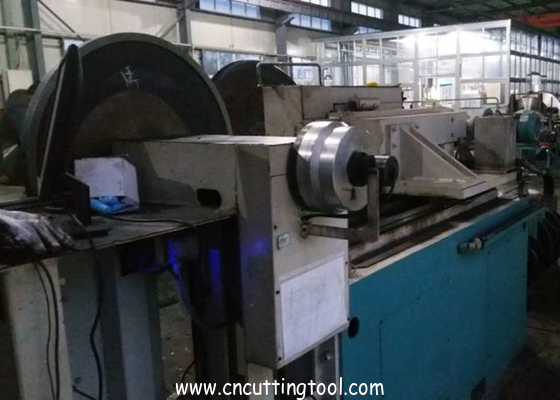

    The tension testing, rolling and straight machine is necessary equipment in circular saw blade manufacturing process. This machine is consist of two parts, rolling and testing, it is a special equipment which integrated with technology of computer, laser measuring, positioning, hydraulic and pneumatic etc, and featured with simple appearance and easy operation.

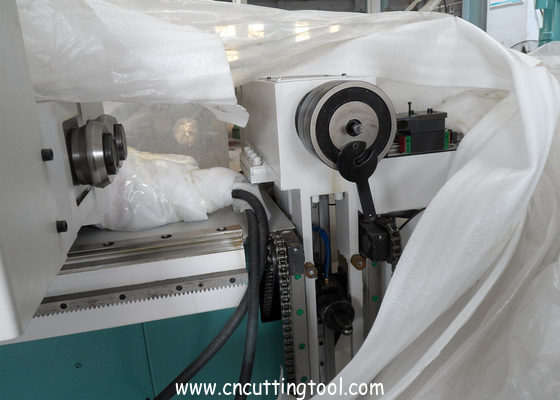

    This machine is mainly apply to circular saw blank run out testing, tension testing and straightening, and the basic structure include ten parts, machine base, tension apply mechanism, rolling part, circular saw blade rolling support, measuring device, additional device,run out testing system, hydraulic system, pneumatic system, electric system.



    Function: Run out testing for saw blades and steel cores Tension testing for saw blades and steel cores Straightening for saw blades and steel cores and gang saw Max testing thickness: 15mm Testing range: 150mm-3000mm Voltage:380/400V Frequency:50/60Hz



    Application




    What kind of customers need to configure the tension machine


    Saw blade industry, diamond tool manufacturer, quary industry, stone cutting industry, metal saw blade repairing.



    As the saw blade may change in stress during the manufacturing, use or repair process and affect the use effect, it needs to be tested and adjusted by the stress machine.



    The tension machine testing range of saw blade is from 180mm-3600mm, each model has a specific range of saw blade diameters, and can also be customized according to customer requirements



    Main function

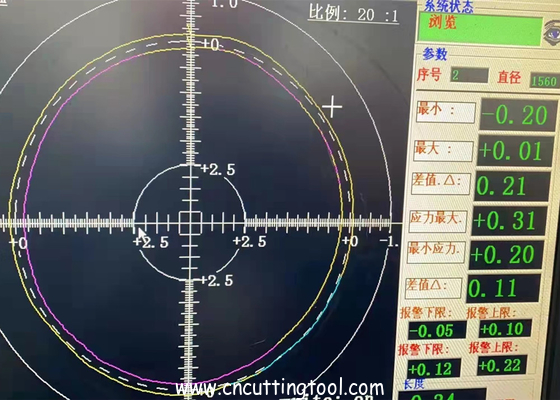

    1. Run out testing for saw blades and steel cores
    2. Tension test for saw blades and steel cores
    3. Straightening for saw blades and steel cores and gang saw



    Technical data






    Technical Data Type: E1000
    Max testing thickness (mm) 15
    Max testing diameter (mm) 1000
    Mini testing diameter (mm) 200
    Dimensions (LxWxH) (mm) 2210x1380x1500
    Weight (kg) 900
    Max Rolling Force (KN) 50
    Voltage Rating (V) 380/400
    Frequency (Hz) 50/60
    Power (KW) 3.5
    Pneumatic connection bar 6




    Technical Data Type: E2000
    Max testing thickness (mm) 15
    Max testing diameter (mm) 2000
    Mini testing diameter (mm) 200
    Dimensions (LxWxH) (mm) 2710x1380x1500
    Weight (kg) 1100
    Max Rolling Force (KN) 100
    Voltage Rating (V) 380/400
    Frequency (Hz) 50/60
    Power (KW) 4
    Pneumatic connection bar 6





    Technical Data Type: E3000
    Max testing thickness (mm) 15
    Max testing diameter (mm) 3000
    Mini testing diameter (mm) 800
    Dimensions (LxWxH) (mm) 4400x1600x1800
    Weight (kg) 1700
    Max Rolling Force (KN) 100
    Voltage Rating (V) 380/400
    Frequency (Hz) 50/60
    Power (KW) 4
    Pneumatic connection bar 6
    2500 tension and rolling machine which solve metal saw blade vibration in cutting
    2500 tension and rolling machine which solve metal saw blade vibration in cutting
    2500 tension and rolling machine which solve metal saw blade vibration in cutting
