Diamond tools brazing center segments efficient automatic welding machine
This machine uses touch screen control and HMI operation, automatically control of welding time, equipped with tank photoelectric detection system, positioning and rotating saw blade body and feed segment and wire automatically, high accuracy positioning, feed wire second time for last tooth to ensure the welding strength. Bilateral independent fans to improve cooling speed, automatic alarm display for easy troubleshooting. It can complete welding process automatically and easy to operate.
Features:

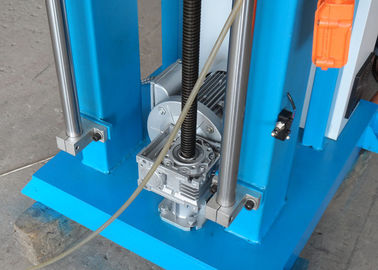

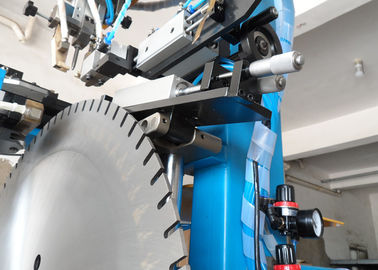

Segment and saw disc automatic centering

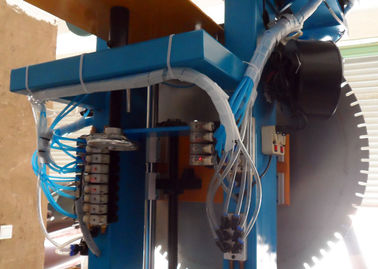

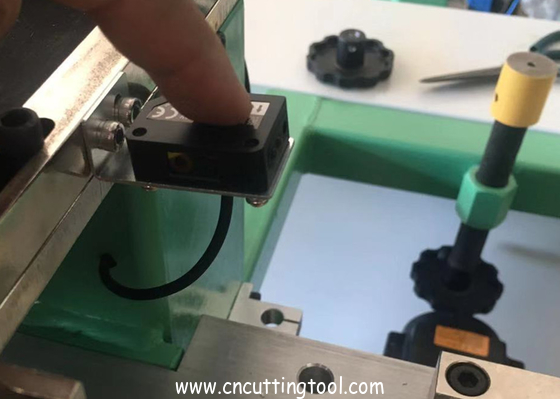

Configure water tank photoelectric system, automatic positioning saw blade and automatic alarm for fault running
Adjustable for R/F segments, L/T segments, brazing time, cooling time, brazing tooth number, skip brazing according to actual demand.

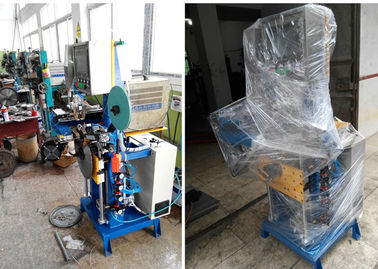

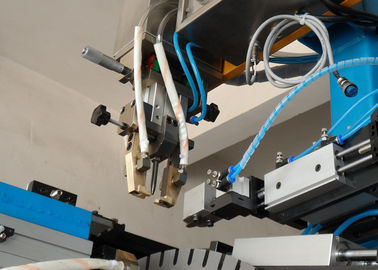

Automatic feeding solder, brushing flux, automatic centering,at the last segment, it will feed solder two times to ensure the end teeth brazing strength
With touch screen control and HMI operation
Easy to operate and maintaince
Applicate for brazing segments for stone cutting saw blade
Automatic Welding Lifting Rack for Diamond Saw Blades
This equipment is a kind of automatic large welding rack, who welded together with diamond segments and saw blades’ body by high frequency welding. The device is mainly suitable for welding diamond saw blades of 800-3200mm.
Functions and Features:
1. Pneumatic push tooth, automatic alarm display for running the fault.
2. The parameters of related R/F-segment, L/T-segment and saw, welding time, welding gear, cooling time, skip welding, can be adjusted according to actual needs.
3. High degree of automation, high positioning accuracy, automatically sending segment, automatically feeding solder wire, automatic brushing flux.
Specification
Name |
Unit |
Data |
Welding Diameter |
mm |
Φ800-3200 |
Welding Verticality Tolerance |
mm |
±0.03 |
Welding Capacity |
pc/h |
180-460 |
Air Pressure |
mpa |
0.6 |
Hydraulic Pressure |
mpa |
0.2 |
Power |
w |
1400 |
Water consumption |
m³/h |
1.5 |
Voltage |
V |
220V/50Hz |
Weight |
kg |
320 |
Size |
mm |
1100×1050×2500 |
Automatic Welding Lifting Rack for Diamond Saw Blades
This automatic welding machine is mainly used for welding segments on tooth of diamond steel core with diameter from 800-2200mm.
Features
Push tooth by pneumatic cylinder, automatic alarm for fault running
Adjustable for R/F segments, L/T segments, welding time, cooling time, welding tooth number, skip welding according to actual demand.
Automatic feeding solder, feeding segments, brushing flux, positioning with high accuracy
With touch screen control and HMI operation
Easy to operate and maintaince
Applicate for welding segments for stone cutting saw blade
Specification
Name |
Unit |
Data |
Welding Diameter |
mm |
800-2200 |
Verticality |
mm |
±0.03 |
Welding capacity |
Pc/h |
180-460 |
Air pressure |
Mpa |
0.6 |
Water pressure |
Mpa |
0.2 |
Power |
W |
1200 |
Water consumption |
m3/h |
1.5 |
Size |
mm |
1000x950x2445 |
Voltage |
V |
220 |
Weight |
kg |
270 |
Automatic Welding Lifting Rack for Diamond Saw Blades
This machine uses touch screen control and HMI operation, automatically control of welding time, equipped with tank photoelectric detection system, positioning and rotating saw blade body and feed segment and solder automatically, high accuracy positioning, feed solder second time for last tooth to ensure the welding strength. Bilateral independent fans to improve cooling speed, automatic alarm display for easy troubleshooting.
Features
Segment and saw disc automatic centering
Configure water tank photoelectric system, automatic positioning saw blade and automatic alarm for fault running
Adjustable for R/F segments, L/T segments, welding time, cooling time, welding tooth number, skip welding according to actual demand.
Automatic feeding solder, brushing flux, automatic centering, at the last segment, it will feed solder two times to ensure the end teeth welding strength
With touch screen control and HMI operation
Easy to operate and maintaince
Applicate for welding segments for stone cutting saw blade
Specification
Name |
Unit |
Data |
Welding Diameter |
mm |
280-1100 |
Verticality |
mm |
±0.03 |
Welding capacity |
Pc/h |
250-700 |
Air pressure |
Mpa |
0.6 |
Water pressure |
Mpa |
0.2 |
Power |
W |
1200 |
Water consumption |
m3/h |
1.5 |
Size |
mm |
1000x810x1550 |
Voltage |
V |
220 |
Weight |
kg |
230 |
