    Diameter: 800-3000mm Application: Welding Diamond Segment
    Type: Automatic Control: Touch Screen
    Brazing: Induction Heater

    Automatic welding lifting rack and high frequency induction heating machine



    This equipment is a kind of automatic large welding rack, who welded together with diamond segments and saw blades’ body by high frequency welding. The device is mainly suitable for welding diamond saw blades of 800-3200mm.



    Functions and Features



    1. Pneumatic push tooth, automatic alarm display for running the fault.

    2. The parameters of related R/F-segment, L/T-segment and saw, welding time, welding gear, cooling time, skip welding, can be adjusted according to actual needs.

    3. High degree of automation, high positioning accuracy, automatically sending segment, automatically feeding solder wire, automatic brushing flux.



    Process



    The process of electric induction brazing is shown and explained while watching the machine in action that automates parts of this process, with the aid of manually pushing buttons at the right time and manually adding necessary materials for the brazing of the diamond blade to be completed. Diamond blades are used for cutting materials that are especially tough to cut through, such as stone, concrete or asphalt. Segments eventually wear out with heavy use and then need to be replaced to make the blade effective again for cutting through tough materials. This video shows the process of soldering new diamond segments around the outside edge of a large blade.

    After stripping it, will clean it with an air sander, it is important that the surface is clean when soldering so all will bond to it, now it will go through the heat cycle, 24 seconds, segment gets red, not it is going through the cooling cycle, the indexer, clamp the blade, then it will go through the cycle again, add flux, solder won’t stick without the flux, placing segment, heating both sides at the same time, put less heat on the blade, good consistency for the segment, minimal segment loss.





    Specification

    Name Unit Data
    Welding Diameter mm Φ800-3200
    Welding Verticality Tolerance mm ±0.03
    Welding Capacity pc/h 180-460
    Air Pressure mpa 0.6
    Hydraulic Pressure mpa 0.2
    Power w 1400
    Water consumption m³/h 1.5
    Voltage V 220V/50Hz
    Weight kg 320
    Size mm 1100×1050×2500



    Note: this machine is not including high frequency induction heater, air compressor and water pump



    High frequency induction heater



    Features:

    High frequency voltage option: 220V, 380V, 415V, 440V

    Automatic tracking working frequency, good adaptability to inductor

    Low working frequency and high power, good heat permeability

    With protection function of overvoltage, overcurrent, overheat, lack of water, lack of phase etc.



    Specification

    Name Data
    Voltage 220V/50Hz
    Work voltage range 160V/250V
    Output power 20kW
    Max vibration power More than and equal to 20kW
    Vibration frequency 50-150KHz
    Efficiency 90%
    Cooling water flow rate 5L/Min (0.2Mpa)
    Cooling water pressure 0.2-0.3Mpa
    Water temperature protection point 50 degree
    Dimension 460x190x380
    Load duration 100%








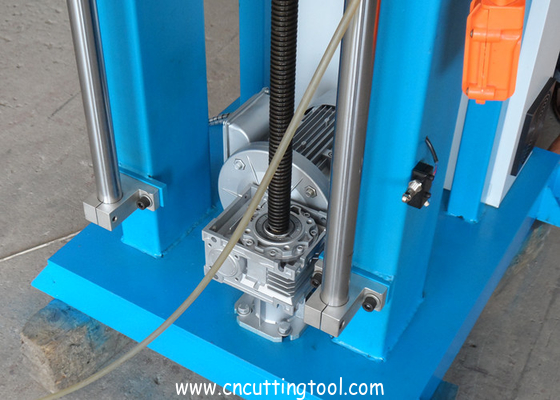

    Automatic welding lifting rack and high frequency induction heating machine



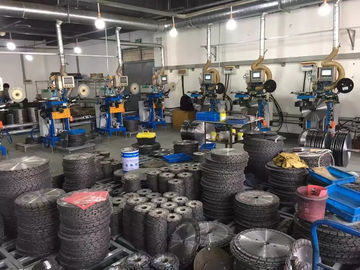

    Automatic welding lifting rack and high frequency induction heating machine

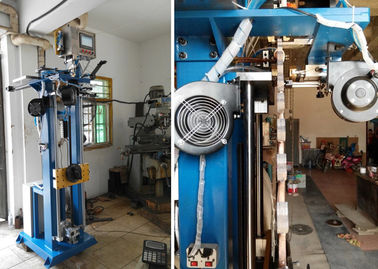

    Automatic welding lifting rack and high frequency induction heating machine

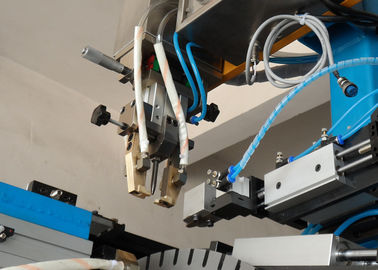

    Automatic welding lifting rack and high frequency induction heating machine

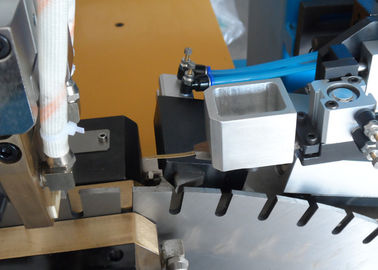

    Automatic welding lifting rack and high frequency induction heating machine

    Automatic welding lifting rack and high frequency induction heating machine
