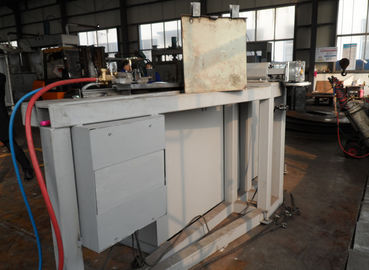

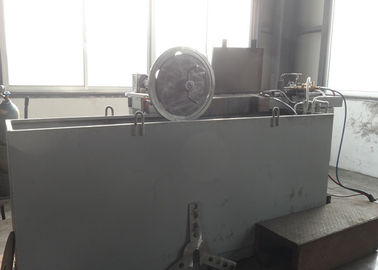

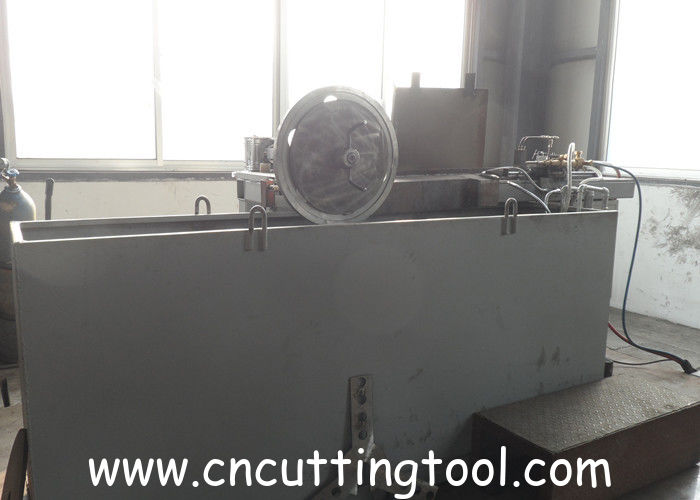

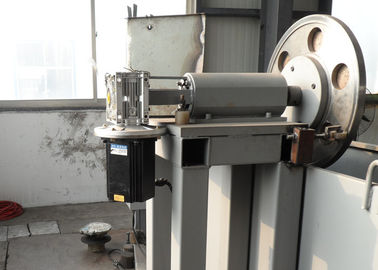

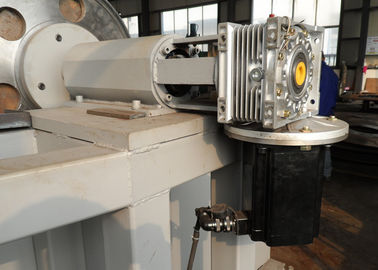

Circular saw balde tooth tip hardness flame hardening machine
Working principle
The workpiece can get a high hardness and wear resistance through the flame heating surface hardening, thereby improving the mechanical properties of the workpiece. As the heating rate of flame quenching is very high, the austenite grain is not easy to grow up and coarsening in a short time, so flame quenching temperature is much higher than ordinary quenching. To obtain a lighter hardened layer, can be used faster quenching speed, heating temperature to take the upper limit or take the lower limit in contray. The hardness and hardening depth of the flame quenching depends on the gas mixing ratio and the heating time.
Working process
The liquid oxygen and propane are converted into gas and conveyed to flame generator by means of a vaporizer. The flame generator is mounted on a movable rail and adjusts the position of the flame generator according to the thickness and diameter of the saw blade.After positioning, start the main shaft drive to rotate the workpiece, and then ignition, open the workpiece cooling water, adjust the flame by adjusting the inlet gas proportion of the flame generator, observe the workpiece heating depth, open quenching cooling water after arriving requirements.
Application and features
For tooth tip heat treatment of saw blade diameters 1000-2000 mm,
Thickness: 8 -16 mm with flame hardening
Extremely robust structure for long lasting, trouble free operation with minimum maintenance requirements because of a sturdy machine frame made as a welded assembly.
Unique burner design warrants reliable warming of the tooth tip to the spot with excellent visibility to the conversion process
Quick machining of the saw blade given by high cycle and advance speeds
Reliably prevents surface hardening of the tooth gullets and ensures reproducibly high hardening results (substantially superior to the induction hardening process)
Technical specification
Model | EFCH-2000 |
Blade out diameter (mm) | Ф1000-Ф2000 |
Hardness range | HRC30-HRC60 |
Max blade size (out diameter*thickness) | 2000*15.5 |
Spindle center height above floor(mm) | 1450 |
Oxygen working pressure(MPa) | 3 |
Propane working pressure(MPa) | 2.5 |
Air compressor workingpressure(MPa) | 0.3 |
Working voltage(V) | AC 380V/50Hz 3 phase |
Spindle center motor power(kw) | 2.0 |
Traverse motor power (kw) | 0.75 |
Pump power(kw) | 1.5 |
Total power (kw) | 4.05 |
Weight(about)(T) | 1.6 |
Size(LxWxH)(mm) | 2900*2020*1050 |
Note: The tehcnical data will be modified according to final design.
SCOPYE OF SUPPLY
Main machine | 1 set |
Traverse distance 800mm Traverse drive gear & rack |
|

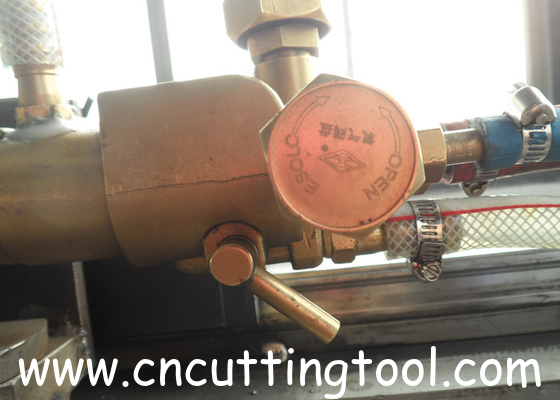

Flame generator (device) | 1 pc |

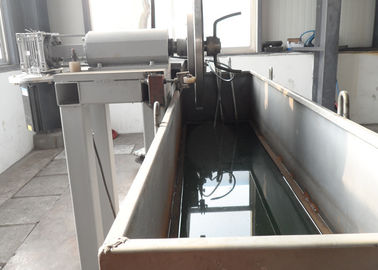

Cooling tank | 1 pc |
Water sping | 2 sets |
Air compressor | 1 set |
Electric control cabinet | 1 set |
