| Place of Origin: | China |
| Brand Name: | EFFEMAX |
| Certification: | No |
| Model Number: | saw disc |
| Minimum Order Quantity: | 10 pcs |
|---|---|
| Price: | 30-350USD |
| Packaging Details: | fumigation free wooden case |
| Delivery Time: | 30 days |
| Payment Terms: | T/T |
| Supply Ability: | 1000PCS/M |
| Material: | 8CrV 80CrV2 75Cr1 | Type: | Steel Core |
|---|---|---|---|
| Diameter: | 300-2000mm |

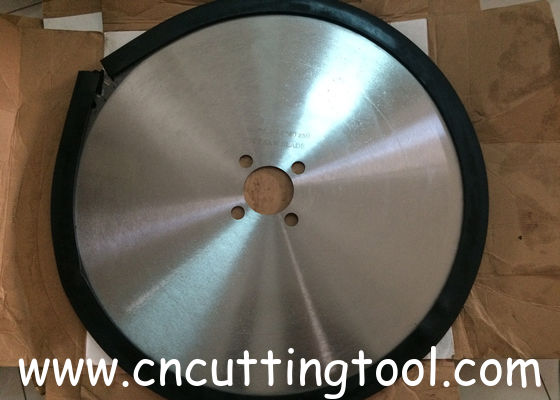

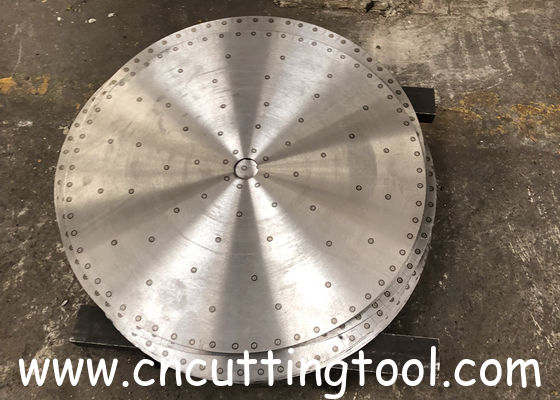

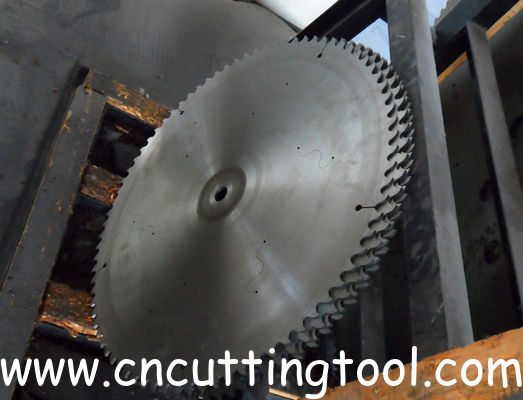

Aluminum cut tungsten carbide tipped saw disc and steel core with material 80CrV2

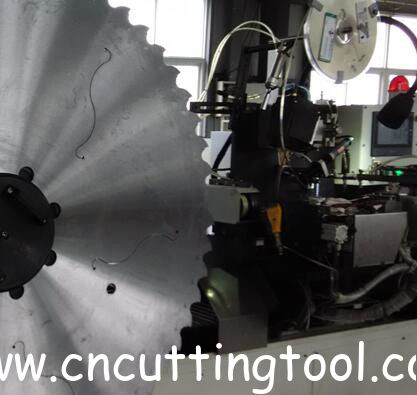

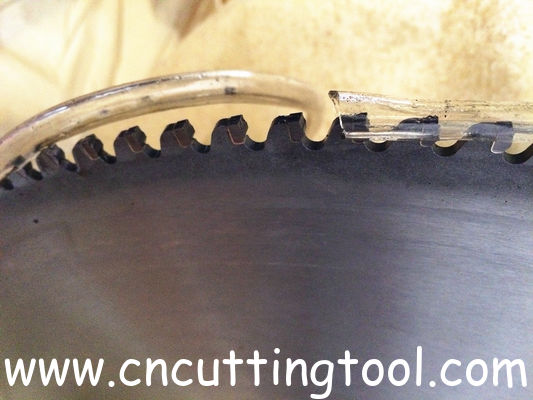

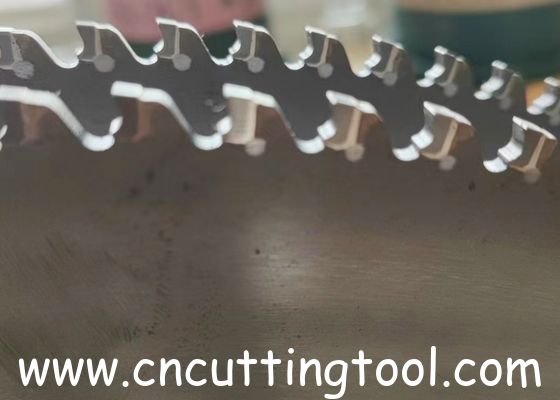

Tungsten carbide circular saw blade is suitable for use at room temperature, with a dedicated cutting saw supporting the use of a cutting saw blade, the circular saw blade material is 8CrV, 75Cr1, 80CrV2 and other high-quality alloy tool steel through heat treatment, machining processes, To achieve good mechanical properties, in saw blade outer diameter with brazing fine particles or ultrafine particles carbide segments, and then through the precision tooth VOLLMER grinding machine grinding out the required tooth profile, According to the different cutting parts, it is generally divided into steel tube cutting, steel tube row cutting, rail cutting, aluminum round bar cutting, aluminum profile cutting, non-ferrous metal cutting, steel pipe CNC profiling sawing saw blade, ultra-thin fast cutting saw blade and so on.
Carbide Tipped circular Saw Blade (TCT) Used for Round Steel Bar
It is mainly used for cutting round steel bar in the cold condition; the cutting diameter can reach 450mm. It also can be used for cutting the steel rails of normal temperature and used with various kinds of cutting machines in and abroad.
| Diameter | Bore Hole | Diameter of Pin Hole | PCD of Pin Holes | Tickness | Cutting width | Number of Teeth |
| 540 | 60 | 22 | 120 | 5.0 | 6.5 | 60,80 |
| 830 | 100 | 25 | 200 | 5.5 | 7.0 | 70,100 |
| 965 | 100 | 30 | 250 | 6.5 | 8.0 | 50,60 |
| 1080 | 100 | 30 | 250 | 6.5 | 8.0 | 60,80 |
| 1250 | 100 | 30 | 250 | 7.0 | 8.5 | 50,80 |
| 1500 | 100 | 30 | 250 | 8.0 | 9.5 | 50,80 |
Carbide Tipped Circular Saw Blade (TCT) Used for Seamless Steel Tube
It is mainly used for scaling-off cutting various kinds of tubes in the cooled and straigtened condition after hot rolling by the seamless steel tube factory. The saw blade can cut several steel tubes on a row at a time. It can be used with various kinds of cutting machines in and abroad.
| Diameter | Bore Hole | Diameter of Pin Hole | PCD of Pin Holes | Thickness | Cutting width | Number of Teeth |
| 800 | 80 | 25 | 180 | 5.0 | 6.5 | 80,100 |
| 1020 | 100 | 27 | 200 | 5.5 | 7.0 | 100,120 |
| 1120 | 100 | 30 | 250 | 5.5 | 7.0 | 130,150 |
| 1250 | 100 | 30 | 250 | 5.5 | 7.0 | 150,160 |
| 1400 | 100 | 30 | 250 | 6.5 | 8.0 | 160,180 |
| 1680 | 100 | 30 | 250 | 8.0 | 9.5 | 160,180 |
Carbide-tipped Circular Saw Blade (TCT) for Steel Tube Profiling Cutting Machines
The saw blade is made of special material and process, and it can be used for cutting large ERW straight welded tube and seamless steel tube. The cutting diameter can reach φ630mm, and the thickness of the tubes can reach 50mm. It has a lot of advantages, such as good cutting quality, energy-saving, safety, noise-reducing, etc. it is an advanced cutting tool which can be used with various kinds of steel tube profiling cutting machines in and abroad.
| Diameter | Bore Hole | Diameter of Pin Hole | PCD of Pin Holes | Thickness | Cutting width | Number of Teeth |
| 300 | 50 | 15 | 160 | 2.2 | 2.8 | 50,60 |
| 355 | 80 | 18 | 160 | 2.5 | 3.3 | 64,72 |
| 380 | 115 | 20 | 200 | 3.0 | 4.0 | 52,70 |
| 400 | 115 | 20 | 200 | 3.3 | 4.3 | 52,80 |
| 450 | 120 | 20 | 225 | 3.8 | 4.8 | 60,80 |
| 500 | 120 | 20 | 250 | 4.0 | 5.0 | 60,80 |
Carbide-Tipped circular Saw Blade (TCT) for the Bar Material
It is mainly used for cutting aluminum bar materials with different sections for Aluminum processing factory. The cutting diameter can reach 700mm, and the thickness of the flat aluminum bar can reach 700mm.
| Diameter | Bore hole | Diameter of Pin Hole | PCD of Pin Holes | Thickness | Cutting width | Number of Teeth |
| 700 | 80 | 18 | 180 | 4.5 | 6.5 | 64,72 |
| 810 | 80 | 20 | 200 | 5.0 | 7.0 | 60,72 |
| 1000 | 100 | 20 | 220 | 5.5 | 7.5 | 72,80 |
| 1200 | 100 | 22 | 250 | 6.5 | 8.5 | 80,100 |
| 1600 | 200 | 25 | 300 | 8.5 | 10.5 | 72,80 |
| 1800 | 240 | 30 | 350 | 10.5 | 14.5 | 60,72 |
| 2000 | 240 | 30 | 350 | 11.0 | 15.0 | 70,100 |
| 2200 | 240 | 30 | 350 | 11.5 | 15.5 | 90,120 |
Carbide-Tipped Circular Saw Blade (TCT) for Aluminum Sections
It is mainly used for scaling-off cutting the aluminum sections. It can be used with various kinds of extruding production lines whose capability are less than 12.5 thousand tons. The cutting diameter can reach 700mm.
| Diameter | Bore hole | Diameter of Pin Hole | PCD of Pin Holes | Thickness | Cutting width | Number of Teeth |
| 350 | 30 | 12 | 80 | 2.2 | 3.2 | 100,120 |
| 500 | 32 | 12 | 100 | 2.8 | 3.8 | 100,128 |
| 610 | 50 | 15 | 120 | 4.2 | 5.2 | 90,120 |
| 800 | 80 | 15 | 150 | 5.5 | 7.0 | 100,120 |
| 1000 | 100 | 18 | 200 | 6.5 | 8.0 | 120,160 |
| 1250 | 100 | 22 | 250 | 6.5 | 8.0 | 180,200 |
| 1400 | 100 | 22 | 250 | 7.0 | 8.5 | 200,220 |
| 1560 | 120 | 25 | 280 | 8.0 | 9.5 | 220,240 |
| 1800 | 150 | 30 | 300 | 8.5 | 10.0 | 230,250 |
