Automatic special radian grinding machine for diamand segments of diamond saw blade

Automatic special radian grinding machine for diamand segments of diamond saw blade

    • Automatic special radian grinding machine for diamand segments of diamond saw blade
    • Automatic special radian grinding machine for diamand segments of diamond saw blade
    • Automatic special radian grinding machine for diamand segments of diamond saw blade
    • Automatic special radian grinding machine for diamand segments of diamond saw blade
    • Automatic special radian grinding machine for diamand segments of diamond saw blade
    • Automatic special radian grinding machine for diamand segments of diamond saw blade
  • Automatic special radian grinding machine for diamand segments of diamond saw blade

    Product Details:

    Place of Origin: China
    Brand Name: EFFEMAX
    Certification: No
    Model Number: segments grinding

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: 15000-25000USD/SET
    Packaging Details: fumigation free wooden case
    Delivery Time: 30 days
    Payment Terms: T/T
    Supply Ability: 50 set/m
    Contact Now
    Detailed Product Description
    Type: Automaic Application: Grinding Segments
    Control: HMI

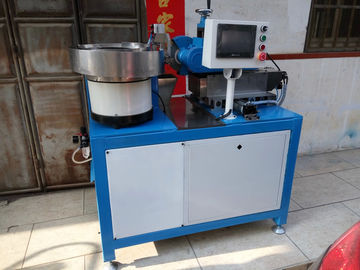

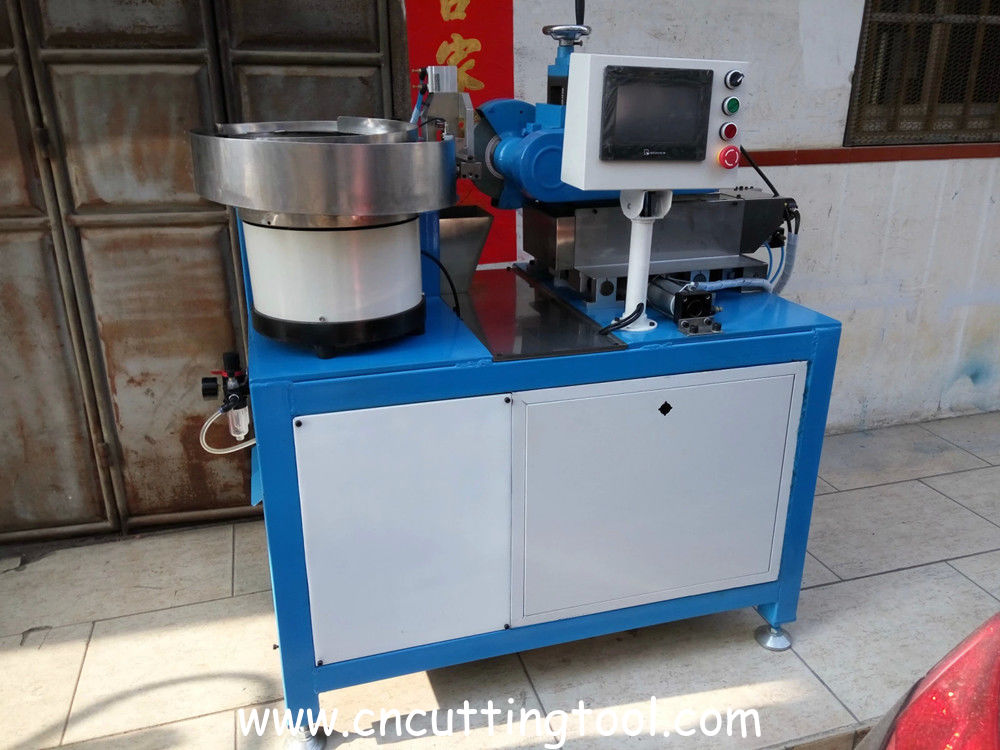

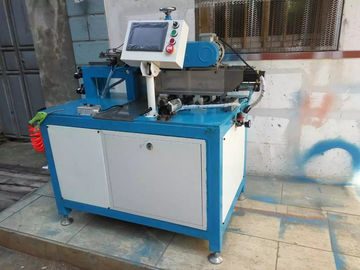

    Automatic radian grinder for diamand segments of stone cutting saw blade



    The equipment is new equipment of arc grinding for diamond segments, which is more convenient of diamond segment for high frequency welding after grinding, so that the diamond saw blade is more beautiful, better strength.



    Functions and Features:

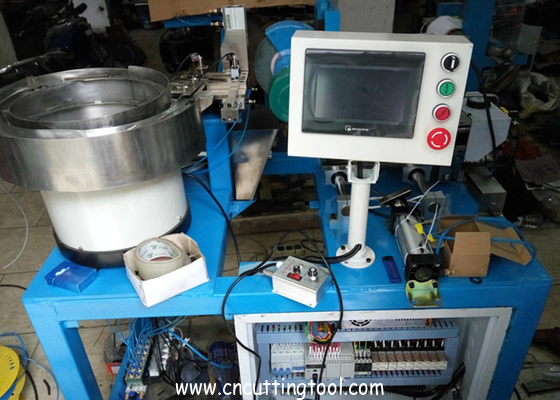

    1. This product of high precision is controlled by computer and operated with human-machine interface and the operation process is simple.

    2. It can be automatically covered if grinding wheel is abraded or grinding force is overload, in addition, its pressure is constant.

    3. It can transform constant grinding force control model, one model of its various choice models.

    4. Automatically install various grinding models, such as precision grinding (twice), high efficiency grinding (once).

    5. Automatically measure the grinding wheel diameter, orientate work origin.

    6. The mass of grinding wheel and bit tool can be adjusted from 0.5 to 10Kg

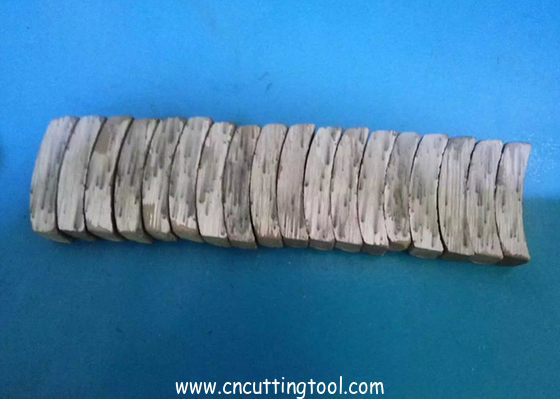

    7. It imitates arc for maximized overlap ratio between arc and blade.

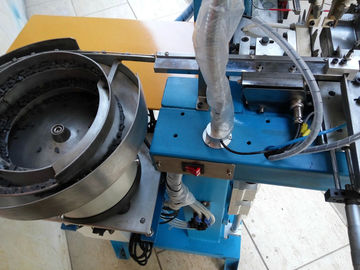

    8. Vibration plate automatically delivers diamond segments.



    Specification

    No Name Data Remark

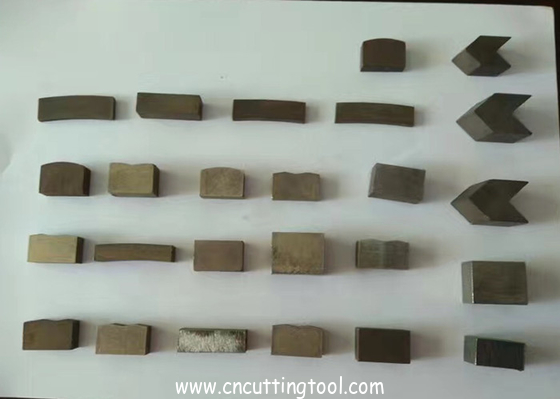

    1 Grinding material Diamond segments
    2 Air pressure 0.5-0.7Mpa
    3 Grinding speed 3-4pc/s
    4 Power 2.1Kw
    5 Weight 350kg



    Diamond saw blades are widely used in the processing of stone, glass, ceramics, crystals, gemstones, cast iron and other materials, as well as in the construction of houses, roads, bridges and other projects. At the same time, with the continuous update and maturity of the diamond saw blade production technology, the application field is still expanding.



    The diamond saw blade segments teeth sharpening and grinding machine is often used to grinding diamond saw blades with a diamond particle size ranging from 30/35 to 60/80. The harder the rock, the finer grain size should be selected. Because under the same pressure conditions, the finer and sharper the diamond is, it is conducive to cutting into hard rocks. Therefore, the requirements for large diamond saw blade segments grinding are getting higher and higher. The life of the diamond saw blade grinded by the diamond saw blade grinding machine can be greatly improved, reducing the wear of the blade.

    The diamond saw blade segments grinding machine adopts the traditional and stable cylindrical grinding structure, which has strong rigidity, high precision, convenient operation and stable effect.



    Technical parameter

    No Name Data Remark
    1 Saw blade diameter 400-1800mm
    2 Sharpening type Dry grinding
    3 Saw blade loading Manually
    4 Working efficiency 3-5 min/pc For dia 600mm
    5 Sharpening position Three sides of segment









    Automatic special radian grinding machine for diamand segments of diamond saw blade



    Voltage V 380
    Air pressure Mpa 0.5-0.7
    Grinding speed Pc/s 3-4
    Power Kw 2.1
    weight Kg 500
    Size Mm 1250x750x1260
