| Place of Origin: | China |
| Brand Name: | EFFEMAX |
| Certification: | NO |
| Model Number: | 1600mm*8.5mm |
| Minimum Order Quantity: | 2 pcs |
|---|---|
| Price: | 800-1000USD/pc |
| Packaging Details: | wooden case |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T |
| Supply Ability: | 50pcs/month |
| Cutting Material: | Aluminum Profile | Diameter: | 1600mm |
|---|---|---|---|
| Model: | TCT |

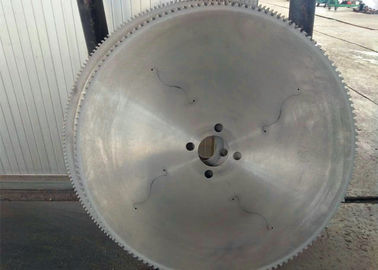

Aluminum cutting carbide-tipped circular saw blade (TCT) tungsten carbide circular saw
Description
Using condition: Tungsten carbide circular saw blade is suitable for use at room temperature, with a dedicated cutting saw supporting the use of a cutting saw blade.
Raw material: the TCT circular saw blade material is 8CrV, 75Cr1, 80CrV2 and other high-quality alloy tool steel through heat treatment, machining processes.
To achieve good mechanical properties, in saw blade outer diameter with brazing fine particles or ultrafine particles carbide segments, and then through the precision tooth VOLLMER grinding machine grinding out the required tooth profile.
Application
According to the different cutting parts, it is generally divided into tube cutting, tube row cutting, rail cutting, non-ferrous metal cutting, steel pipe CNC profiling sawing saw blade, ultra-thin fast cutting saw blade and so on.
Carbide-Tipped Circular Saw Blade (TCT) for Aluminum Sections
It is mainly used for scaling-off cutting the aluminum sections. It can be used with various kinds of extruding production lines whose capability are less than 12.5 thousand tons. The cutting diameter can reach φ700mm.
Parameter
| Diameter | Bore hole | Diameter of Pin Hole | PCD of Pin Holes | Thickness | Cutting width | Number of Teeth |
| φ350 | φ30 | φ12 | φ80 | 2.2 | 3.2 | 100,120 |
| φ500 | φ32 | φ12 | φ100 | 2.8 | 3.8 | 100,128 |
| φ610 | φ50 | φ15 | φ120 | 4.2 | 5.2 | 90,120 |
| φ800 | φ80 | φ15 | φ150 | 5.5 | 7.0 | 100,120 |
| φ1000 | φ100 | φ18 | φ200 | 6.5 | 8.0 | 120,160 |
| φ1250 | φ100 | φ22 | φ250 | 6.5 | 8.0 | 180,200 |
| φ1400 | φ100 | φ22 | φ250 | 7.0 | 8.5 | 200,220 |
| φ1560 | φ120 | φ25 | φ280 | 8.0 | 9.5 | 220,240 |
| φ1800 | φ150 | φ30 | φ300 | 8.5 | 10.0 | 230,250 |
