Dynamically balanced taper grounded hot circular saw blade for steel mill

Dynamically balanced taper grounded hot circular saw blade for steel mill

    • Dynamically balanced taper grounded hot circular saw blade for steel mill
    • Dynamically balanced taper grounded hot circular saw blade for steel mill
    • Dynamically balanced taper grounded hot circular saw blade for steel mill
    • Dynamically balanced taper grounded hot circular saw blade for steel mill
    • Dynamically balanced taper grounded hot circular saw blade for steel mill
    • Dynamically balanced taper grounded hot circular saw blade for steel mill
  • Dynamically balanced taper grounded hot circular saw blade for steel mill

    Product Details:

    Place of Origin: China
    Brand Name: EF
    Model Number: 1800mm

    Payment & Shipping Terms:

    Minimum Order Quantity: 5 nos
    Price: USD200-1000/pc

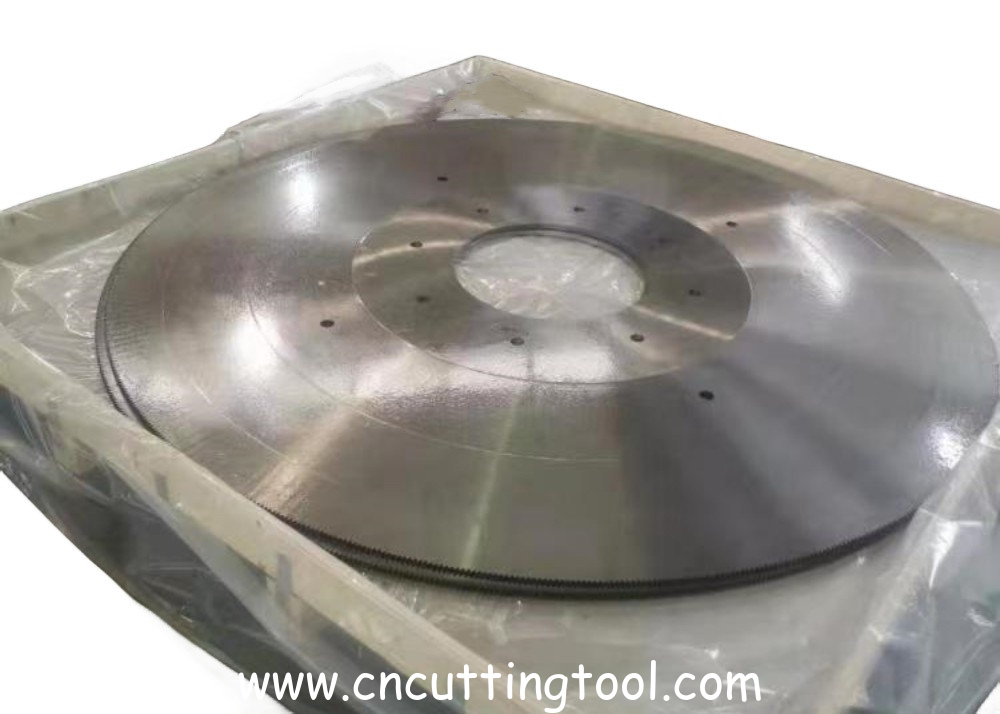

    Packaging Details: wooden pallet
    Delivery Time: 30-45 days
    Payment Terms: T/T
    Supply Ability: 200 nos/month
    Contact Now
    Detailed Product Description
    Material: 45Mn2V Diameter: 1000-2500mm
    Cutting Material: Steel Billet, Solid Bar, Angle Steel,h Beam,steel Channel Tooth Profile: Pendulum,slant,parrot
    Cutting Temperature: Above 750 Degree

    Dynamically balanced taper grounded hot circular saw blade for steel mill



    Introduction



    Hot cut circular saw blade

    Hot cut circular saw blade for the Steel Cutting Industry are used in stationary or flying cut off applications at mills with continuous casters, hot rolling mills for billets, rails, structural sections, and tube mills with temperatures of the product exceeding 750 degrees C / 1385 degrees F.

    Hot cut circular saw blades are available from 1200mm to 2500mm with the standard slaughter tooth or the V tooth without flat part as well as customized tooth profiles to suit the customers’ requirements. The hot saw cutting blade requires a copious flow of coolant under high pressure that is directed into the teeth to essentially clear the debris from the tooth gullets and keep it clean and cool with every saw revolution.



    Cutting application

    The blades are available in a wide selection of carbon steel grades, manganese steel grades and special alloy component steels depending on the applications.

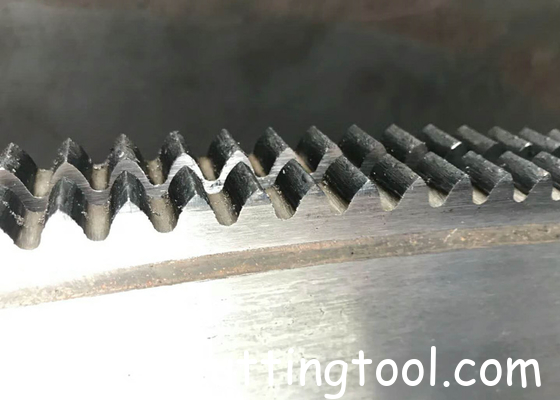

    Tooth profile

    Pendulum tooth

    Suited for hot and cold cutting of tubes, profiles, beams and solid materials



    Slant teeth

    Suited for hot and cold cutting of tubes, profiles, beams and solid materials

    Dynamically balanced taper grounded hot circular saw blade for steel mill



    Blade material

    45Mn2V, 50Mn2V, 46Mn7, 51Mn7



    Blade body profile

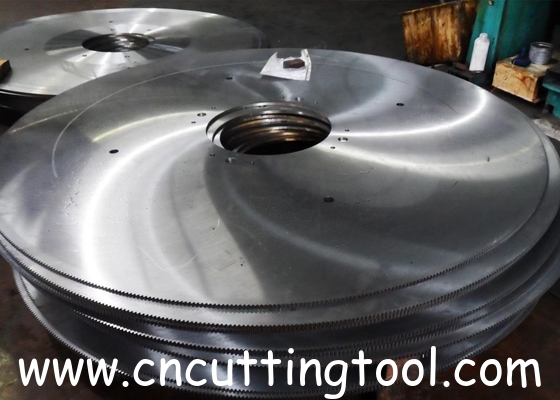

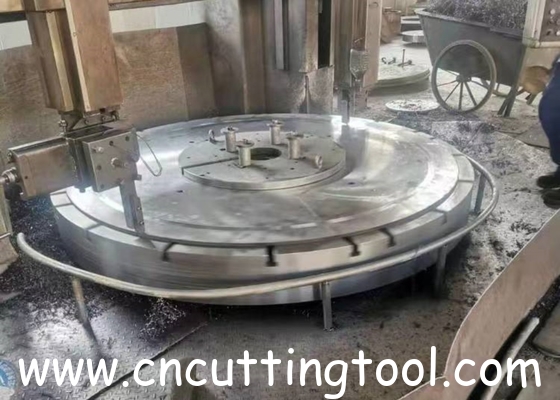

    Typically, the hot saw blade is surface ground flat with parallel sides or taper ground to a hub for additional side clearance in cutting large profiles. Straighten and tension the hot saw blades for each unique cutting application will also demonstrate the quality that is built into every new blade by providing the cutting performance that can be measured and effectively reduce the cost of operations.



    Tooth hardening

    Electrode hardening, flame hardening and high frequency hardening are available.



    Specification



    Diameter(mm) Center Hole(mm) Thickness(mm) No. of Teeth
    1200 100,160,300 6,7,8 220,276,400
    1300 340,360 6,9 216,340
    1500 180,300,360 7,8 220,248,276,318
    1600 300,480 7,8,9 248,276,318,410,440
    1650 400,500 9,10 350,410
    1700 320 9,10 588
    1800 400,550 9,10 297,370,600
    2000 500 10,12 275,380,660
    2100 500 13,14 400,600
    2200 400 14 384,380,580
    2500 500 15 400,580,660



    Quality control

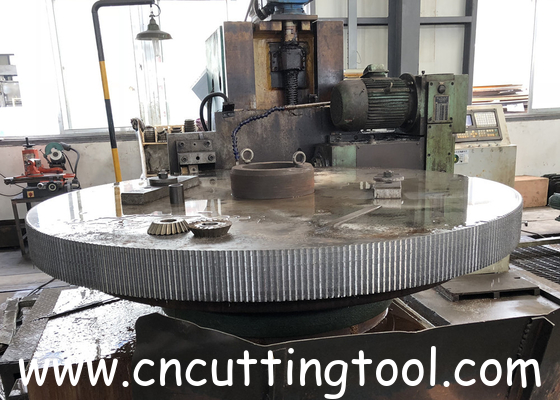

    During the production process, the saw blade will be subject to tolerance testing such as diameter and thickness, hardness testing, tension testing, and dynamic balance testing for large size saw blades. After a period of use, the saw blade needs to be grinded, and the tooth profile of the tooth part needs to be grinded and hardening. If the blade body is deformed, the flatness and dynamic balance of the blade body should also be done.



    Dynamically balanced taper grounded hot circular saw blade for steel mill
