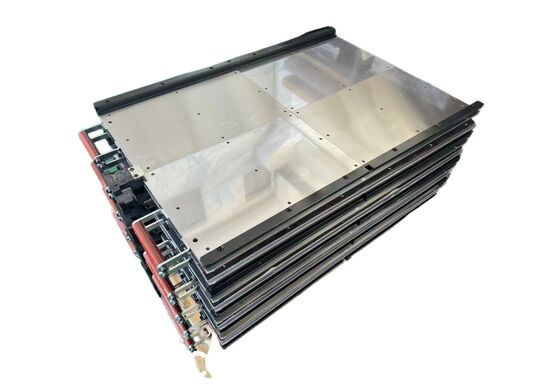

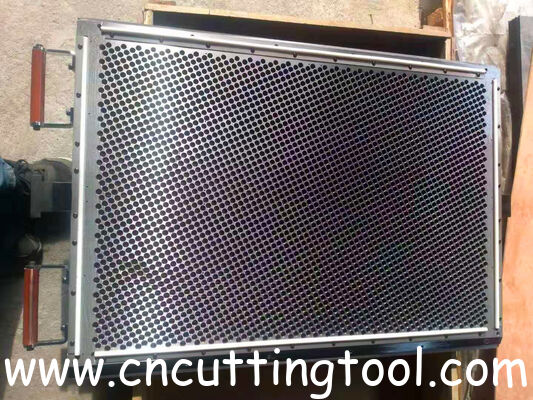

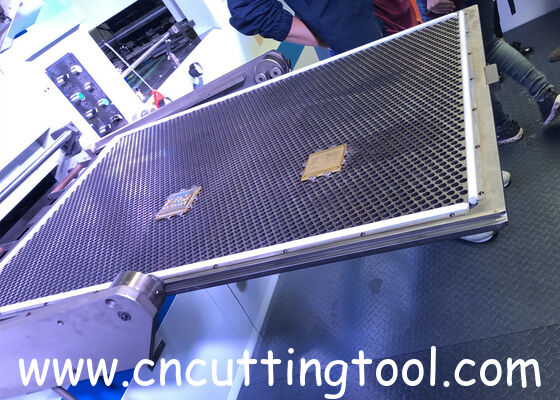

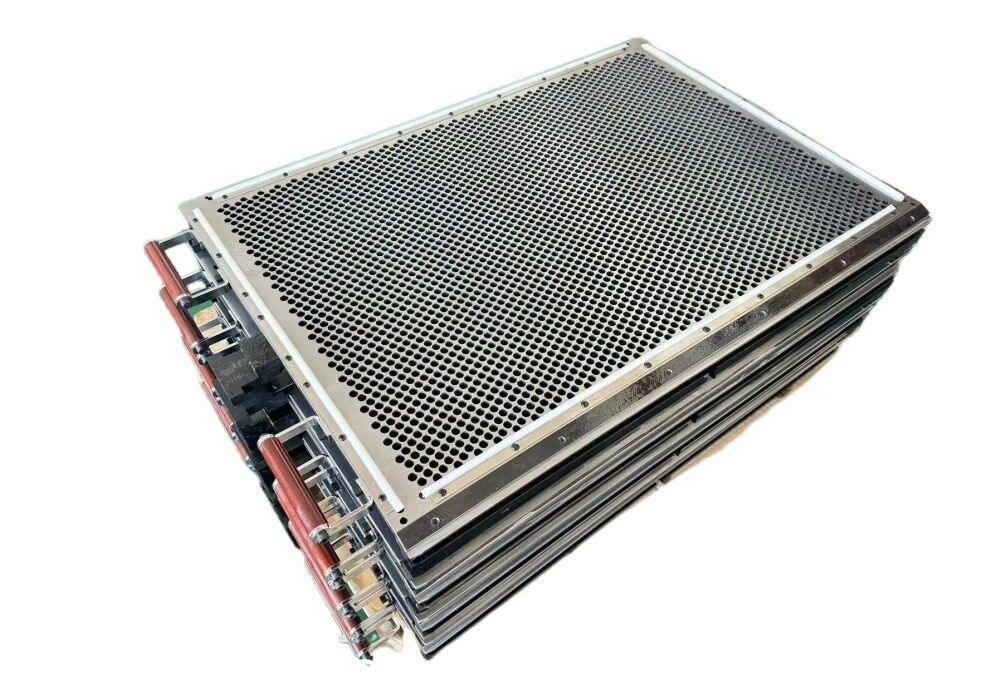

Die cutting machine quality die cut chase plate for packaging industry

Die cutting machine quality die cut chase plate for packaging industry

Die cutting machine, steel plate hot stamping machine, chase plate: The hot stamping machine can evenly distribute the pressure of the hot stamping machine to the entire surface during the hot stamping process, eliminate local pressure deviations, ensure clear and sharp edges of complex patterns, and avoid problems such as incomplete atomization of gold and silver foil hot stamping. The steel plate of the die-cutting machine is the key carrier of precision die-cutting technology, usually made of high hardness alloy steel, which is heat-treated to ensure that the cutting die does not deform during high-speed stamping. Its surface needs to be ground to mirror level flatness, and precise drilling of dual station positioning pin holes (one round and one diamond) and matrix screw locking holes is required to achieve millimeter level alignment between the tool mold and the equipment.

Chase plate material

The material requirements for automatic die cutting chase plates are high, as they have to withstand high temperature, high pressure, high speed, and high frequency impacts and friction, while also ensuring flatness and hardness.

The commonly used materials for die cutting steel chase plates include stainless steel, which is a corrosion-resistant alloy steel containing elements such as chromium and nickel. It has good heat resistance and wears resistance, but has low hardness and is suitable for flat or circular flat automatic die-cutting machines.

Manganese steel: It is a type of carbon structural steel with a high manganese content, which has high strength and toughness, can resist impact and fatigue damage, but is prone to rusting. It is suitable for automatic die-cutting machines for circular pressing.

Imported material: With ultra-high hardness and wear resistance, it can adapt to various types of automatic die-cutting machines.

The key mission of the die cutting steel plate remains unchanged: to transform the designer's drawings into physical entities that are not inferior to millimeters with certain rigidity and very flatness. It silently carries, but defines the upper limit of quality. On the contrary, the die cutting steel plate will determine the scrap rate of the product.

Precision laser cutting and strict heat treatment ensure the sharpness and toughness of the steel plate blade.

The service life of die cutting chase plate

According to the characteristics of the processed material: material hardness and wear resistance: cutting corrugated cardboard, cardboard, adhesive and other relatively soft materials, steel plate wear is slow. Cutting materials such as plastics, composite materials (especially those containing glass fiber, carbon fiber, metal foil, etc.), leather, rubber, and other materials with high hardness or strong wear resistance will significantly accelerate the wear of steel plates. The abrasive components in materials, such as sand particles and fillers in cardboard, and reinforcing fibers in composite materials, can accelerate the wear of the blade like sandpaper. Adhesive/Coating: Adhesives or coatings on certain materials may have some corrosiveness or increase friction, accelerating wear. When cutting ordinary paper/stickers, the lifespan of high-quality die cutting plates can reach millions of times.

Our company specializes in customizing die cutting plates, chase plate, plate frame, clear waste frame for various flatbed die-cutting machines and hot stamping machines, supporting customization according to equipment models and compatible with semi-automatic/fully automatic die-cutting machines.

Applicable fields: Packaging printing, hot stamping process equipment matching. Customers can determine the steel plate material to be used based on their desired steel plate material, as well as the size, thickness, and die-cutting material of the steel plate, resulting in different die-cutting pressures; After selecting the materials, customize the steel plate size according to the paper feeding size of the die-cutting machine. Chromium plating or treatment significantly improves the wear resistance and rust prevention ability of steel plates.

Die cutting plate material and application

Suitable for die cutting machine brand
