Carbide tipped saw blade 1500mm for cutting seamless steel pipe

Carbide tipped saw blade 1500mm for cutting seamless steel pipe

    • Carbide tipped saw blade 1500mm for cutting seamless steel pipe
    • Carbide tipped saw blade 1500mm for cutting seamless steel pipe
    • Carbide tipped saw blade 1500mm for cutting seamless steel pipe
    • Carbide tipped saw blade 1500mm for cutting seamless steel pipe
    • Carbide tipped saw blade 1500mm for cutting seamless steel pipe
    • Carbide tipped saw blade 1500mm for cutting seamless steel pipe
  • Carbide tipped saw blade 1500mm for cutting seamless steel pipe

    Product Details:

    Place of Origin: China
    Brand Name: EFFEMAX
    Certification: No
    Model Number: carbide tipped

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 pcs
    Price: 30-350USD
    Packaging Details: fumigation free wooden case
    Delivery Time: 30 days
    Payment Terms: T/T
    Supply Ability: 1000PCS/M
    Contact Now
    Detailed Product Description
    Material: 8CrV 80CrV2 75Cr1 Type: Carbide Tipped Saw Blade
    Diameter: 1500mm Application: Seamless Pipe API Standard
    Teeth Number: 140

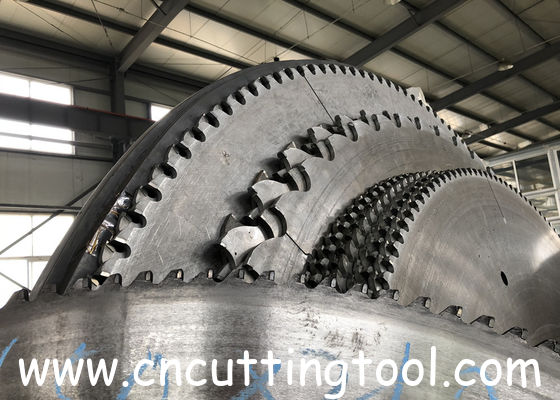

    Carbide tipped saw blade 1500mm for cutting seamless steel pipe

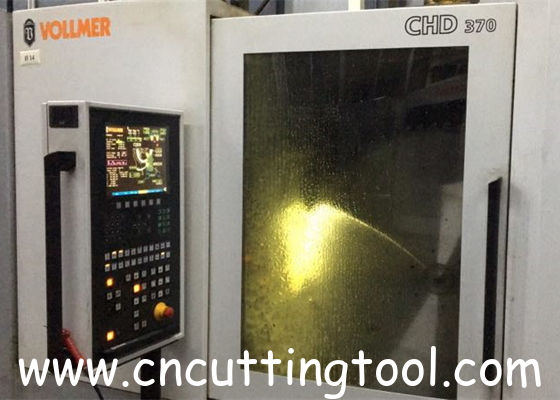

    Tungsten carbide circular saw blade is suitable for use at room temperature, with a dedicated cutting saw supporting the use of a cutting saw blade, the circular saw blade material is 8CrV, 75Cr1, 80CrV2 and other high-quality alloy tool steel through heat treatment, machining processes, To achieve good mechanical properties, in saw blade outer diameter with brazing fine particles or ultrafine particles carbide segments, and then through the precision tooth VOLLMER grinding machine grinding out the required tooth profile, According to the different cutting parts, it is generally divided into steel tube cutting, steel tube row cutting, rail cutting, aluminum round bar cutting, aluminum profile cutting, non-ferrous metal cutting, steel pipe CNC profiling sawing saw blade, ultra-thin fast cutting saw blade and so on.



    Tungsten Carbide-Tipped (TCT) cold saw blades are made with an alloy steel body and tungsten carbide inserts brazed to the tips of the teeth. These tips are ground on all surfaces to create tangential and radial clearance and provide the proper cutting and clearance angles on the teeth. The alloy body is generally made from a wear resistant material such as a chrome vanadium steel, heat treated to 38/42 HRc . The tungsten carbide tips are capable of operating at much higher temperatures than solid HSS cold saw blades, therefore, TCT cold saw blades are usually run at much higher surface speeds. This allows carbide-tipped blades to cut at faster rates and still maintain an acceptable chip load per tooth. The tungsten carbide inserts are extremely hard (98 HRc) and capable of very long wear life. However, they are less resistant to shock than solid HSS cold saw blades. Any vibration during the cutting process may severely damage the teeth.

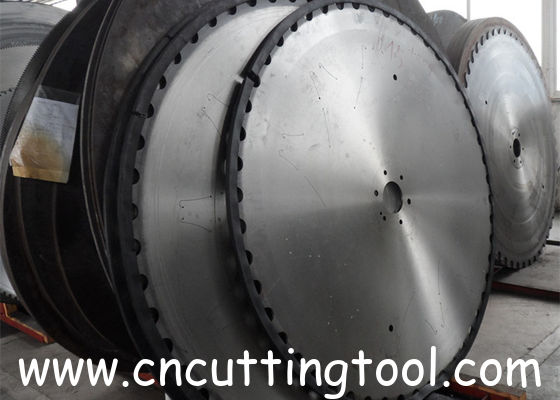

    Carbide tipped saw blade 1500mm for cutting seamless steel pipe







    Carbide Tipped circular Saw Blade (TCT) Used for Round Steel Bar

    It is mainly used for cutting round steel bar in the cold condition; the cutting diameter can reach 450mm. It also can be used for cutting the steel rails of normal temperature and used with various kinds of cutting machines in and abroad.

    Diameter Bore Hole Diameter of Pin Hole PCD of Pin Holes Tickness Cutting width Number of Teeth
    540 60 22 120 5.0 6.5 60,80
    830 100 25 200 5.5 7.0 70,100
    965 100 30 250 6.5 8.0 50,60
    1080 100 30 250 6.5 8.0 60,80
    1250 100 30 250 7.0 8.5 50,80
    1500 100 30 250 8.0 9.5 50,80

    Carbide Tipped Circular Saw Blade (TCT) Used for Seamless Steel Tube

    It is mainly used for scaling-off cutting various kinds of tubes in the cooled and straigtened condition after hot rolling by the seamless steel tube factory. The saw blade can cut several steel tubes on a row at a time. It can be used with various kinds of cutting machines in and abroad.

    Diameter Bore Hole Diameter of Pin Hole PCD of Pin Holes Thickness Cutting width Number of Teeth
    800 80 25 180 5.0 6.5 80,100
    1020 100 27 200 5.5 7.0 100,120
    1120 100 30 250 5.5 7.0 130,150
    1250 100 30 250 5.5 7.0 150,160
    1400 100 30 250 6.5 8.0 160,180
    1680 100 30 250 8.0 9.5 160,180



    Carbide-tipped Circular Saw Blade (TCT) for Steel Tube Profiling Cutting Machines

    The saw blade is made of special material and process, and it can be used for cutting large ERW straight welded tube and seamless steel tube. The cutting diameter can reach φ630mm, and the thickness of the tubes can reach 50mm. It has a lot of advantages, such as good cutting quality, energy-saving, safety, noise-reducing, etc. it is an advanced cutting tool which can be used with various kinds of steel tube profiling cutting machines in and abroad.



    Diameter Bore Hole Diameter of Pin Hole PCD of Pin Holes Thickness Cutting width Number of Teeth
    300 50 15 160 2.2 2.8 50,60
    355 80 18 160 2.5 3.3 64,72
    380 115 20 200 3.0 4.0 52,70
    400 115 20 200 3.3 4.3 52,80
    450 120 20 225 3.8 4.8 60,80
    500 120 20 250 4.0 5.0 60,80



    Carbide-Tipped circular Saw Blade (TCT) for the Bar Material

    It is mainly used for cutting aluminum bar materials with different sections for Aluminum processing factory. The cutting diameter can reach 700mm, and the thickness of the flat aluminum bar can reach 700mm.

    Diameter Bore hole Diameter of Pin Hole PCD of Pin Holes Thickness Cutting width Number of Teeth
    700 80 18 180 4.5 6.5 64,72
    810 80 20 200 5.0 7.0 60,72
    1000 100 20 220 5.5 7.5 72,80
    1200 100 22 250 6.5 8.5 80,100
    1600 200 25 300 8.5 10.5 72,80
    1800 240 30 350 10.5 14.5 60,72
    2000 240 30 350 11.0 15.0 70,100
    2200 240 30 350 11.5 15.5 90,120





    Carbide-Tipped Circular Saw Blade (TCT) for Aluminum Sections

    It is mainly used for scaling-off cutting the aluminum sections. It can be used with various kinds of extruding production lines whose capability are less than 12.5 thousand tons. The cutting diameter can reach 700mm.

    Diameter Bore hole Diameter of Pin Hole PCD of Pin Holes Thickness Cutting width Number of Teeth
    350 30 12 80 2.2 3.2 100,120
    500 32 12 100 2.8 3.8 100,128
    610 50 15 120 4.2 5.2 90,120
    800 80 15 150 5.5 7.0 100,120
    1000 100 18 200 6.5 8.0 120,160
    1250 100 22 250 6.5 8.0 180,200
    1400 100 22 250 7.0 8.5 200,220
    1560 120 25 280 8.0 9.5 220,240
    1800 150 30 300 8.5 10.0 230,250
