|Place of Origin:||China|
|Model Number:||hot saw|
|Minimum Order Quantity:||5pcs|
|Packaging Details:||seaworthy wooden case|
|Delivery Time:||35 work days|
|Finish Of Side Face:||Hollow Ground||Cutting Material:||Hot Rolled H Beam|

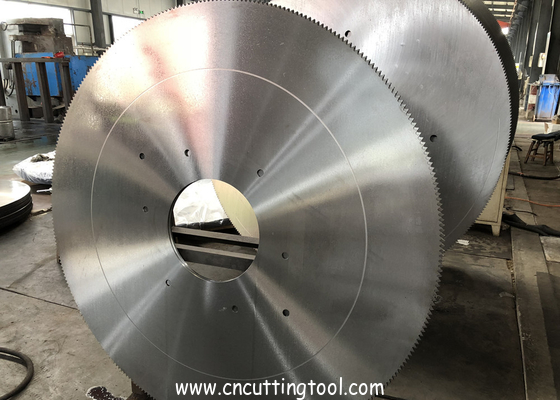

Hot cut taper hot saw blade for hot rolled steel sections cutting
Raw material with high quality tool steel, imported and local steel enterprise, 45Mn2V, 50Mn2V, 65Mn, 51Mn7, 46Mn as saw body material, It is characterized by good comprehensive mechanical property, high hardness and abrasive resistance at the tip of tooth. Tooth hardness 50-55HRC,
It is used for cutting hot rolled steel sections, H beam,steel pipe and tube, and steel bar (square, round and flat). The temperature for cutting should be over 750℃, and 800℃ for high alloy steel. It requests the sawing machine with collent water above 3Mpa.
Saw blade material: 65Mn,45Mn2V, 50Mn2V, 46Mn, 51Mn7
Tooth forms/tooth geometry:
30/30 degree pendulum tooth
Finish of side face:
Flat ground finish,parallel ground

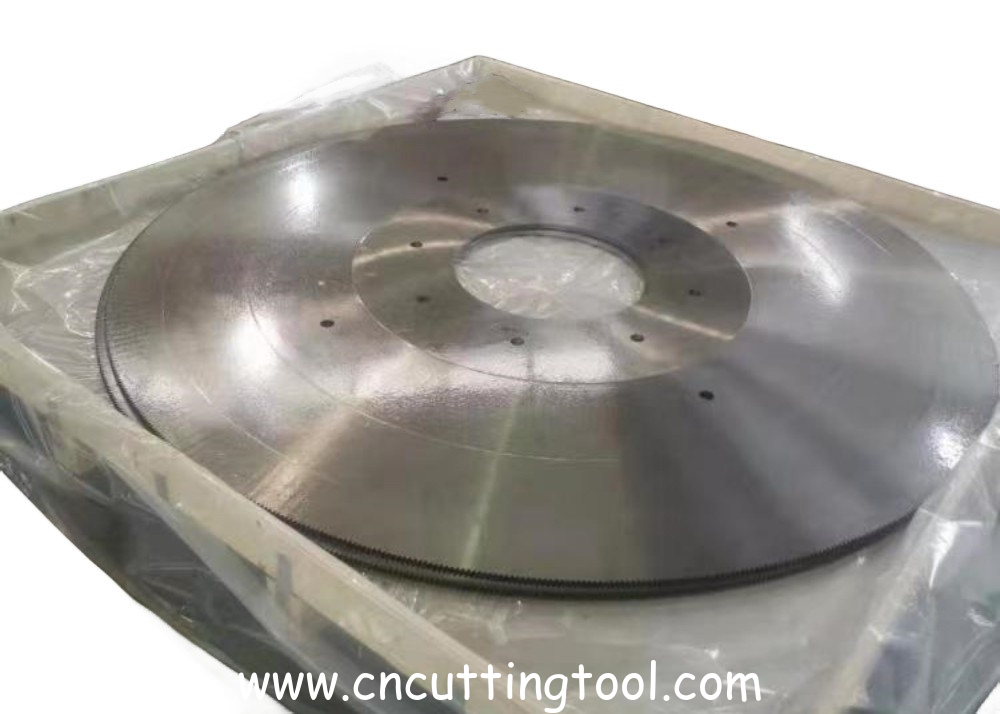

Hollow ground: side face are hollow ground, for maximum cutting clearance, reduce burr forming and high cut quality.
less cracking due to good ductility material
visible better cut quality
longer service life
Laser cutting for volume production and improving saw blade quality, compare with shear and punching method which is easily lead to micro cracks, laser cutting machine minumizes this occurrence.
Continuous quench system to increase hardness to request standard
Milling teeth with consistent precision, optimized to virtually no cracking
Tension testing/rolling/straightening machine
Each piece of steel core and saw blade being testing/rolling and straightening before delivery by our homemade high precision testing/rolling and straightening machine which arrurate to 0.01mm, proprietary rolling and straightening process results in highest precision and smallest side run-out.
What are the factors affecting the service life of the saw blade?
The service life of the saw blade is not only related to the material and tooth profile of the saw blade itself, but also to the set circumferential linear speed, feed speed, cooling water and other process parameters of the saw machine as well as the stability of the saw machine.
What is the minimum order quantity of the saw blade?
It is recommended that at least 5 test pieces for each specification be used. It can also be adjusted according to the production situation
What is difference between friction circular saw blade and hot cut circular saw blade?
The operate temperature is different. The operating temperature of the hot cut circular saw blade is higher than 750 ° C, and the friction circular saw blade is generally used at 200-300° C.
Hot cutting saw blade spcification
|Diameter(mm)||Bore Hole(mm)||Thickness(mm)||No. of Teeth|
