Max 2300mm diameter circular saw blade tension and rolling machine

Max 2300mm diameter circular saw blade tension and rolling machine

    • Max 2300mm diameter circular saw blade tension and rolling machine
    • Max 2300mm diameter circular saw blade tension and rolling machine
    • Max 2300mm diameter circular saw blade tension and rolling machine
    • Max 2300mm diameter circular saw blade tension and rolling machine
  • Max 2300mm diameter circular saw blade tension and rolling machine

    Product Details:

    Place of Origin: China
    Brand Name: EFFEMAX
    Certification: CE
    Model Number: E3000

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: 50000-60000USD/SET
    Packaging Details: fumigation free wooden case
    Delivery Time: 35 days
    Payment Terms: T/T
    Supply Ability: 10 set/m
    Contact Now
    Detailed Product Description
    Max Diameter: 3000mm Usage: Rolling And Tension For Steel Disc
    Application: Diamond Saw Blade Manufacture

    Max 2300mm diameter circular saw blade tension and rolling machine

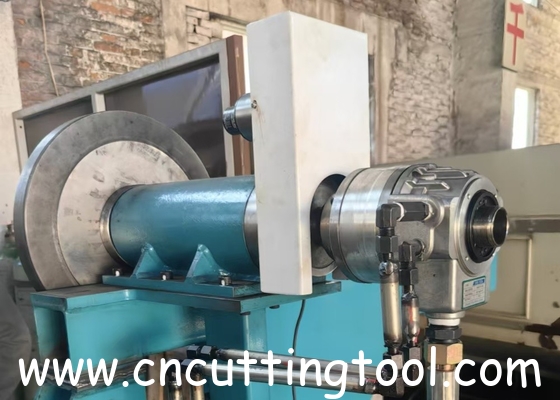

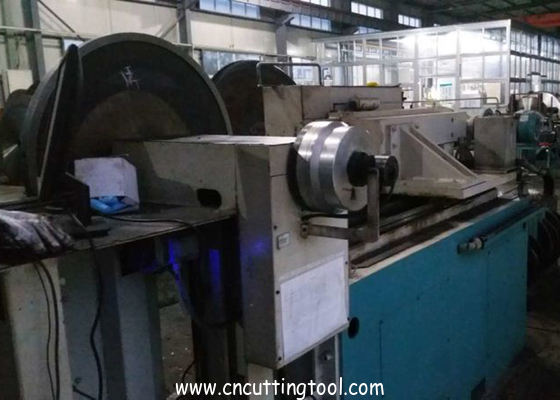

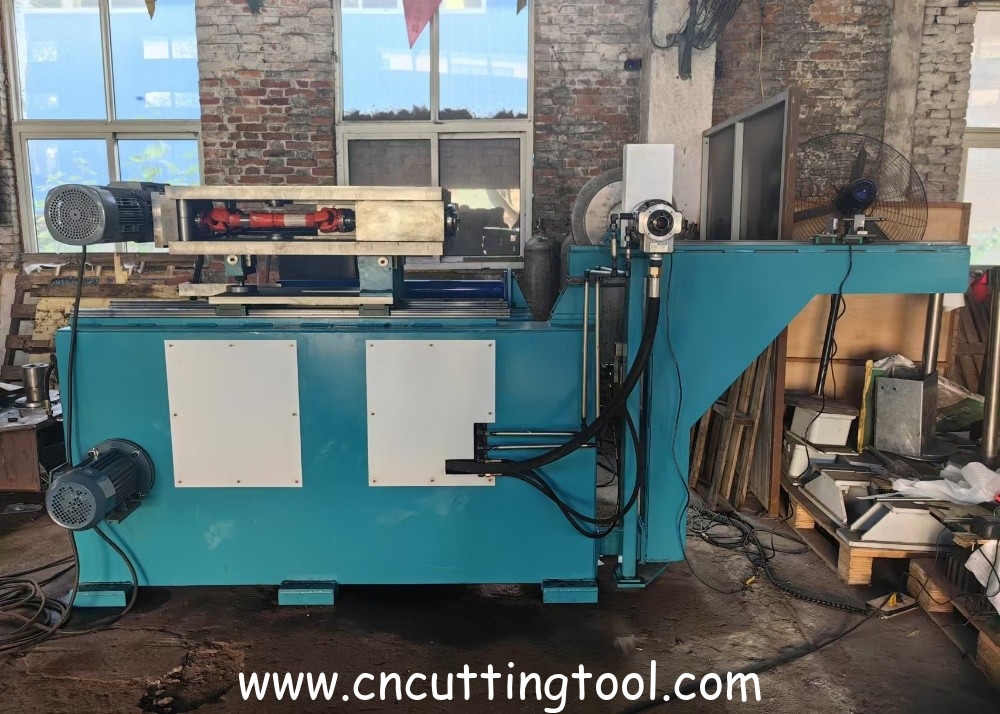

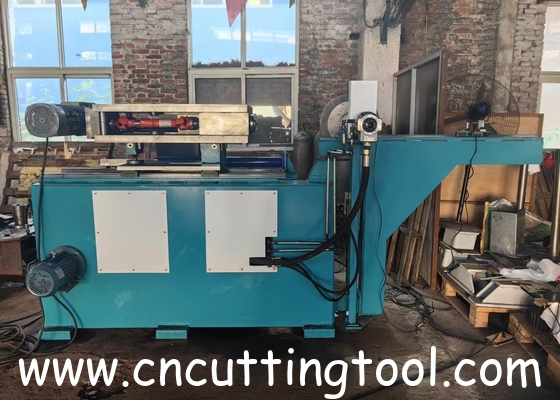

    The tension testing, rolling and straight machine is necessary equipment in circular saw blade manufacturing process. This machine is consist of two parts, rolling and testing, it is a special equipment which integrated with technology of computer, laser measuring, positioning, hydraulic and pneumatic etc, and featured with simple appearance and easy operation.

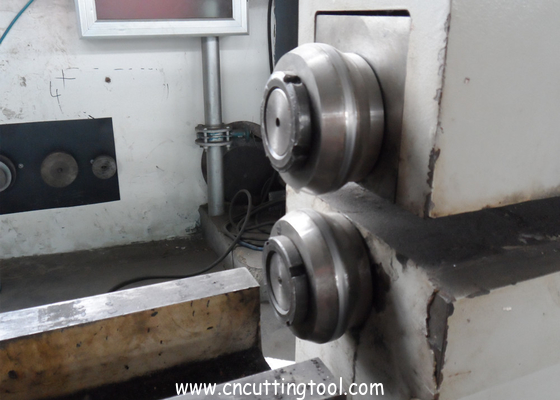

    This machine is mainly apply to circular saw blank run out testing, tension testing and straightening, and the basic structure include ten parts, machine base, tension apply mechanism, rolling part, circular saw blade rolling support, measuring device, additional device,run out testing system, hydraulic system, pneumatic system, electric system.



    Function: Run out testing for saw blades and steel cores Tension testing for saw blades and steel cores Straightening for saw blades and steel cores and gang saw Max testing thickness: 15mm Testing range: 150mm-3000mm Voltage:380/400V Frequency:50/60Hz



    Main function



    1. Run out testing for saw blades and steel cores
    2. Tension test for saw blades and steel cores
    3. Straightening for saw blades and steel cores and gang saw

    Max 2300mm diameter circular saw blade tension and rolling machine

    Max 2300mm diameter circular saw blade tension and rolling machine

    Technical Data Type: 2300
    Max testing thickness (mm) 15
    Max testing diameter (mm) 2300
    Mini testing diameter (mm) 600
    Dimensions (LxWxH) (mm) 3450x1500x1500
    Weight (kg) 3100
    Max Rolling Force (KN) 100
    Voltage Rating (V) 380/400
    Frequency (Hz) 50/60
    Power (KW) 6
    Pneumatic connection bar 6
