Hot cutting circular saw disc for processing of beams, billets and steel bars

Hot cutting circular saw disc for processing of beams, billets and steel bars

    • Hot cutting circular saw disc for processing of beams, billets and steel bars
    • Hot cutting circular saw disc for processing of beams, billets and steel bars
    • Hot cutting circular saw disc for processing of beams, billets and steel bars
  • Hot cutting circular saw disc for processing of beams, billets and steel bars

    Product Details:

    Place of Origin: China
    Brand Name: EFFEMAX
    Certification: NO
    Model Number: 1800mm

    Payment & Shipping Terms:

    Minimum Order Quantity: 5 pcs
    Price: USD300-800/PC

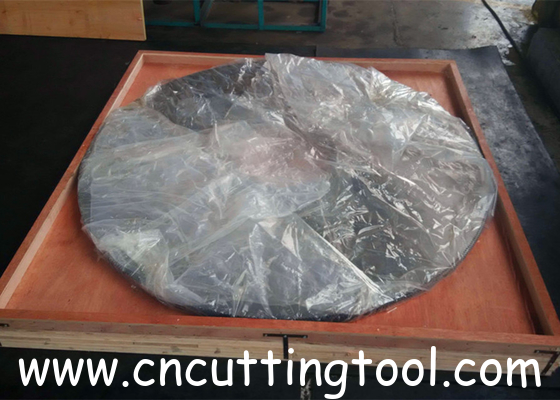

    Packaging Details: wooden case
    Delivery Time: 35 work days
    Payment Terms: T/T
    Supply Ability: 500PCS/Month
    Contact Now
    Detailed Product Description
    Material: 45Mn2V Diameter: 1800mm
    Cutting Material: Hot Rolled Steel

    Hot cutting saw blade quality circular saw disc for hot cut of beams, bars and billets



    Hot Saw cutting blades for the Steel Cutting Industry are used in stationary or flying cut off applications at mills with continuous casters, hot rolling mills for billets, rails, structural sections, and tube mills with temperatures of the product exceeding 750 degrees C / 1385 degrees F.



    Hot Saws are available from 530mm to 2500mm with the standard slaughter tooth or the V tooth with out flat part as well as customized tooth profiles to suit the customers’ requirements. The hot saw cutting blade requires a copious flow of coolant under high pressure that is directed into the teeth to essentially clear the debris from the tooth gullets and keep it clean and cool with every saw revolution.



    The blades are available in a wide selection of carbon steel grades, manganese steel grades and special alloy component steels depending on the applications.



    Typically, the hot saw blade is surface ground flat with parallel sides or taper ground to a hub for additional side clearance in cutting large profiles. Straighten and tension the hot saw blades for each unique cutting application will also demonstrate the quality that is built into every new blade by providing the cutting performance that can be measured and effectively reduce the cost of operations.



    The hot saw is provided with a normalized or tempered body but often can be supplemented with electrode hardened tooth. The teeth are electrode hardened by contacting the edge through a red hot graphite electode at a controlled speed and quenched to achieve a harden cutting edge which gives considerable increased blade life between re sharpening.



    Blade material: used quality tool steel, 45Mn2V, 50Mn2V 65Mn, 51Mn7, 46Mn as saw body material.



    It is characterized by good comprehensive mechanical property, high hardness and abrasive resistance at the tip of tooth.



    Tooth hardness 50-55HRC.



    Tooth forms/tooth geometry:

    30/30 degree pendulum tooth

    Slaughter tooth

    Hot cutting circular saw disc for processing of beams, billets and steel bars

    Hot cutting circular saw disc for processing of beams, billets and steel bars

    Diameter(mm) Bore Hole(mm) Thickness(mm) No. of Teeth
    800 70/110 5/6/8 180/280/360/220
    820 110 4,5 228,315
    900 110,300 5,6 180,220
    960 110 6,7 150,208
    1000 160,270,300 5,6,7 180,240,320
    1030 300 6 238
    1100 300 6 198,340
    1200 160,300,350 6,7,8 200,220,276,328
    1300 340,360 6,9 216,340
    1500 300,360 7,8 220,248,276,318
    1600 300,480 7.5,8,9 288,440
    1650 400,500 9,10 350,410
    1700 320 9,10 588
    1800 400,550 9,10,11,12 259,297,370,450,600
    1880 240 10,11 250,300
    2000 450 10,12 300,520,660
    2200 400 14 384,380,580
    2500 500 15 400,580,660
