Automatic diamond stone cutting dia 3000mm saw blade segments welding machine

Automatic diamond stone cutting dia 3000mm saw blade segments welding machine

    • Automatic diamond  stone cutting dia 3000mm saw blade segments welding machine
    • Automatic diamond  stone cutting dia 3000mm saw blade segments welding machine
    • Automatic diamond  stone cutting dia 3000mm saw blade segments welding machine
    • Automatic diamond  stone cutting dia 3000mm saw blade segments welding machine
    • Automatic diamond  stone cutting dia 3000mm saw blade segments welding machine
  • Automatic diamond  stone cutting dia 3000mm saw blade segments welding machine

    Product Details:

    Place of Origin: China
    Brand Name: EFFEMAX
    Certification: No
    Model Number: automatic

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: 10000-30000USD/SET
    Packaging Details: fumigation free wooden case
    Delivery Time: 25 days
    Payment Terms: T/T
    Supply Ability: 50 set/m
    Contact Now
    Detailed Product Description
    Diameter: 600-2200mm Application: Brazing Diamond Segment
    Type: Automatic

    Automatic diamond stone cutting dia 3000mm saw blade segments welding machine

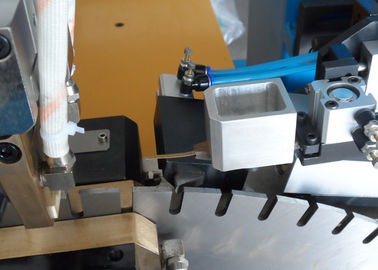

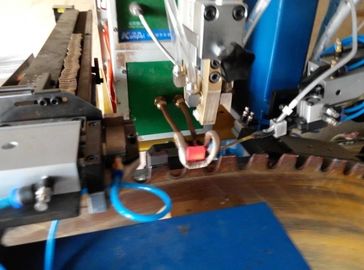

    This machine uses touch screen control and HMI operation, automatically control of welding time, equipped with tank photoelectric detection system, positioning and rotating saw blade body and feed segment and wire automatically, high accuracy positioning, feed wire second time for last tooth to ensure the welding strength. Bilateral independent fans to improve cooling speed, automatic alarm display for easy troubleshooting. It can complete welding process automatically and easy to operate.



    Features:



    Segment and saw disc automatic centering



    Configure water tank photoelectric system, automatic positioning saw blade and automatic alarm for fault running



    Adjustable for R/F segments, L/T segments, brazing time, cooling time, brazing tooth number, skip brazing according to actual demand.



    Automatic feeding solder, brushing flux, automatic centering,at the last segment, it will feed solder two times to ensure the end teeth brazing strength



    With touch screen control and HMI operation



    Easy to operate and maintaince



    Applicate for brazing segments for stone cutting saw blade



    Automatic diamond  stone cutting dia 3000mm saw blade segments welding machine



    Automatic diamond  stone cutting dia 3000mm saw blade segments welding machine



    Automatic Welding Lifting Rack for Diamond Saw Blades

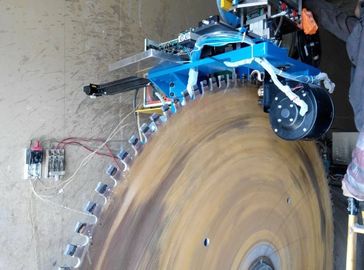

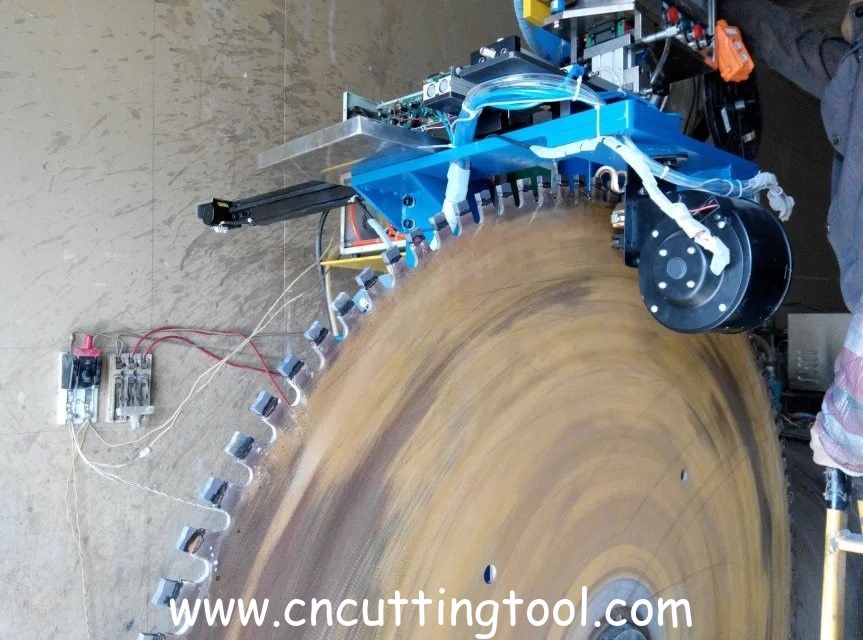

    This equipment is a kind of automatic large welding rack, who welded together with diamond segments and saw blades’ body by high frequency welding. The device is mainly suitable for welding diamond saw blades of 800-3200mm.

    Functions and Features:

    1. Pneumatic push tooth, automatic alarm display for running the fault.

    2. The parameters of related R/F-segment, L/T-segment and saw, welding time, welding gear, cooling time, skip welding, can be adjusted according to actual needs.

    3. High degree of automation, high positioning accuracy, automatically sending segment, automatically feeding solder wire, automatic brushing flux.



    Specification

    Name Unit Data
    Welding Diameter mm Φ800-3200
    Welding Verticality Tolerance mm ±0.03
    Welding Capacity pc/h 180-460
    Air Pressure mpa 0.6
    Hydraulic Pressure mpa 0.2
    Power w 1400
    Water consumption m³/h 1.5
    Voltage V 220V/50Hz
    Weight kg 320
    Size mm 1100×1050×2500





    Automatic Welding Lifting Rack for Diamond Saw Blades



    This automatic welding machine is mainly used for welding segments on tooth of diamond steel core with diameter from 800-2200mm.



    Features

    Push tooth by pneumatic cylinder, automatic alarm for fault running

    Adjustable for R/F segments, L/T segments, welding time, cooling time, welding tooth number, skip welding according to actual demand.

    Automatic feeding solder, feeding segments, brushing flux, positioning with high accuracy

    With touch screen control and HMI operation

    Easy to operate and maintaince

    Applicate for welding segments for stone cutting saw blade



    Specification

    Name Unit Data
    Welding Diameter mm 800-2200
    Verticality mm ±0.03
    Welding capacity Pc/h 180-460
    Air pressure Mpa 0.6
    Water pressure Mpa 0.2
    Power W 1200
    Water consumption m3/h 1.5
    Size mm 1000x950x2445
    Voltage V 220
    Weight kg 270





    Automatic Welding Lifting Rack for Diamond Saw Blades

    This machine uses touch screen control and HMI operation, automatically control of welding time, equipped with tank photoelectric detection system, positioning and rotating saw blade body and feed segment and solder automatically, high accuracy positioning, feed solder second time for last tooth to ensure the welding strength. Bilateral independent fans to improve cooling speed, automatic alarm display for easy troubleshooting.

    Features

    Segment and saw disc automatic centering

    Configure water tank photoelectric system, automatic positioning saw blade and automatic alarm for fault running

    Adjustable for R/F segments, L/T segments, welding time, cooling time, welding tooth number, skip welding according to actual demand.

    Automatic feeding solder, brushing flux, automatic centering, at the last segment, it will feed solder two times to ensure the end teeth welding strength

    With touch screen control and HMI operation

    Easy to operate and maintaince

    Applicate for welding segments for stone cutting saw blade



    Specification

    Name Unit Data
    Welding Diameter mm 280-1100
    Verticality mm ±0.03
    Welding capacity Pc/h 250-700
    Air pressure Mpa 0.6
    Water pressure Mpa 0.2
    Power W 1200
    Water consumption m3/h 1.5
    Size mm 1000x810x1550
    Voltage V 220
    Weight kg 230
