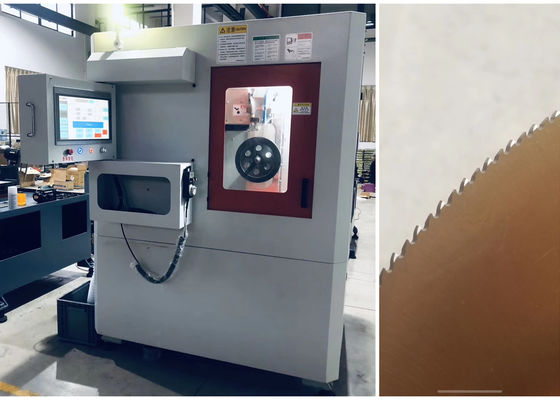

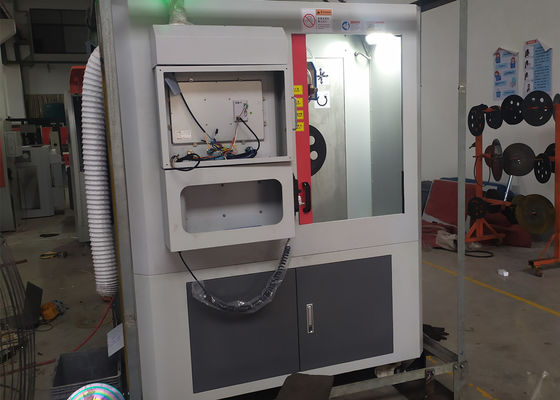

CNC control 4 axes HSS saw blade automatic sharpening and grinding machine

CNC control 4 axes HSS saw blade automatic sharpening and grinding machine

    • CNC control 4 axes HSS saw blade automatic sharpening and grinding machine
    • CNC control 4 axes HSS saw blade automatic sharpening and grinding machine
    • CNC control 4 axes HSS saw blade automatic sharpening and grinding machine
    • CNC control 4 axes HSS saw blade automatic sharpening and grinding machine
    • CNC control 4 axes HSS saw blade automatic sharpening and grinding machine
    • CNC control 4 axes HSS saw blade automatic sharpening and grinding machine
  • CNC control 4 axes HSS saw blade automatic sharpening and grinding machine

    Product Details:

    Place of Origin: China
    Brand Name: EF
    Certification: No
    Model Number: CNC

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: USD35000/set
    Packaging Details: wooden case
    Delivery Time: 35 days
    Payment Terms: T/T
    Supply Ability: 20 sets per month
    Contact Now
    Detailed Product Description
    Saw Blade: HSS Tooth: As Per Request
    Control: CNC Control Axes: 4 Axes

    CNC control 4 axes HSS saw blade automatic sharpening and grinding machine



    Condition of use



    Environment temperature: 0 - 45℃, the machine is stable, precise and reliable.



    Relative humidity: Less than or equal to 90%, the machine operates stably, accurately and reliably.



    Power supply: 380VAC (+ / - 10%), 50Hz.



    Features



    1. CNC control grinding wheel feeding, one circle grinding forming, optional chamfering, reduce non productive time, achieve high quality grinding effect;



    2. When grinding a new piece of the same specification, you only need to input the number of teeth to start with one key;



    3. Double waterproof system to better protect equipment and hardware facilities and prolong service life.



    4. No dust, low noise, high efficiency, easy to operate, which solves the problems of traditional manual gear grinding machine, such as more dust, high noise, slow gear grinding, etc.



    5. This machine adopts super large screen intelligent CNC touch operating system, which is stable and durable, easy to operate and easy to use.



    6. It is suitable for grinding and repairing common tooth shapes such as arc tooth(BW), triangle tooth(AW), high and low tooth(HZ).



    7. The angle and depth of the tooth shape can be adjusted arbitrarily, the tooth surface is smooth without redness or annealing, and the sawing is sharper.



    8. The chamfering angle can be adjusted arbitrarily, which can meet the different needs of different users and basically solve the sawing problem



    Usage



    CNC high speed steel grinding machine is widely used in the manufacture and grinding of high speed steel saw blade.



    Chamfering function



    Chamfering requires that the surface of the saw blade is clean and free of debris, and that the saw blade is flat and has a small swing.

    The first chamfered surface of the saw blade is defined as the A surface, and the second chamfered surface is defined as the B surface.

    If the left-right deviation is relatively large during the chamfering process, fine-tune the origin of the A axis.



    Parameters



    Saw blade Diameter 250-600mm

    Saw blade Thickness



    1-4mm
    Teeth number range 50-400T
    Feed speed 1-160mm/s

    Grinding wheel diameter



    200-250mm
    Total power about 6 kW
    Wheel type CBN
    Total Weight 1300kg
    Processing tooth profile AW, BW,HZ



    Wearing parts





    No Name
    1 Saw blade holder
    2 Saw blade lock nut
    3 LED lights
    4 Slide screw
    5 Slide rail guide
    6 Safety door roller bearing
    7 Slide screw bearing
    8 Saw blade locking splint
    9 Saw blade inner hole ferrule
    10 Saw blade rotating shaft skeleton sealing ring
    11 Electric spindle bearing



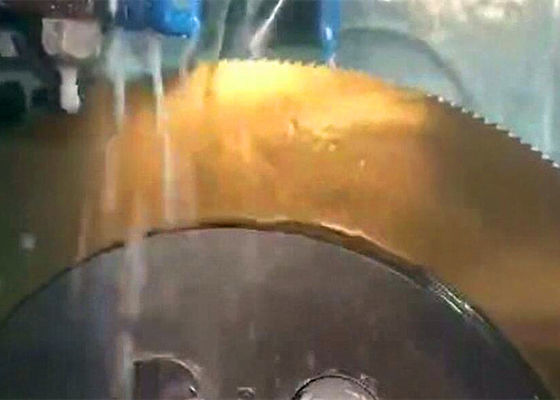

    CNC control 4 axes HSS saw blade automatic sharpening and grinding machine

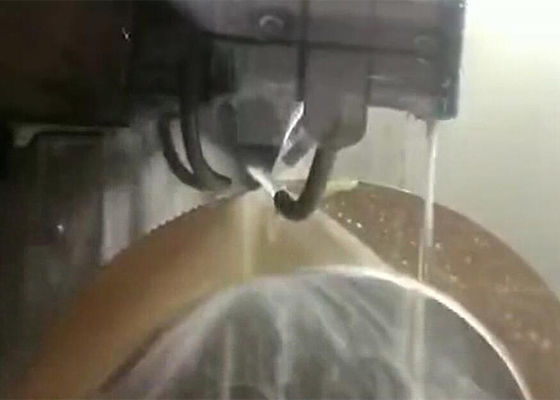

    CNC control 4 axes HSS saw blade automatic sharpening and grinding machine

    CNC control 4 axes HSS saw blade automatic sharpening and grinding machine
