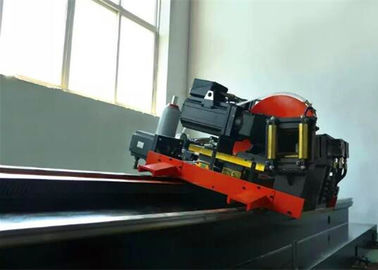

Tube mill square and round tube cut high speed flying cold saw

Tube mill square and round tube cut high speed flying cold saw

    • Tube mill square and round tube cut high speed flying cold saw
    • Tube mill square and round tube cut high speed flying cold saw
    • Tube mill square and round tube cut high speed flying cold saw
    • Tube mill square and round tube cut high speed flying cold saw
    • Tube mill square and round tube cut high speed flying cold saw
    • Tube mill square and round tube cut high speed flying cold saw
  • Tube mill square and round tube cut high speed flying cold saw

    Product Details:

    Place of Origin: China
    Brand Name: EF
    Model Number: 76

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: USD40000-55000
    Packaging Details: wooden case
    Delivery Time: 35-45 working days
    Payment Terms: T/T
    Supply Ability: 10sets/month
    Contact Now
    Detailed Product Description

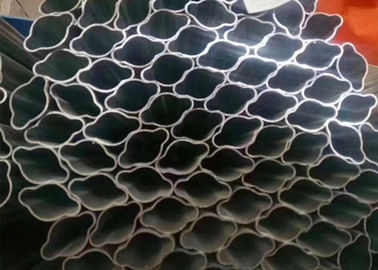

    Cutting Material: Mild Steel Steel Pipe: Round,square And Rectangular
    Control: Servo Motor Cut Way: Cold Cut
    Saw Blade: HSS/TCT

    Tube mill square and round tube cut high speed flying cold saw



    Performance of Cold Cutting Saw Machine



    In the process of metal sawing, the heat generated by the saw blade when sawing the work piece is transferred to the sawdust through the saw teeth, the saw blade and the work piece are kept cool. Cold cutting saw machine is different from traditional friction saw machine. The friction between work piece and friction saw blade results in high temperature of friction saw and work piece. Cold cutting saw machine has high section accuracy, no burrs inside and outside, smooth cutting surface, no need for follow-up treatment such as flat-headed chamfering, reduce the processing intensity of the next process, save time and raw materials, work piece will not change performance because of high temperature caused by friction, improve cutting efficiency, no spark, no noise, environmental protection and energy saving.



    Features

    Operational

    Following the traditional combination of internal and external operations, the operation interface is simple and clear, and after simple training, the on-site staff can operate the system.

    Large amount of data storage and long time

    All commissioning parameters can be saved in recipes and can be saved in multiple groups. Effectively prevent field workers from inadvertently modifying parameters or erroneously deleting parameters, resulting in loss of parameters.

    Debug screen upgrade

    The newly added debugging screen not only facilitates the debugging of the commissioning personnel, but also facilitates the parameter setting and debugging of the field staff when replacing or maintaining the equipment.

    Tube selection screen

    With intelligent calculation, only the on-site staff needs to select the type of pipe to be produced according to the actual situation, which greatly saves on-site management time.

    System trend graph is more realistic

    The communication rate is improved, and the trend graph of the system is more realistic, delicate, and truly reflects the operation of the system, providing a powerful basis for the efficient operation of the system.

    Three modes are available

    When booting into manual mode and entering simulation or automatic mode, if the conditions are not met, an error message will pop up to facilitate the on-site staff to quickly discharge the fault and save debugging time.

    Area alarm

    It can calculate the cutting ability of a single saw blade. When the area alarm setting value is exceeded, it will flash, prompting the user to replace the saw blade to ensure the uniformity and consistency of the work piece to be cut.



    Advantage

    Safety

    Low noise, good production environment, low spindle rotation and high safety factor

    Excellent performance and high production efficiency

    The cutting has good flatness, no burr, no need for flat head or CNC cutting, high cutting efficiency and low loss.

    Intelligent operation

    Friendly operate interface, clearer and simpler control, richer information, and simple settings for excellent cutting results.

    Low maintenance costs

    Flat cut, no burr, no secondary processing, stable equipment performance, optimized operating curve to ensure minimum mechanical wear, reduce downtime, and lower average cost.



    Ordinary hot cut flying saw

    The noise is high, the production environment is bad, the spindle speed is high, the safety factor is low, and safety accidents are easy to occur.

    The cutting burr is large, requires flat head, pneumatic or hydraulic drive cutting, low cutting efficiency and large loss.

    There is less information on the operation interface, it is difficult to judge the state of the device, and the cutting effect cannot be changed.

    The cut burr is large, secondary processing is necessary., the mechanical equipment has large impact, easy to form wear, increase downtime, and the subsequent average cost is high.

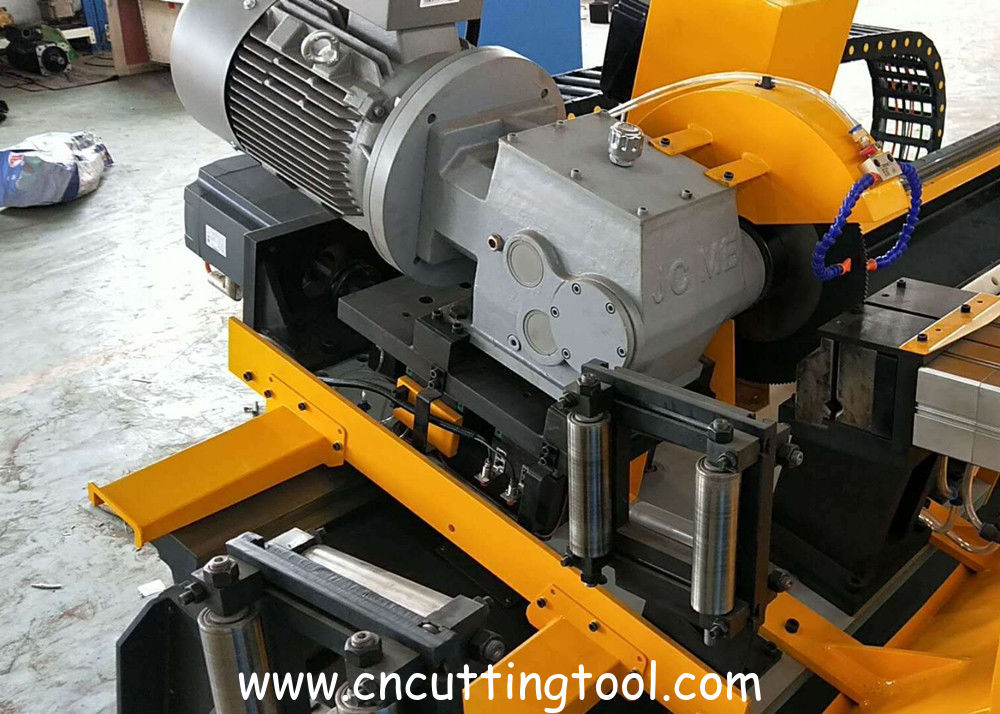

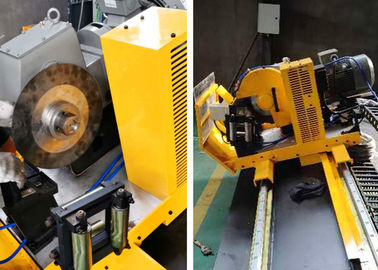

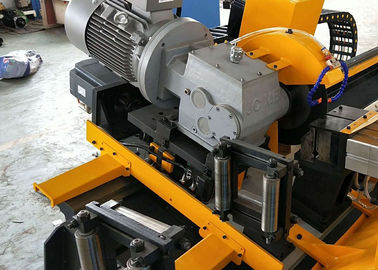

    Model 76 cold cut flying sawing machine
    Cutting material Q195,Q235
    Tensile strength Less than 400N/mm2

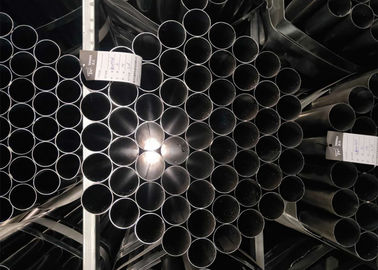

    Steel pipe size Round pipe Dia 32-89mm

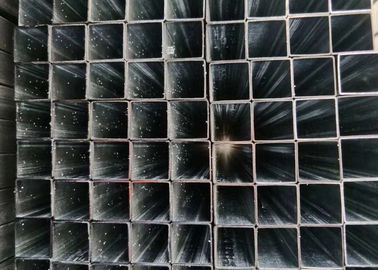

    Square pipe 25-70mm
    Rectangular pipe Max 45x90mm
    Pipe thickness 1.0-4.0mm
    Cut to length 1500-99000mm
    Production speed Max 100m/min
    Motor configuration Drive Italy PHASE
    Cutting Siemens AC motor/servo
    Feeding Siemens
    Saw blade type HSS/TCT



    Tube mill square and round tube cut high speed flying cold sawTube mill square and round tube cut high speed flying cold saw
