Hollow ground hot rolled steel profile hot cut circular saw blade

Hollow ground hot rolled steel profile hot cut circular saw blade

    • Hollow ground hot rolled steel profile hot cut circular saw blade
    • Hollow ground hot rolled steel profile hot cut circular saw blade
    • Hollow ground hot rolled steel profile hot cut circular saw blade
    • Hollow ground hot rolled steel profile hot cut circular saw blade
    • Hollow ground hot rolled steel profile hot cut circular saw blade
  • Hollow ground hot rolled steel profile hot cut circular saw blade

    Product Details:

    Place of Origin: China
    Brand Name: EFFEMAX
    Certification: No
    Model Number: hot saw

    Payment & Shipping Terms:

    Minimum Order Quantity: 5pcs
    Price: 750-800USD/PC
    Packaging Details: seaworthy wooden case
    Delivery Time: 35 work days
    Payment Terms: T/T
    Supply Ability: 500pcs/month
    Contact Now
    Detailed Product Description
    Material: 45Mn2V Tooth Hardness: 45-56HRC
    Finish Of Side Face: Hollow Ground Cutting Material: Hot Rolled H Beam
    Diameter: 1800mm*14mm

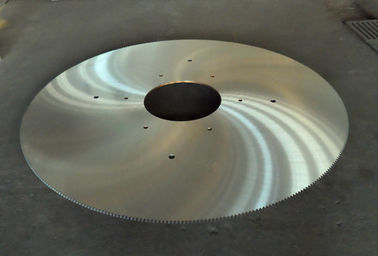

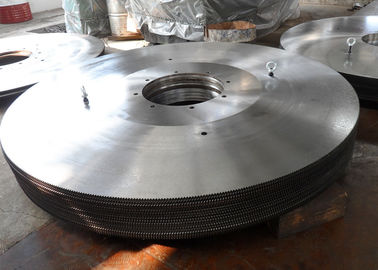

    Hollow ground hot rolled steel profile hot cut circular saw blade



    Description:



    Raw material with high quality tool steel, imported and local steel enterprise, 45Mn2V, 50Mn2V, 65Mn, 51Mn7, 46Mn as saw body material, It is characterized by good comprehensive mechanical property, high hardness and abrasive resistance at the tip of tooth. Tooth hardness 50-55HRC,



    It is used for cutting hot rolled steel sections, H beam,steel pipe and tube, and steel bar (square, round and flat). The temperature for cutting should be over 750℃, and 800℃ for high alloy steel. It requests the sawing machine with collent water above 3Mpa.



    Saw blade material: 65Mn,45Mn2V, 50Mn2V, 46Mn, 51Mn7

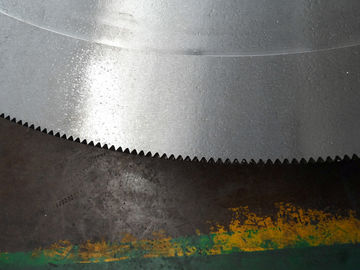

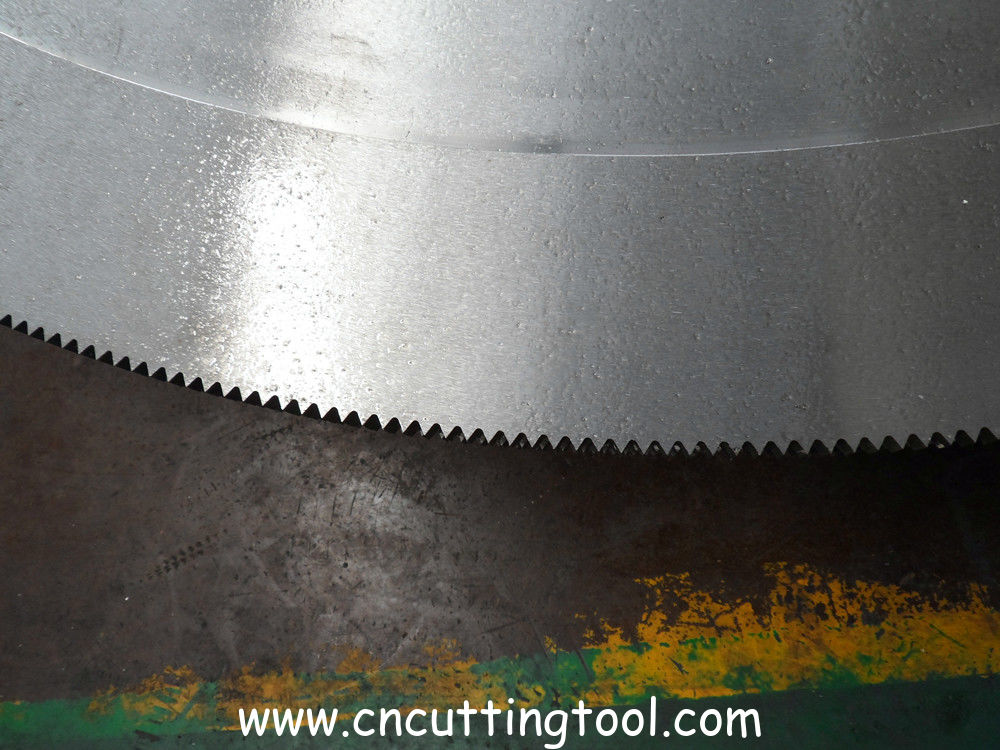

    Tooth forms/tooth geometry:



    30/30 degree pendulum tooth



    slaughter tooth





    Finish of side face:



    Flat ground finish,parallel ground

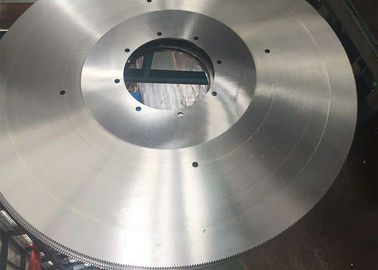

    Hollow ground: side face are hollow ground, for maximum cutting clearance, reduce burr forming and high cut quality.



    Cutting performance:



    less cracking due to good ductility material



    visible better cut quality



    longer service life



    Processing operation:



    Laser cutting for volume production and improving saw blade quality, compare with shear and punching method which is easily lead to micro cracks, laser cutting machine minumizes this occurrence.



    Heat treatment



    Continuous quench system to increase hardness to request standard





    Milling teeth with consistent precision, optimized to virtually no cracking



    Tension testing/rolling/straightening machine



    Each piece of steel core and saw blade being testing/rolling and straightening before delivery by our homemade high precision testing/rolling and straightening machine which arrurate to 0.01mm, proprietary rolling and straightening process results in highest precision and smallest side run-out.















    Hot cutting saw blade spcification



    Diameter(mm) Bore Hole(mm) Thickness(mm) No. of Teeth
    800 70/110 5/6/8 180/280/360/220
    820 110 4,5 228,315
    900 110,300 5,6 180,220
    960 110 6,7 150,208
    1000 160,270,300 5,6,7 180,240,320
    1030 300 6 238
    1100 300 6 198,340
    1200 160,300,350 6,7,8 200,220,276,328
    1300 340,360 6,9 216,340
    1500 300,360 7,8 220,248,276,318
    1600 300,480 7.5,8,9 288,440
    1650 400,500 9,10 350,410
    1700 320 9,10 588
    1800 400,550 9,10,11,12 259,297,370,450,600
    1880 240 10,11 250,300
    2000 450 10,12 300,520,660
    2200 400 14 384,380,580
    2500 500 15 400,580,660
