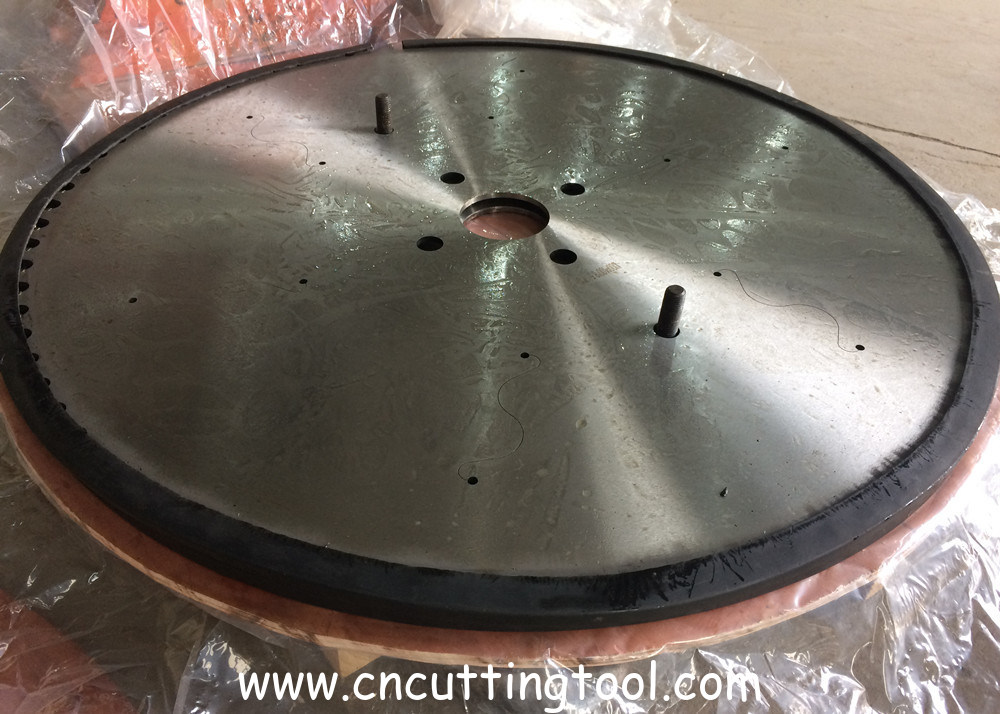

Carbon steel solid bar cold cutting tungsten carbide tipped saw blade

Carbon steel solid bar cold cutting tungsten carbide tipped saw blade

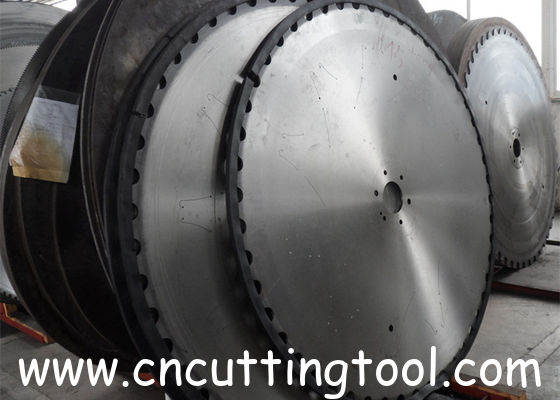

    • Carbon steel solid bar cold cutting tungsten carbide tipped saw blade
    • Carbon steel solid bar cold cutting tungsten carbide tipped saw blade
    • Carbon steel solid bar cold cutting tungsten carbide tipped saw blade
    • Carbon steel solid bar cold cutting tungsten carbide tipped saw blade
  • Carbon steel solid bar cold cutting tungsten carbide tipped saw blade

    Product Details:

    Place of Origin: China
    Brand Name: EFFEMAX
    Certification: No
    Model Number: TCT

    Payment & Shipping Terms:

    Minimum Order Quantity: 5pcs
    Price: 300-500 USD/PC

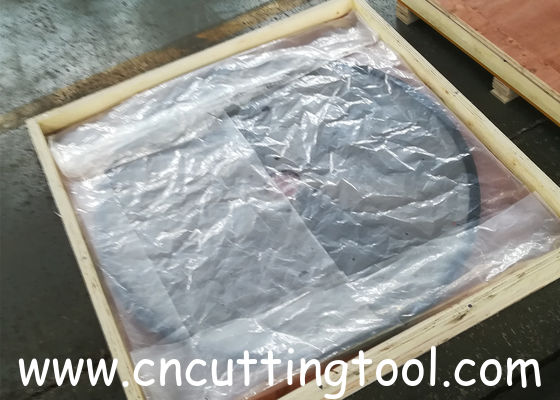

    Packaging Details: fumigation free wooden case
    Delivery Time: 30 days
    Payment Terms: T/T
    Supply Ability: 500pcs/m
    Contact Now
    Detailed Product Description
    Material: 8CrV Tips: Carbide
    Teeth Number: 140z Cutting Material: Metal
    Dia: 700mm

    Carbon steel solid bar cold cutting tungsten carbide tipped saw blade



    Tungsten Carbide-Tipped (TCT) cold saw blades are made with an alloy steel body and tungsten carbide inserts brazed to the tips of the teeth. These tips are ground on all surfaces to create tangential and radial clearance and provide the proper cutting and clearance angles on the teeth. The alloy body is generally made from a wear resistant material such as a chrome vanadium steel, heat treated to 38/42 HRc . The tungsten carbide tips are capable of operating at much higher temperatures than solid HSS cold saw blades, therefore, TCT cold saw blades are usually run at much higher surface speeds. This allows carbide-tipped blades to cut at faster rates and still maintain an acceptable chip load per tooth. The tungsten carbide inserts are extremely hard (98 HRc) and capable of very long wear life. However, they are less resistant to shock than solid HSS cold saw blades. Any vibration during the cutting process may severely damage the teeth.



    Carbide Tipped

    Tubes and solids

    Stainless steel, alloy steel and special purpose steel

    Carbon content greater than .45%



    Coated Carbide Tipped

    Tubes and solids

    High carbon steel alloys

    Reduces heat-wear and distortion



    Advantages:

    Lower cost per cut

    Wide variety of tooth counts to accommodate your part

    Stiff and extremely flat plates ensure distortion-free accurate cuts

    Increased productivity (less downtime)

    Excellent cut quality



    Cutting materials suggested:

    Mild low carbon steel

    Stainless steel

    High carbon steel

    Solids and pipe



    Carbon steel solid bar cold cutting tungsten carbide tipped saw blade



    Carbon steel solid bar cold cutting tungsten carbide tipped saw blade



    Carbide-Tipped Circular Saw Blade (TCT) for section steel



    It is mainly used for cutting H beam, Channel, Angle, square hollow. It also can be used for cutting the steel rails of normal temperature and used with various kinds of cutting machines in and abroad.

    Diameter Bore Hole Diameter of Pin Hole PCD of Pin Holes Tickness Cutting width Number of Teeth
    540 60 22 120 5.0 6.5 60,80
    830 100 25 200 5.5 7.0 70,100
    965 100 30 250 6.5 8.0 50,60
    1080 100 30 250 6.5 8.0 60,80
    1250 100 30 250 7.0 8.5 50,80
    1500 100 30 250 8.0 9.5 50,80



    Cutting materia size

    H beam Channel Angle
    100x100x6/8 75x40 50x50x6
    150x150x7/10 100x50 75x75x6
    175x175x5.5/8 125x65x6/8 90x90x10
    200x200x8/12 150x75x6.5/10 130x130x12
    250x125x6/9 200x90 150x150x15
    300x150x6.5/9 300x90x9/13 175x175x15
    400x200x8/13 380x100x13/20 200x200x20
