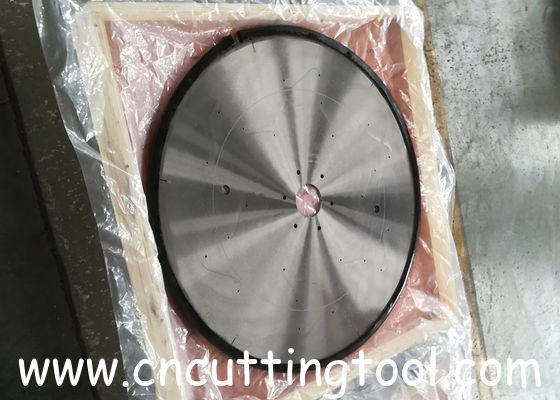

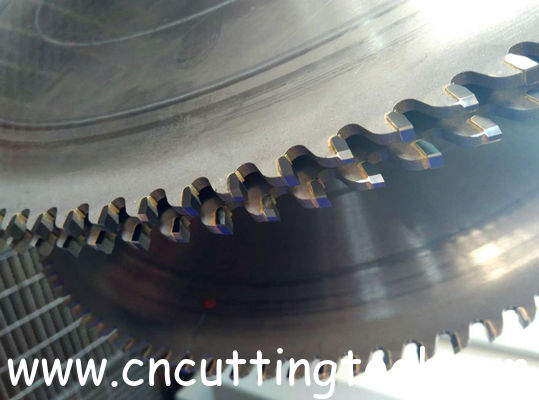

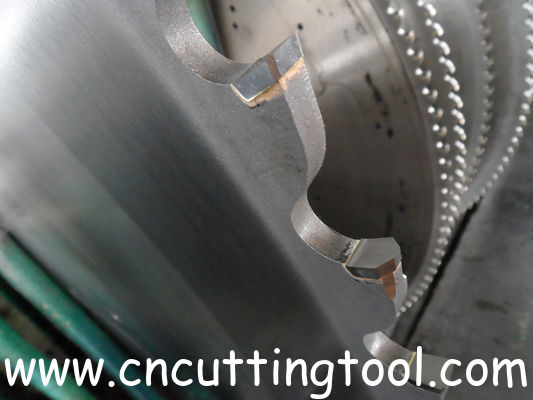

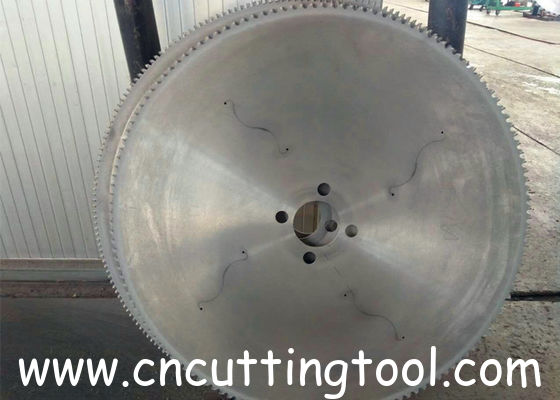

Aluminum solid round bar cutting 43"x110x7.0x90z tungsten carbide tipped saw blade

Aluminum solid round bar cutting 43"x110x7.0x90z tungsten carbide tipped saw blade

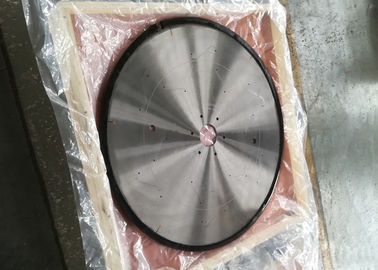

    • Aluminum solid round bar cutting 43"x110x7.0x90z  tungsten carbide tipped saw blade

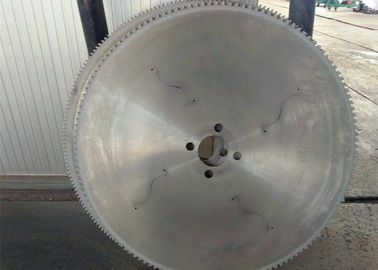

    • Aluminum solid round bar cutting 43"x110x7.0x90z  tungsten carbide tipped saw blade
    • Aluminum solid round bar cutting 43"x110x7.0x90z  tungsten carbide tipped saw blade
    • Aluminum solid round bar cutting 43"x110x7.0x90z  tungsten carbide tipped saw blade
    • Aluminum solid round bar cutting 43"x110x7.0x90z  tungsten carbide tipped saw blade
  • Aluminum solid round bar cutting 43"x110x7.0x90z  tungsten carbide tipped saw blade

    Product Details:

    Place of Origin: China
    Brand Name: EFFEMAX
    Certification: NO
    Model Number: 710mm

    Payment & Shipping Terms:

    Minimum Order Quantity: 5 pcs
    Price: 500-700USD/PC

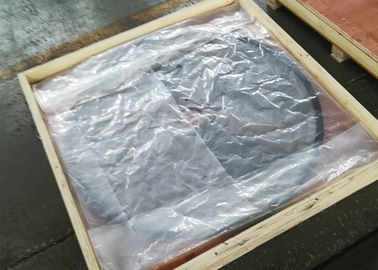

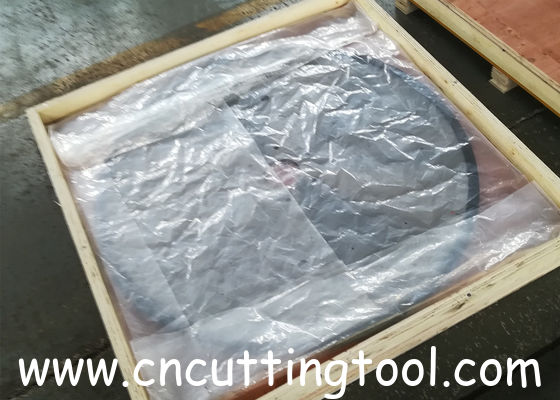

    Packaging Details: wooden case
    Delivery Time: 30 work days
    Payment Terms: T/T
    Supply Ability: 100PCS per month
    Contact Now
    Detailed Product Description
    Body Material: 8 CrV Cutting Material: Aluminum
    Teeth Number: 90z Diameter: 43"

    Aluminum solid round bar cutting 43"x110x7.0x90z tungsten carbide tipped saw blade



    Using condition: Tungsten carbide circular saw blade is suitable for use at room temperature, with a dedicated cutting saw supporting the use of a cutting saw blade.



    Raw material: the TCT circular saw blade material is 8CrV, 75Cr1, 80CrV2 and other high-quality alloy tool steel through heat treatment, machining processes.

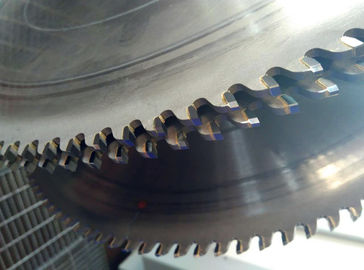

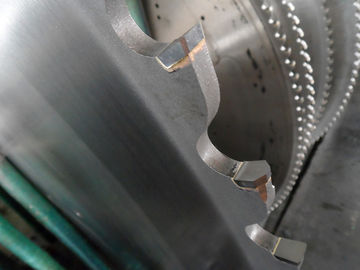

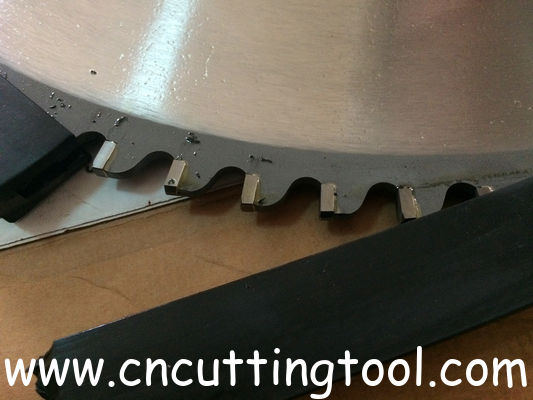

    To achieve good mechanical properties, in saw blade outer diameter with brazing fine particles or ultrafine particles carbide segments, and then through the precision tooth VOLLMER grinding machine grinding out the required tooth profile.



    Application: According to the different cutting parts, it is generally divided into tube cutting, tube row cutting, rail cutting, non-ferrous metal cutting, steel pipe CNC profiling sawing saw blade, ultra-thin fast cutting saw blade and so on.



    Carbide Tipped

    Tubes and solids

    Stainless steel, alloy steel and special purpose steel

    Carbon content greater than .45%



    Coated Carbide Tipped

    Tubes and solids

    High carbon steel alloys

    Reduces heat-wear and distortion

    Advantages:

    Lower cost per cut

    Wide variety of tooth counts to accommodate your part

    Stiff and extremely flat plates ensure distortion-free accurate cuts

    Increased productivity (less downtime)

    Excellent cut quality

    Cutting materials suggested:

    Mild low carbon steel

    Stainless steel

    High carbon steel

    Solids and pipe

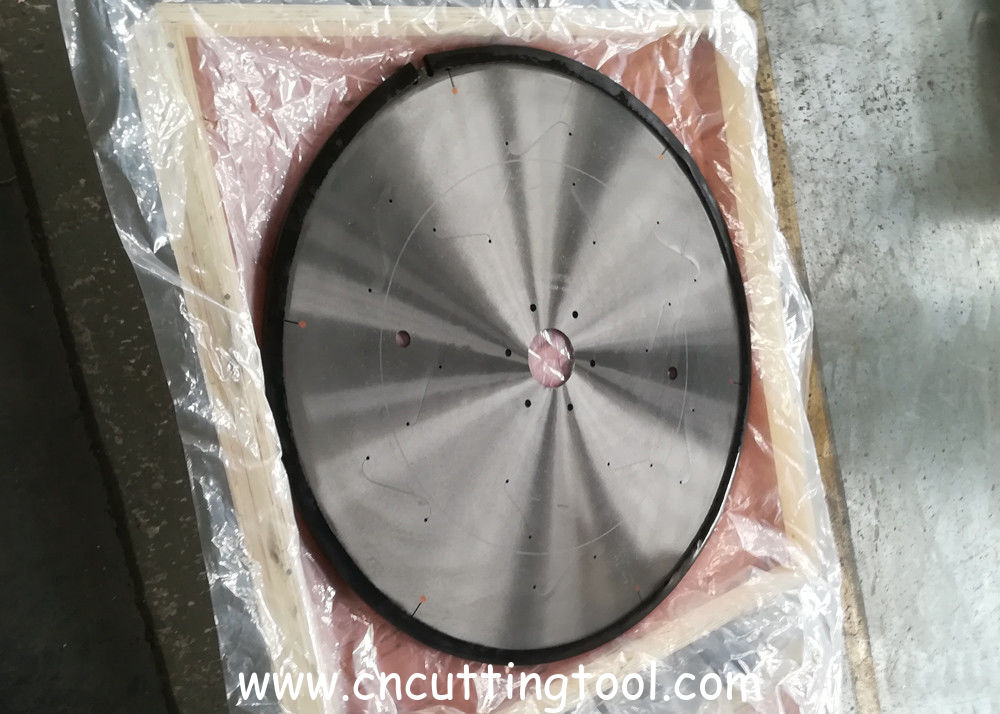

    Aluminum solid round bar cutting 43"x110x7.0x90z  tungsten carbide tipped saw blade







    Diameter Bore hole Diameter of Pin Hole PCD of Pin Holes Thickness Cutting width Number of Teeth
    700 80 18 180 4.5 6.5 64,72
    810 80 20 200 5.0 7.0 60,72
    1000 100 20 220 5.5 7.5 72,80
    1200 100 22 250 6.5 8.5 80,100
    1600 200 25 300 8.5 10.5 72,80
    1800 240 30 350 10.5 14.5 60,72
    2000 240 30 350 11.0 15.0 70,100
    2200 240 30 350 11.5 15.5 90,120
