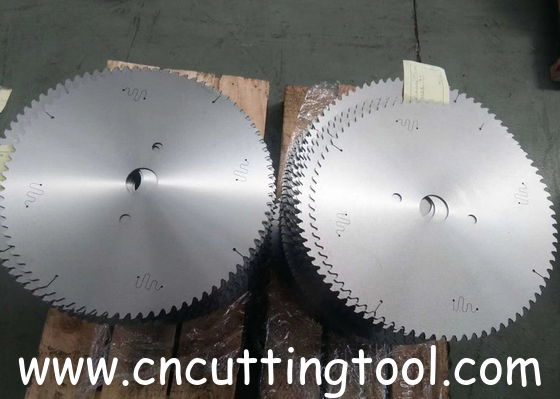

Various sectioned profiles cut circular tungsten carbide tipped saw blade

Various sectioned profiles cut circular tungsten carbide tipped saw blade

    • Various sectioned profiles cut circular tungsten carbide tipped saw blade
    • Various sectioned profiles cut circular tungsten carbide tipped saw blade
    • Various sectioned profiles cut circular tungsten carbide tipped saw blade
    • Various sectioned profiles cut circular tungsten carbide tipped saw blade
    • Various sectioned profiles cut circular tungsten carbide tipped saw blade
  • Various sectioned profiles cut circular tungsten carbide tipped saw blade

    Product Details:

    Place of Origin: China
    Brand Name: EFFEMAX
    Certification: No
    Model Number: TCT

    Payment & Shipping Terms:

    Minimum Order Quantity: 5pcs
    Price: 300-500 USD/PC
    Packaging Details: fumigation free wooden case
    Delivery Time: 30 days
    Payment Terms: T/T
    Supply Ability: 500pcs/m
    Contact Now
    Detailed Product Description
    Material: 8CrV Tips: Carbide
    Teeth Number: 140z Cutting Material: Metal
    Dia: 750mm

    Various sectioned profiles cut circular tungsten carbide tipped saw blade





    Using condition: Tungsten carbide circular saw blade is suitable for use at room temperature, with a dedicated cutting saw supporting the use of a cutting saw blade.



    Raw material: the TCT circular saw blade material is 8CrV, 75Cr1, 80CrV2 and other high-quality alloy tool steel through heat treatment, machining processes.



    To achieve good mechanical properties, in saw blade outer diameter with brazing fine particles or ultrafine particles carbide segments, and then through the precision tooth VOLLMER grinding machine grinding out the required tooth profile.



    Application: According to the different cutting parts, it is generally divided into tube cutting, tube row cutting, rail cutting, non-ferrous metal cutting, steel pipe CNC profiling sawing saw blade, ultra-thin fast cutting saw blade and so on.





    Tungsten carbide tipped saw blade for billet cut



    Diameter Cutting width Body thickness Center Hole Diameter of Pin Hole PCD of Pin Holes Number of Teeth
    830 6.5 5.0 100 30 200 80,100
    1020 7 5.5 100 30 200 100,120
    1250 7 5.5 100 30 250 150,160
    1400 8 6.5 100 30 300 160,180
    1650 10 8.5 100 42 420 160,200
    1800 10.5 9.0 100 42 420 180,240



    Tungsten carbide tipped saw blade for Non-ferrous metal cut

    Diameter Cutting width Body thickness Mounting holes Diameter of Pin Hole PCD of Pin Holes Number of Teeth
    500 3.8 2.8 32 12 100 80
    610 5.2 4.2 50 15 120 90,120
    700 6.5 4.5 80 18 180 64,72
    800 7.0 5.5 80 15 150 100,120
    810 7.0 5.0 80 20 200 60,72
    1000 8 6.5 100 18 200 120,160
    1000 7.5 5.5 100 20 220 72,80
    1200 8.5 6.5 100 22 250 80,100
    1250 8 6.5 100 22 250 180,200
    1400 8.5 7 100 22 250 200,220
    1560 9.5 8 120 25 280 220,240
    1600 10.5 8.5 200 25 300 72,80
    1800 14.5 10.5 240 30 350 60,72
    1800 10 8.5 150 30 300 230,250
    2000 15 11 240 30 350 70,100
    2200 15.5 11.5 240 30 350 90,120



    Tungsten carbide tipped saw blade for CNC profiling machine

    Diameter Cutting width Body thickness Mounting holes Diameter of Pin Hole PCD of Pin Holes Number of Teeth
    300 3.8 3.0 80 17 160 40,45
    340 4.0 3.2 80 17 160 52,64
    355 3.8/4.0 3.0/3.2 80 17 160 64,72
    380 4.0/4.2 3.2/3.3 115 20 200 52,84
    400 4.2 3.2 115 20 200 52,80
    450 5.5 4.5 115 20 200 52,72

    Various sectioned profiles cut circular tungsten carbide tipped saw blade

    Various sectioned profiles cut circular tungsten carbide tipped saw blade

    Various sectioned profiles cut circular tungsten carbide tipped saw blade
